MIDSECTION

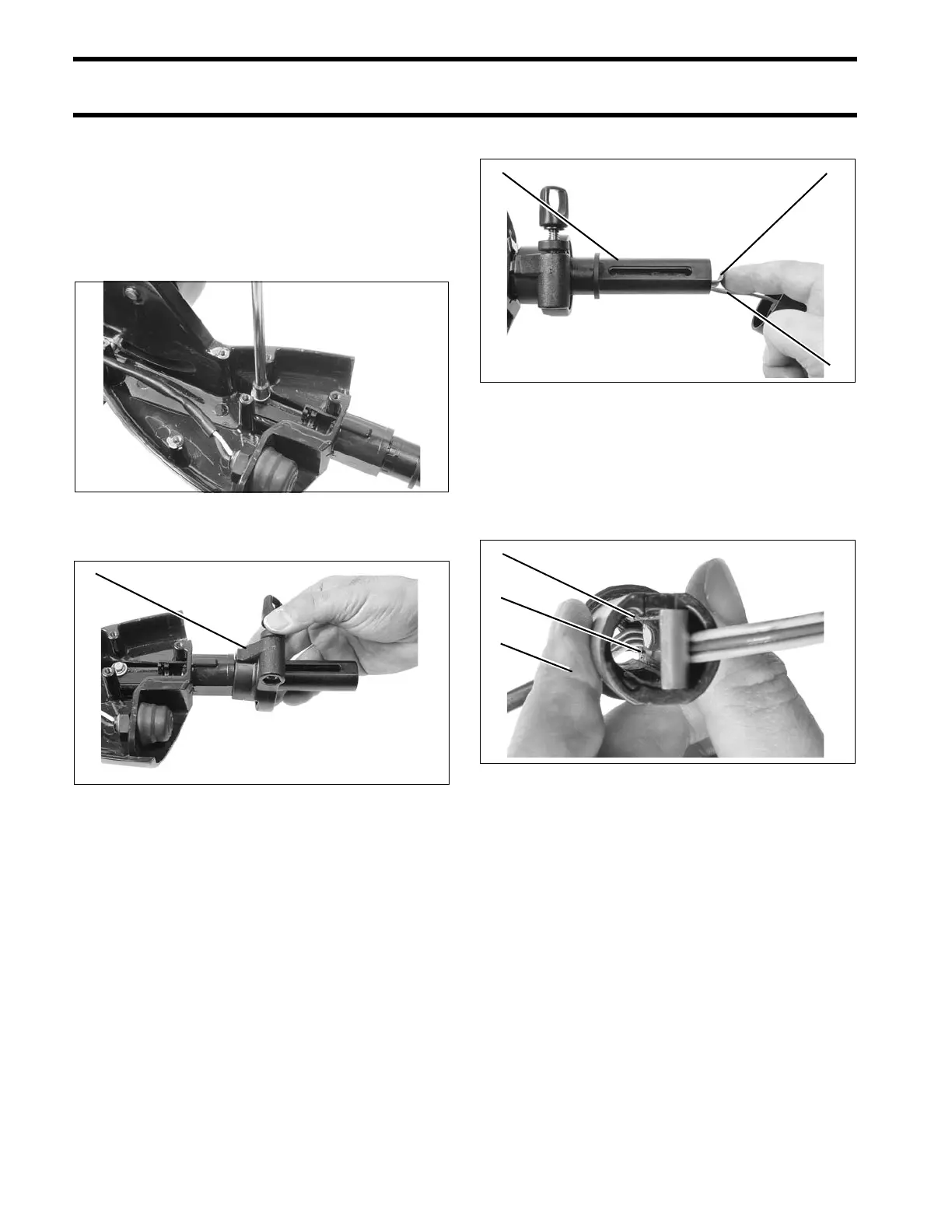

TILLER HANDLE SERVICE – LONG HANDLE
IMPORTANT: Turn self-tapping screw counter-
clock-wise until threads of screw engage threads
of screw boss. Failure to follow this procedure will
damage the screw boss threads. Once threads
are engaged, tighten screw so that there is no
space between tab, washer and screw. Top of tab
MUST be flush with top of flange.
Install the throttle control plate on outer handle.
Install trim switch wiring through inner steering
handle.
IMPORTANT: Trim switch wiring must NOT be
twisted through the throttle twist grip or inner tiller
handle / wire guide.
Insert wire guide into inner steering handle.
Wire guide should slide easily into place. If any
binding is felt, inspect trim switch wiring for twist-
ing. If wire guide is forced into place, it WILL dam-
age trim switch wiring.
006681
1. Throttle friction control 006671
1
1. Inner tiller handle
2. Wire guide
3. Trim switch wires
006726
1. Inner tiller handle
2. Wire guide
3. Trim switch wires
006684
2
3
1
2
3
1
2
3
