TRIM AND TILT
TRIM AND TILT SERVICE

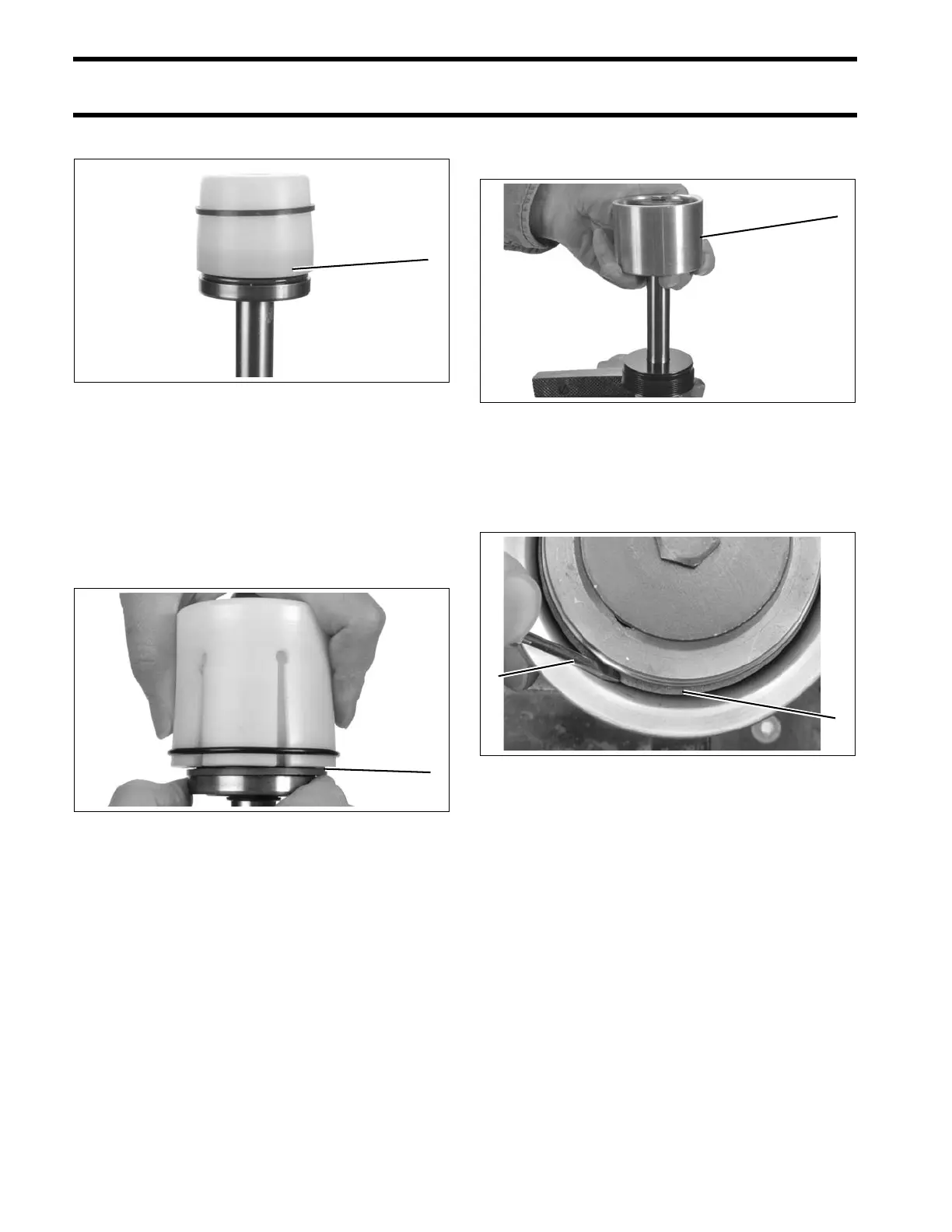

Place the seal on the loading mandrel.
Slowly move the seal pusher down the mandrel.
Use the seal pusher to slide the seal into the
groove of the piston.
IMPORTANT: Prevent the seal from sliding past
the seal groove. Position one hand even with the
bottom of the seal groove as shown. The seal can
be damaged if it slides past the seal groove.
Remove the pusher tool, loading mandrel, and
shim from the piston.
Lift the resizing fixture up over the piston as
shown.
Lift resizing fixture over the seal while observing
the seal. Use a blunt edged tool to hold the seal in
position if any portion of the seal moves out of the
groove of the piston.
Continue lifting the resizing fixture until the bottom
of the resizing fixture is flush with the piston as
shown.
1. Seal 008833
1. Seal installed in groove of piston 008834
1
1
1. Resizing fixture 008835
1. Tool
2. Seal
008836
1
2
1
