BRP EVINRUDE E-TEC E90DSLAA Series User Manual

359
TRIM AND TILT
TRIM AND TILT SERVICE
13
Leave the resizing fixture in place for at least five
minutes.
Remove the resizing fixture from the piston.
Inspect the seal. Make sure the seal was not dam-
aged during installation.
Remove the cylinder rod assembly from holder
and lubricate the piston assembly with trim/tilt
fluid.
Slide the end cap assembly to the eyelet of rod.
Reinstall the fill plug.
Place the piston into the cylinder of the trim and tilt
assembly. Carefully push the rod and piston
assembly into the cylinder until the end cap just
clears the cylinder top. Leave enough room to
pour fluid into the cylinder. Fill the cylinder with
Power Trim/Tilt & Steering Fluid. Failure to fill the
cylinder could cause difficulty purging air from the
trim and tilt assembly.
Use end cap spanner wrench, P/N 352932, to
install the end cap. Tighten to a torque of 60 to 85
ft. lbs. (81 to 115 N·m).
Raise the trim and tilt assembly to the full UP posi-
tion. Remove the fill plug and check the fluid level.
Fill until fluid runs out of the fill hole of the mani-
fold. Cycle the tilt and trim assembly up and down
several times. Recheck level until fill.
Installation
Refer to Installation on p. 350 for trim and tilt
assembly installation procedure.

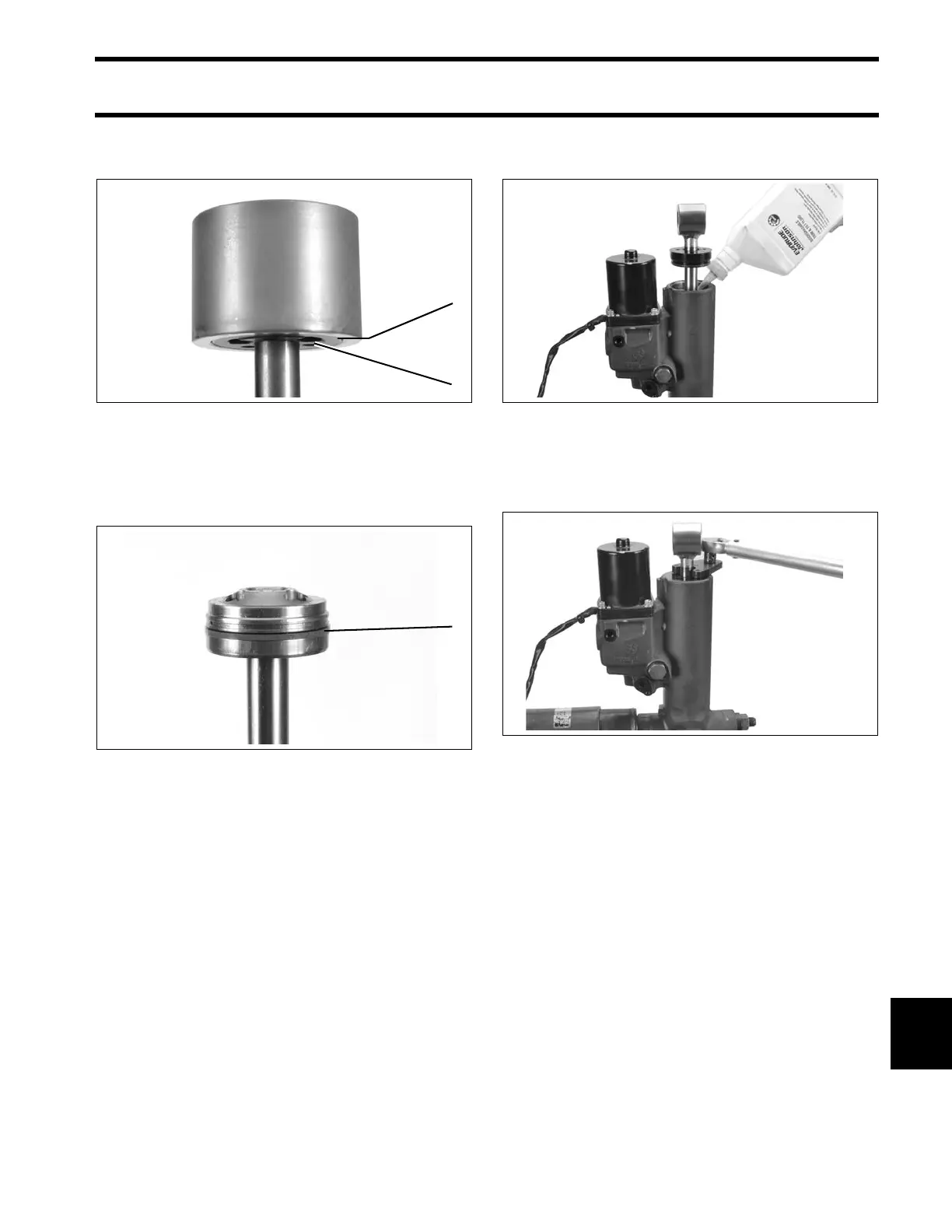

1. Bottom of the resizing fixture flush with the piston
2. Piston
008837
1. Seal 008838
1
2
1
008839
008840
