Design and Function

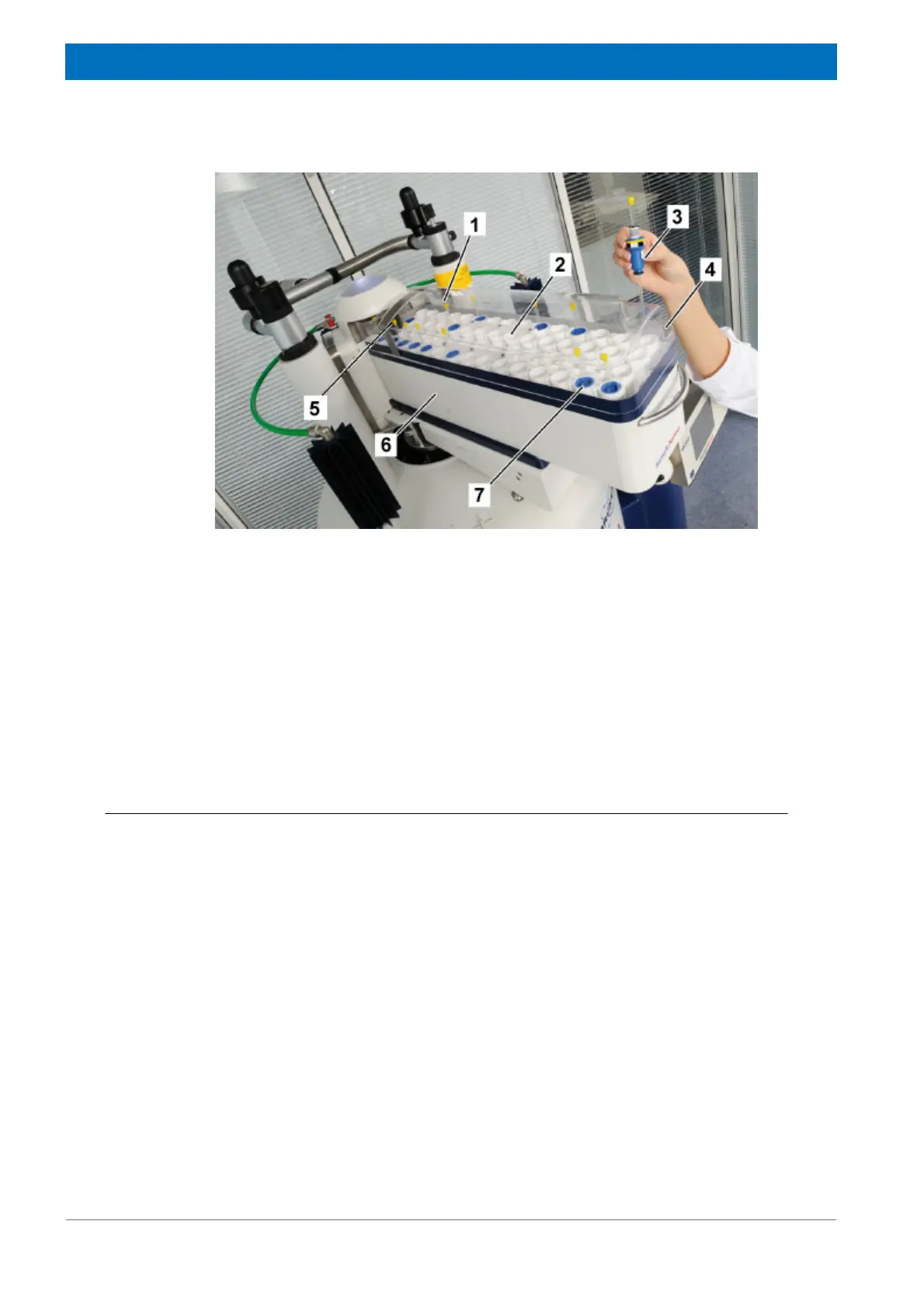

Figure 5.2 Overview
5.2 Brief Description
The SampleXpress sample changer allows the automatic measurement of samples in
connection with a spectroscopy magnet. The samples are inserted into the magnet by
the SampleXpress, and are stored in a removable cassette. Thereby it is possible to
remove the cassette for filling/removing samples. The cassette has a capacity of 60
samples. Operation of the unit is controlled by the application software.
The SampleXpress will not automatically move an actor during a running NMR measure-
ment, unless it is desired by the operator, e.g. to move to another position.
1. Cassette Cover
2. Sample Conveyor Chain
3. Spinner with Sample
4. Operator Access Position
5. NMR Access Position
6. Cassette
7. Sample Pool
