Design and Function
Sample Guide

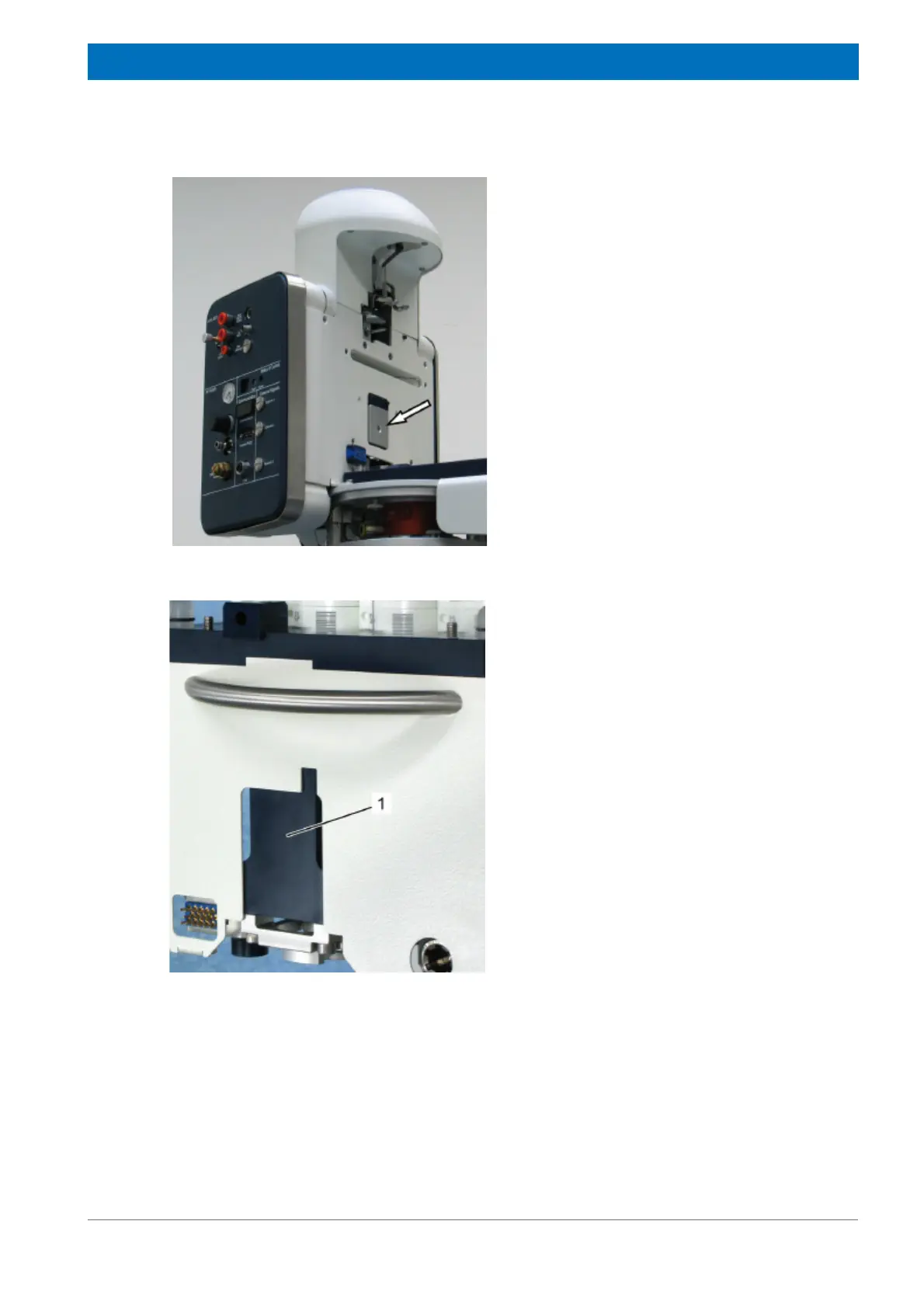

Figure 5.6 Sample Guide
The sample guide serves to guide the
samples into the magnet. As the samples
drop down from the cassette into the mag-
net, they have to be safely led into the
proper position.
The sample guide is driven by a pneu-
matic cylinder placed in the base unit. The
pneumatic cylinder fits into the opening in
the rear side of the cassette (Figure 5.7).
In this opening there is a movable half
shell and a fixed half shell, which interact
with the sample guide.
Figure 5.7 Cassette
