76
Z31900_00_01
Operation

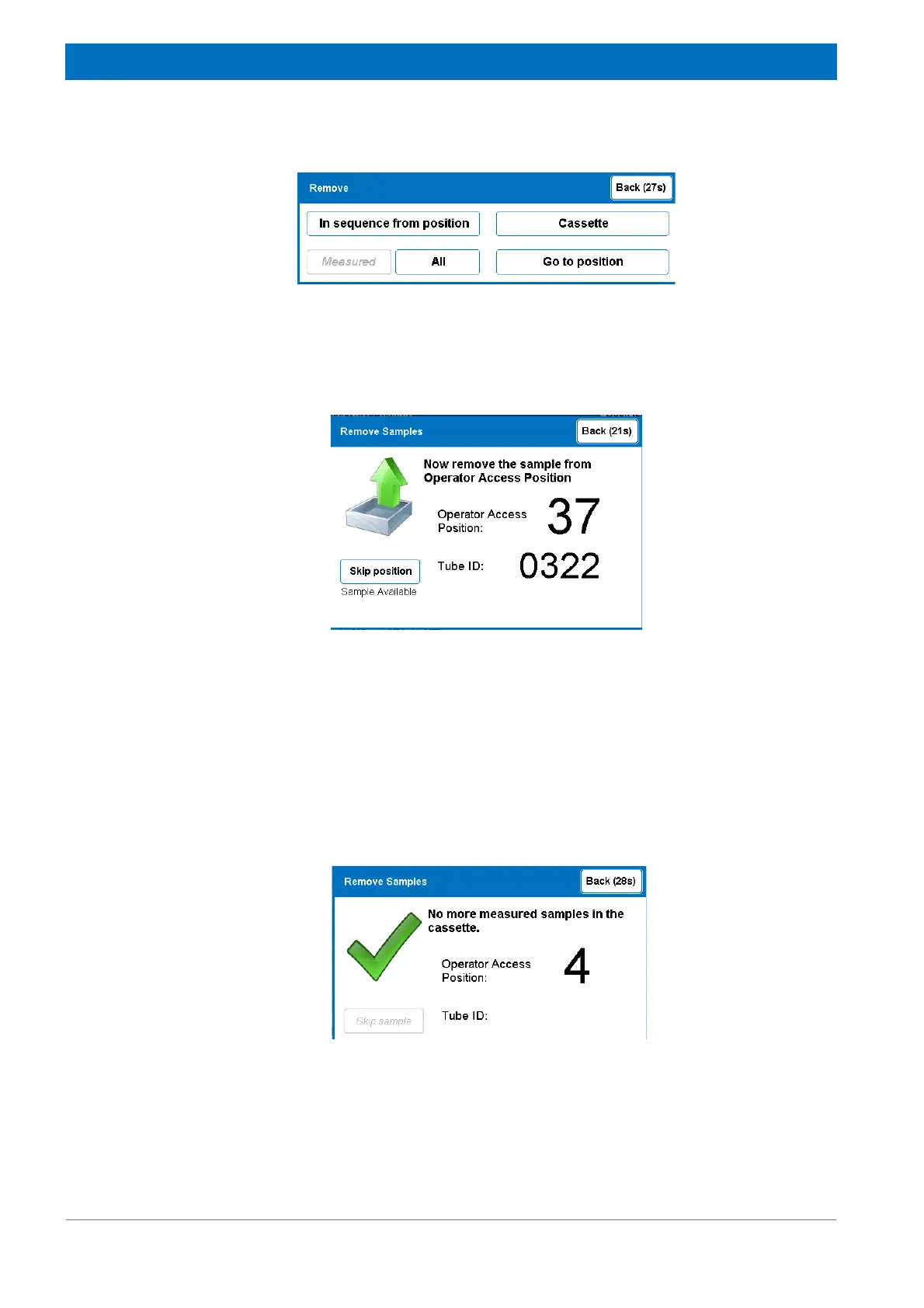

Figure 9.27 Remove All
2. Press the All button.
The chain rotates to the next position filled with a sample and a message is dis-
played:
Figure 9.28 Removing the sample
3. Remove the sample.
The chain rotates to the next position filled with a sample.
This procedure will be repeated, until all samples are removed from the cassette. To skip
a sample, press the Skip position button.
When all samples have been removed, a message is displayed that no more samples
are in the cassette (apart from any skipped samples):
Figure 9.29 No more samples in the cassette
4. Press the Back button to return to the main menu.
