Buell 2002 P3 - Page 121

2-46 2002 Buell P3: Chassis
HOME
12. Coat dust seal, oil seal spacer, and backup ring with fork
oil or sealing grease.
13. See Figure 2-79. Install oil seal spacer and backup ring.
14. See Figure 2-80. Using FORK SEAL DRIVER (Part No.
B-43991), drive the guide bushing with the oil seal
spacer and oil seal into position in the slider assembly.
15. See Figure 2-81. Install retaining ring. Verify ring is under
groove inside slider assembly.
16. See Figure 2-82. Install new dust seal onto slide pipe.

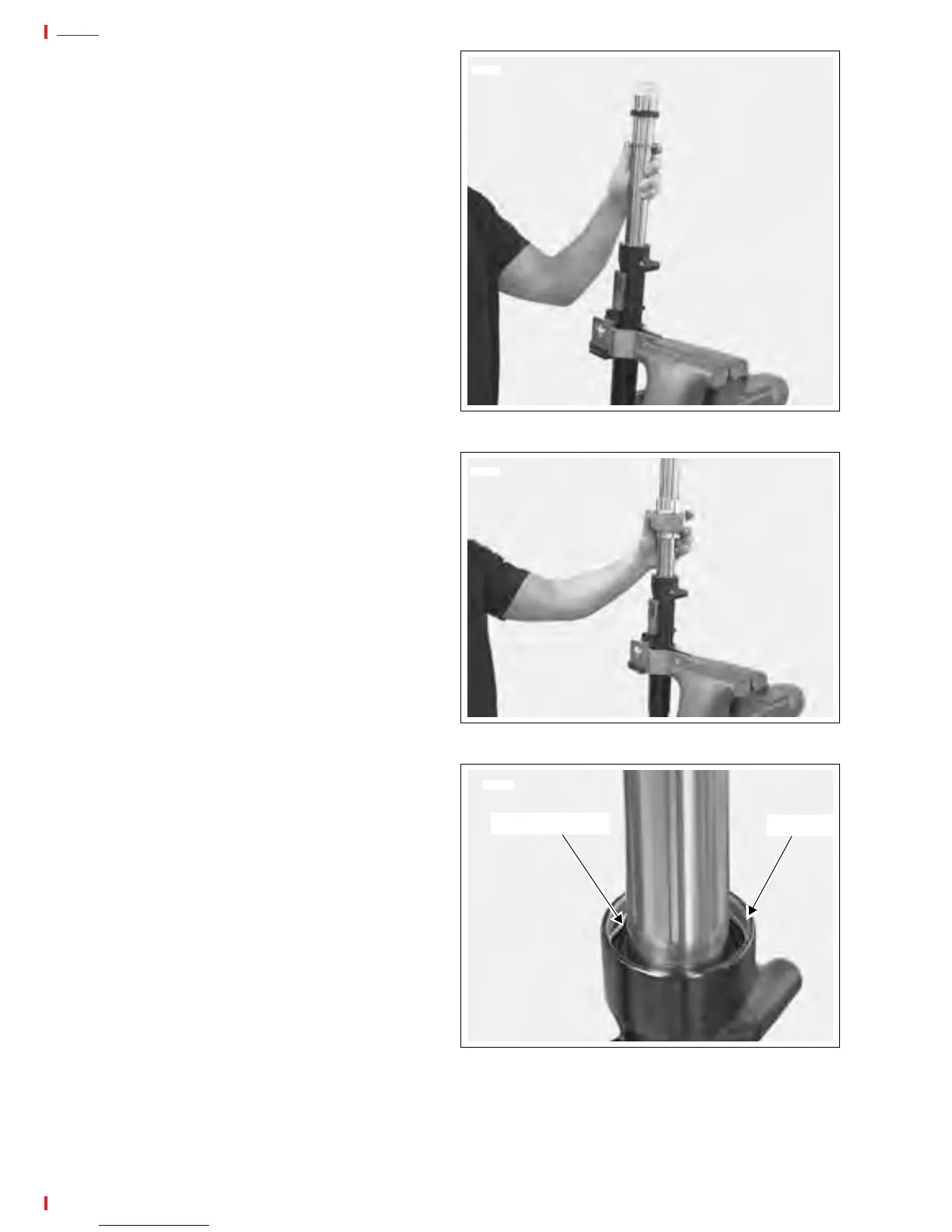

Figure 2-79. Oil Seal and Backup Ring
Figure 2-80. Fork Seal Driver
Figure 2-81. Install New Retaining Ring
3785
3787
3786
Retaining Ring
Groove
