2002 Buell P3: Electrical 7-9
HOME

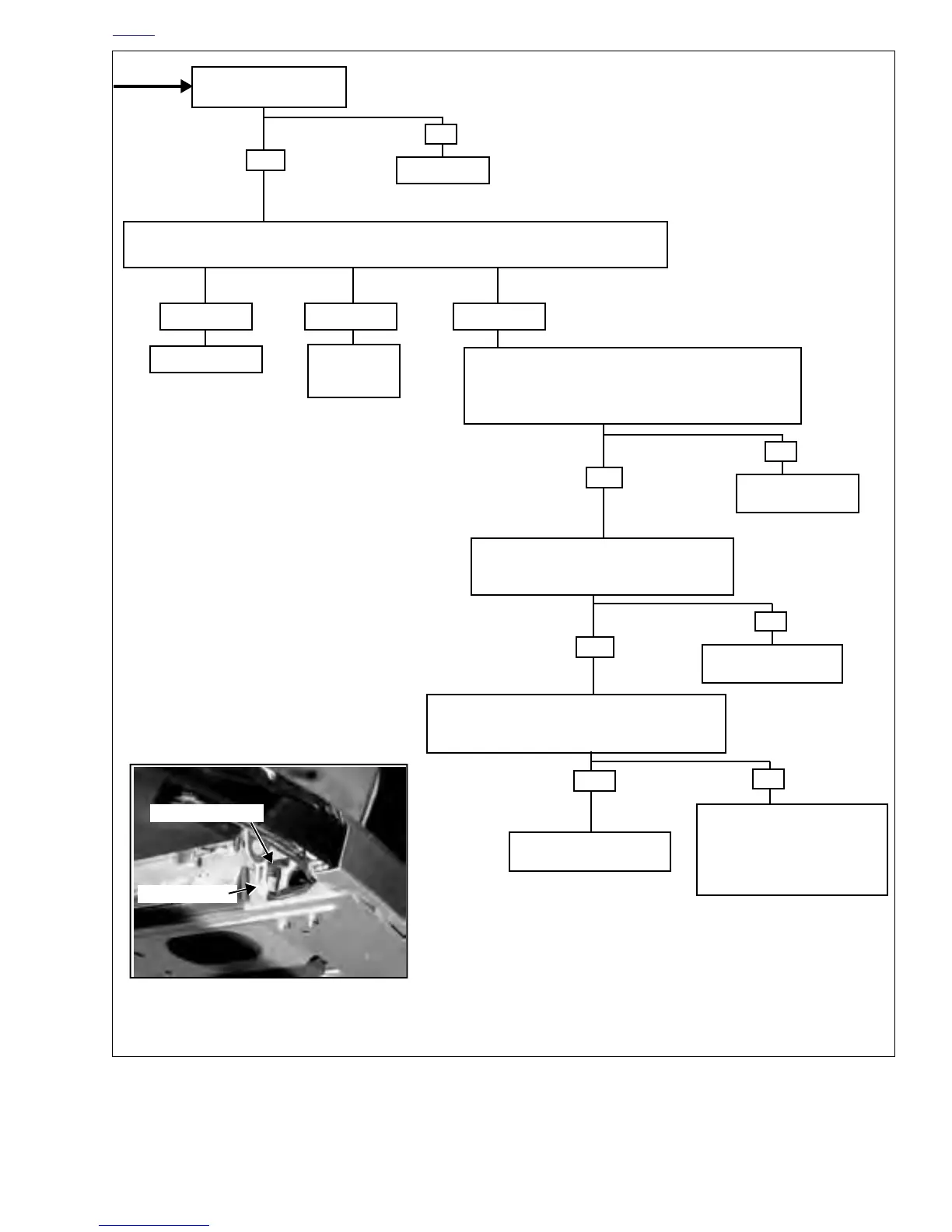

Figure 7-7. Continuous or No Spark At Spark Plug
YES
NO
Is Bank Angle Sensor
Connected?
Reconnect.
Disconnect Connector [134].
Measure Voltage On [134B] Between Socket A, LT GN/GY And Socket B, BK
3.0-3.5 VDC 11-13 VDC 0 VDC
See Next Page
Repair Short
On LT GN/
GY Wire.
5007
YES
NO
Repair Open In
LT GN/GY Wire.
5007
Disconnect Connector [10]. Check Continuity
Between Socket A, LT GN/GY On Connector [134B]
And Socket 5, LT GN/GY On Connector [10B].
Continuity Present?
YES
NO
See Starter Interlock
Section 7.11.
Check Continuity To Ground On LT GN/GY
Wire, Socket A, Connector [134B] Or [10B].
Is Continuity Present?
5007
Check Continuity To Ground On TN/Y
Wire, Socket B, Connector [134B].
Is Continuity Present?
YES
NO
Inspect Module Harness For
Damage. Repair If Neces-
sary.
If Harness Is Not Damaged,
Replace Ignition Module.
5009
Repair Short To Ground
On LT GN/GY Wire.
5007
* To avoid damage to terminals,
remove Bank Angle Sensor
before disconnecting connector
[134]. Use Harness Connector
Adapter Kit HD-41404,Gray
male probe and patch cord
Bank Angle Sensor
Connector [134]
