45
24VDC - Design

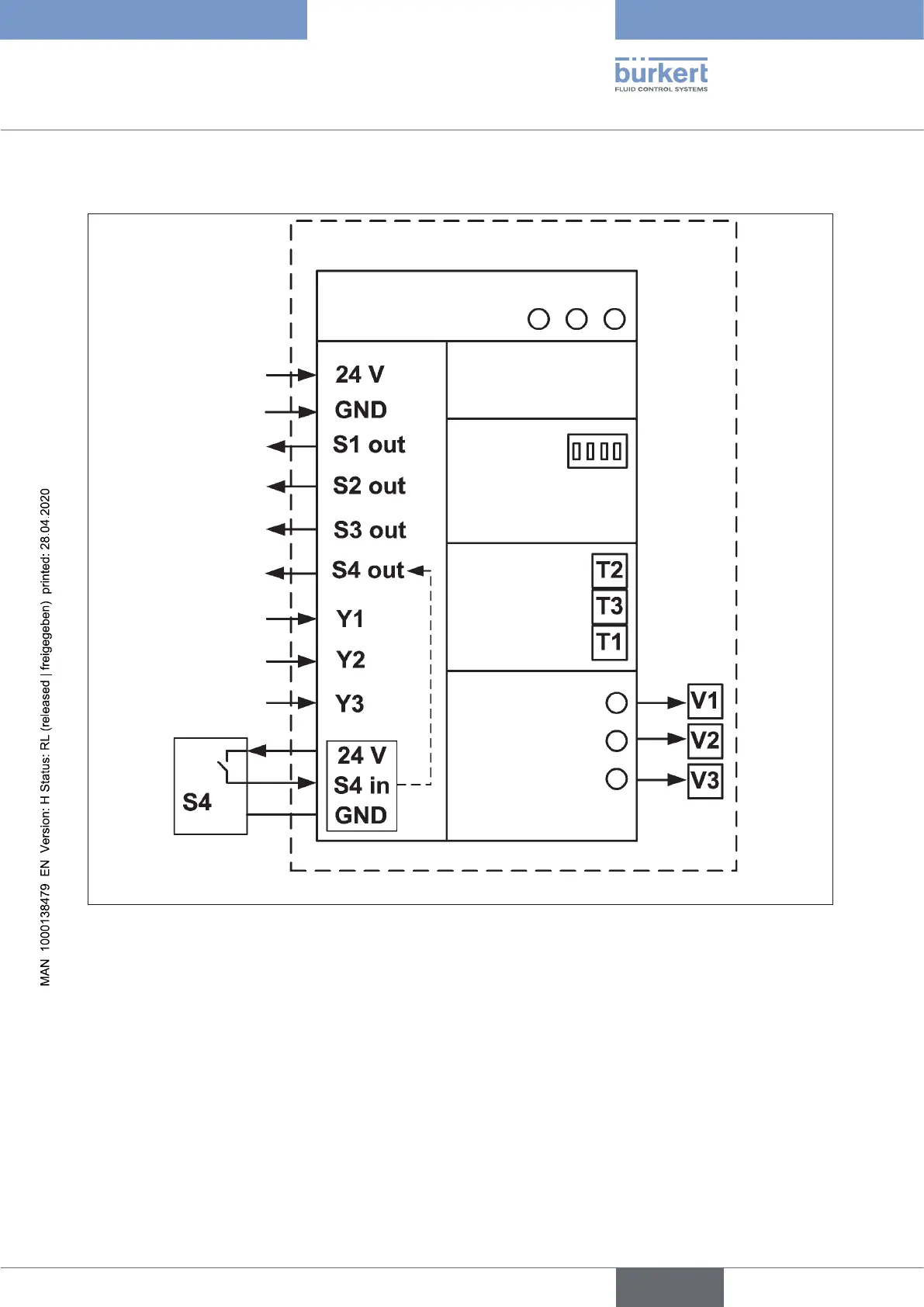

Circuit diagram 24 V DC:
Valve
actuation /
control LEDs
for valves
Teach
buttons
DIP switch
for LEDs
Service interface
Position measuring
system with LEDs
Power supply
24 V DC
Ground
Output position 1
(0/24V,PNP)
Output position 2
(0/24V,PNP)
Output position 3
(0/24V,PNP)
Output ext. initator
(0/24V,PNP)
Input solenoid valve 1
(0/24V)
Input solenoid valve 2
(0/24V)
Input solenoid valve 3
(0/24V)
Electronics
Valve 1
Valve 2
Valve 3
Fig. 16: Circuit diagram 24 V DC
english
Control Head Type 8681
