Canon MF726Cdw - Page 122

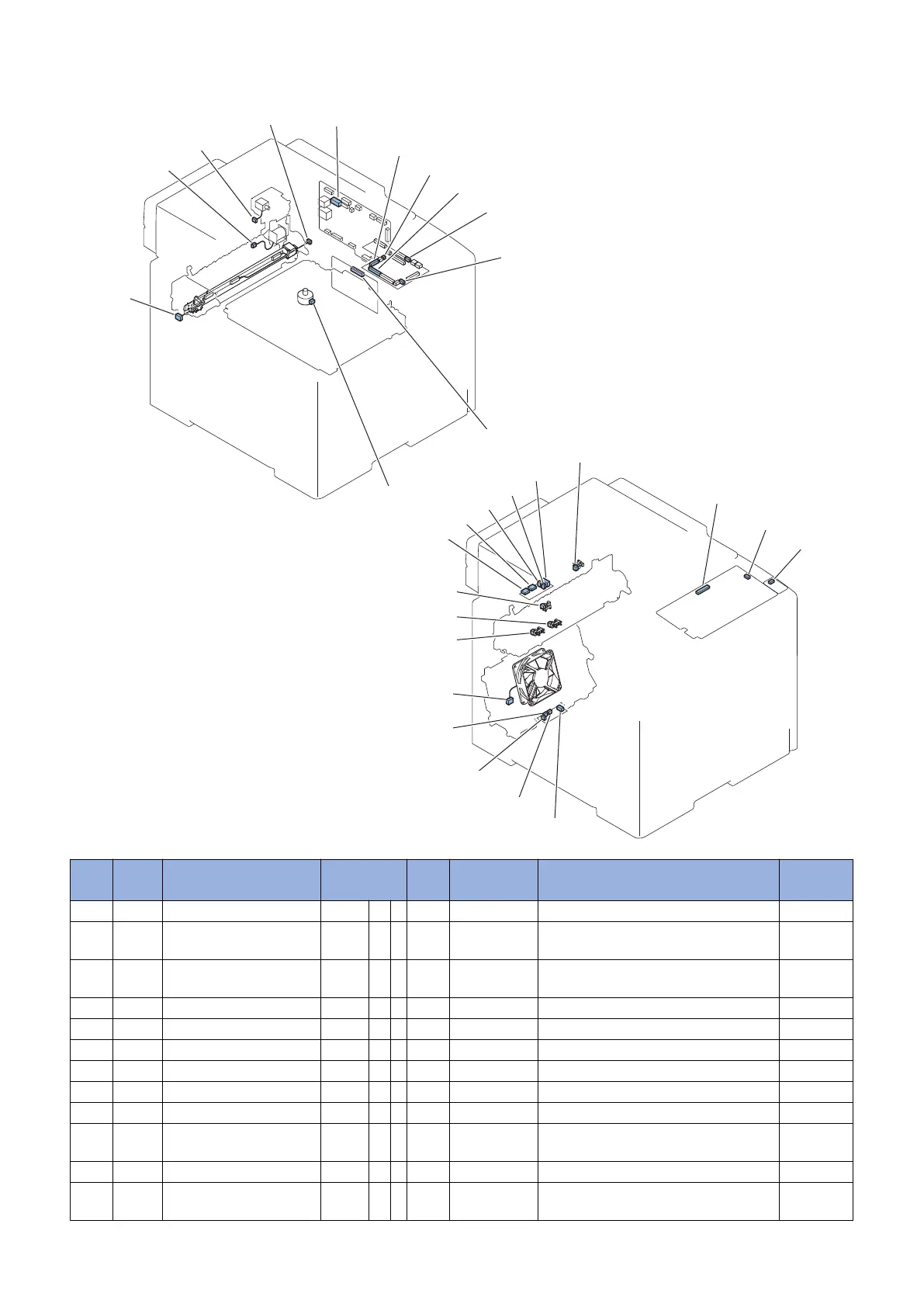

■ 5/5
J703
J704
J709
J4001
J924
J150
J157
J152
J131
J132
J2007
J501
J704
J705
J703
J705
J706
J701
J3014
J3013
J3012
J709
J710
J707
J708
J951
J961
J956
J4018
J No. Sym-
bol
Name Relay con-
nector
J No. Symbol Name Remarks
J131 UN1 DC Controller PCB J501 UN4 Laser Driver PCB
J132 UN1 DC Controller PCB J200
7
M7 Laser Scanner Motor
J150 UN1 DC Controller PCB J4001 J400
1
TH801,
TH802
Main Thermistor, Sub Thermistor 1
J150 UN1 DC Controller PCB J707 UN6 Fixing Relay PCB
J152 UN1 DC Controller PCB J701 UN10 Duplex Driver PCB
J157 UN1 DC Controller PCB J706 UN6 Fixing Relay PCB
J703 UN10 Duplex Driver PCB J703 SL5 Duplex Reversal Solenoid
J704 UN10 Duplex Driver PCB J704 CL2 Duplex Feeding Clutch
J705 UN10 Duplex Driver PCB J705 FM2 Duplex Feeding Fan
J708 UN6 Fixing Relay PCB J401
8
SR15 Delivery Full Sensor
J709 UN6 Fixing Relay PCB J709 TH803 Sub Thermistor 2
J710 UN6 Fixing Relay PCB J301
2
SR10 Fixing Loop Sensor
4. Disassembly/Assembly
114
