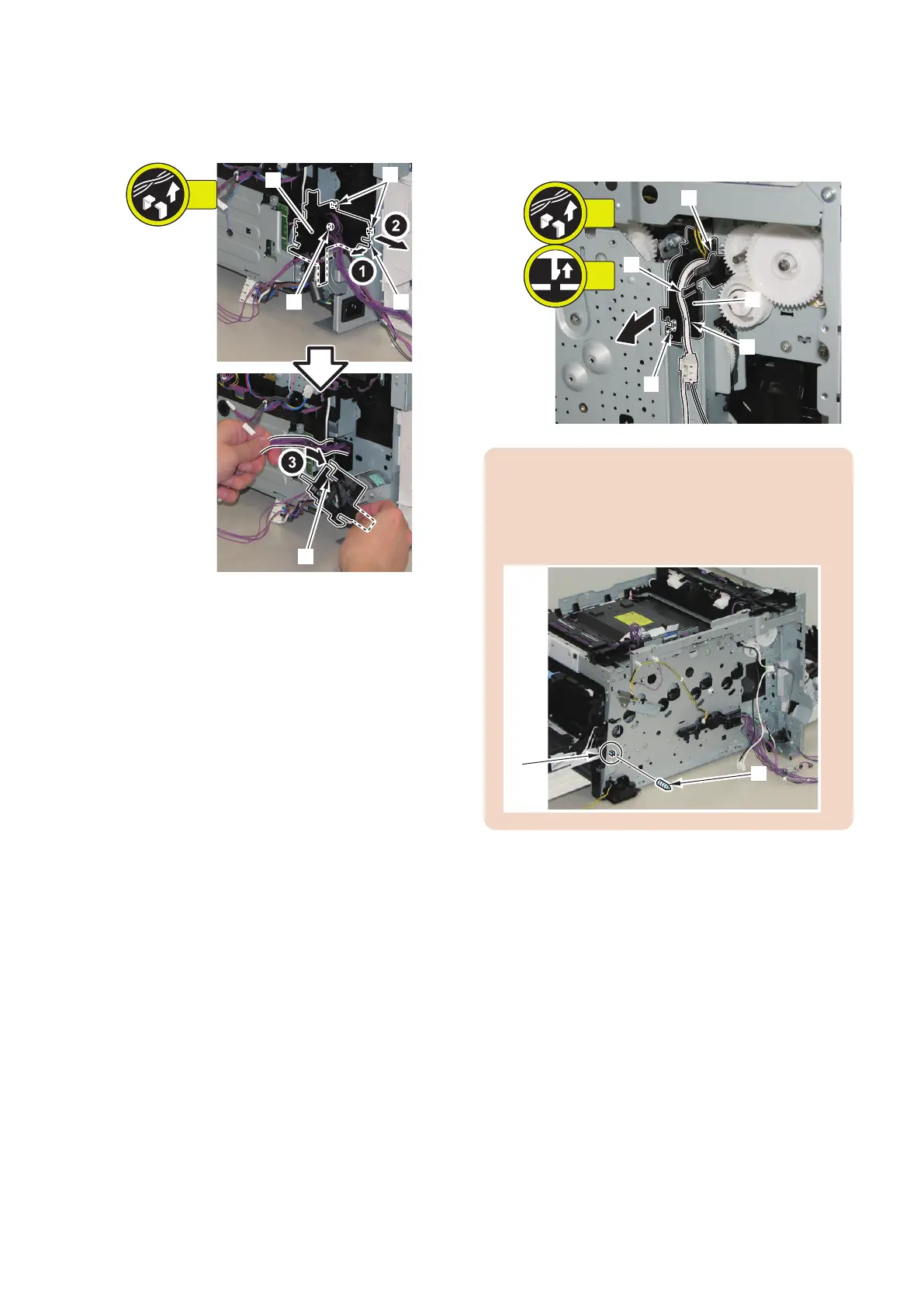

14. Remove the Harness Guide [1].
• Harness Guide [A]
• 2 Boss [2]
• 2 Hooks [3]
[A]
[1]
[2]
[3]
[2]
1x
15. Remove the wire harness [1] from the wire harness
guide [2], and remove the wire harness guide [2] in
the arrow direction.
• 1 Claw [3]
• 2 Fixing Guides [4]
[4]
[4]
[3]
[1]
[2]
2x
1x
CAUTION:
When removing the Main Drive Unit, the Contact
Spring [1] may come off so be sure not to lose it. When
it comes off, attach it on the protrusion [A] on the plate
at the right side of the host machine.
[A]
[1]
