Canon MF726Cdw - Page 194

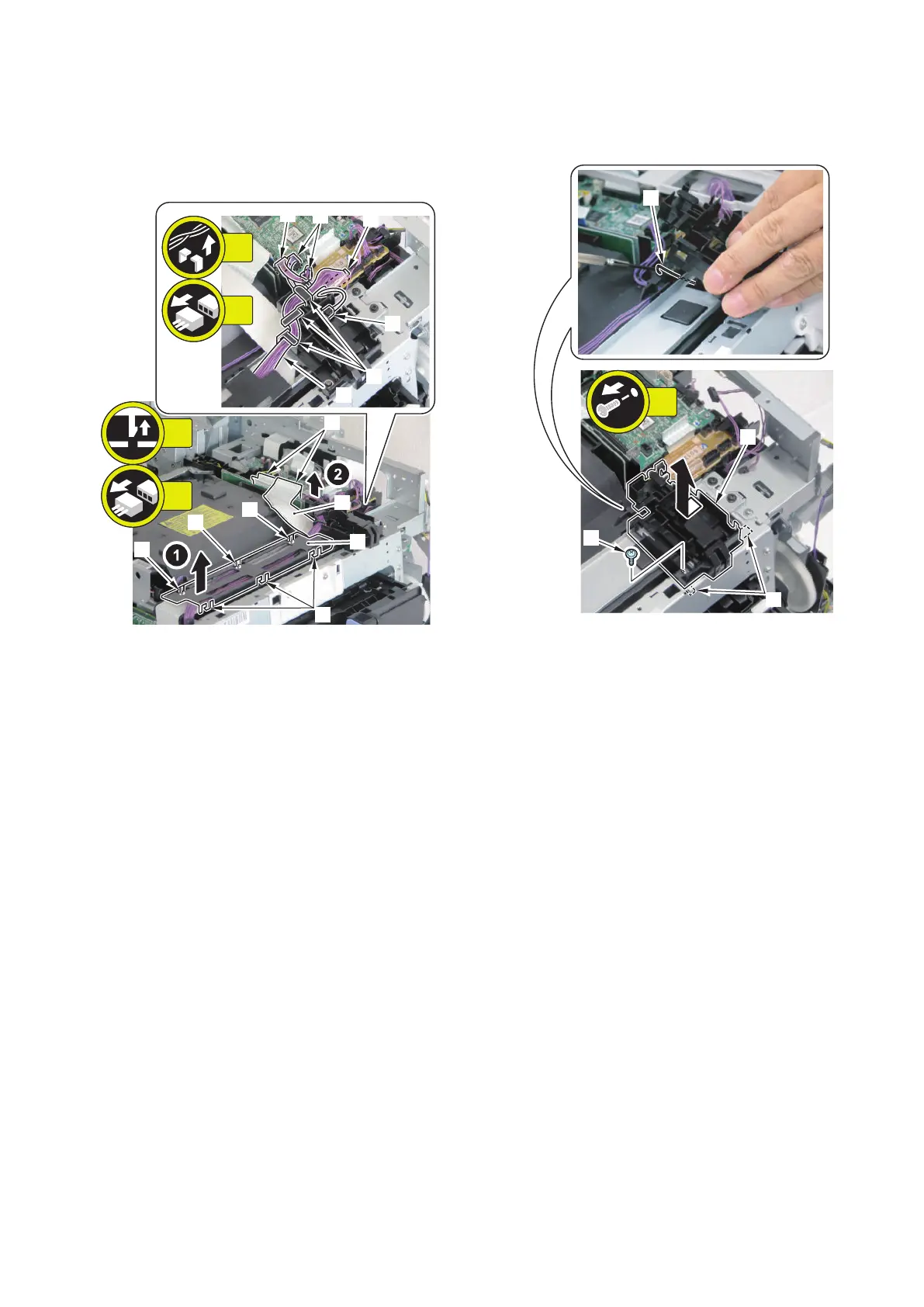

2. Remove the Harness Guide [1] and free the harness
[2] and the Flat Cable [3].
• 2 Flat Cables [4]
• 5 Connectors [5]
• 3 Fixation Guides [6]
• 6 Claws [7]
[7]
[6]
[5]
[5]
[1]
[3]
[4]
[2]
[5]
[5]
[7]
[7]
[7]
6x
2x
5x
3x
3. Remove the Harness Guide [1].
• 1 Screw [2]
• 1 Spring [3]
• 2 Hooks [4]
[1]
[4]
[2]
[3]
1x
4. Disassembly/Assembly
186
