Aggregating Ports
Configuring LACP
ESW 500 Series Switches Administration Guide 421
18

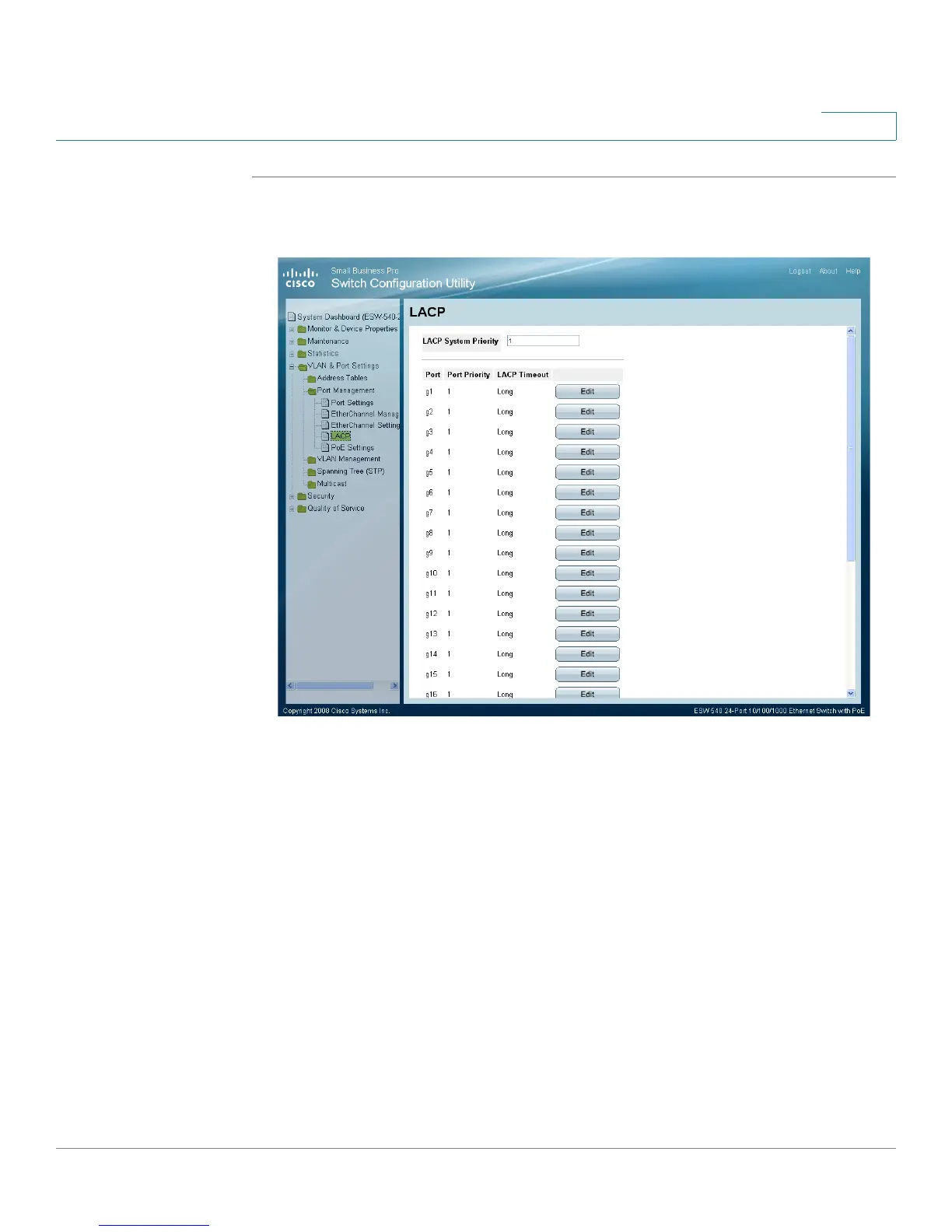

STEP 1 Click VLAN & Port Settings > Port Management > LACP. The
LACP Page
opens:
LACP Page
The
LACP Page
contains fields for configuring LACP EtherChannels.
• LACP System Priority — Indicates the global LACP priority value. The possible
range is 1- 65535. The default value is 1.
• Port — Defines the port number to which timeout and priority values are
assigned.
• Port Priority — Defines the LACP priority value for the port. The field range is 1-
65535.
• LACP Timeout — Administrative LACP timeout. The possible field values are:
-
Short
— Defines a short timeout value.
-
Long
— Defines a long timeout value. This is the default value.
STEP 2 Define the relevant fields.
STEP 3 Click Apply. The LACP EtherChannels are defined, and the device is updated.
