Chapter 8 Raw Data Formatting: The RDR Formatter and NetFlow Exporting
Configuring Data Destinations and Categories
Example 5
Finally, the following example illustrates a configuration with three categories and three destinations, as
follows:
• Category 1: 'Billing", RDRv1 protocol, goes to Destination 1
• Category 2: "Prepaid", RDRv1 protocol, goes to Destinations 1 and 2
• Category 3: "Special Prepaid", NetFlow V9 protocol, goes to Destination 3, RDRv1 protocol goes
to Destination 2

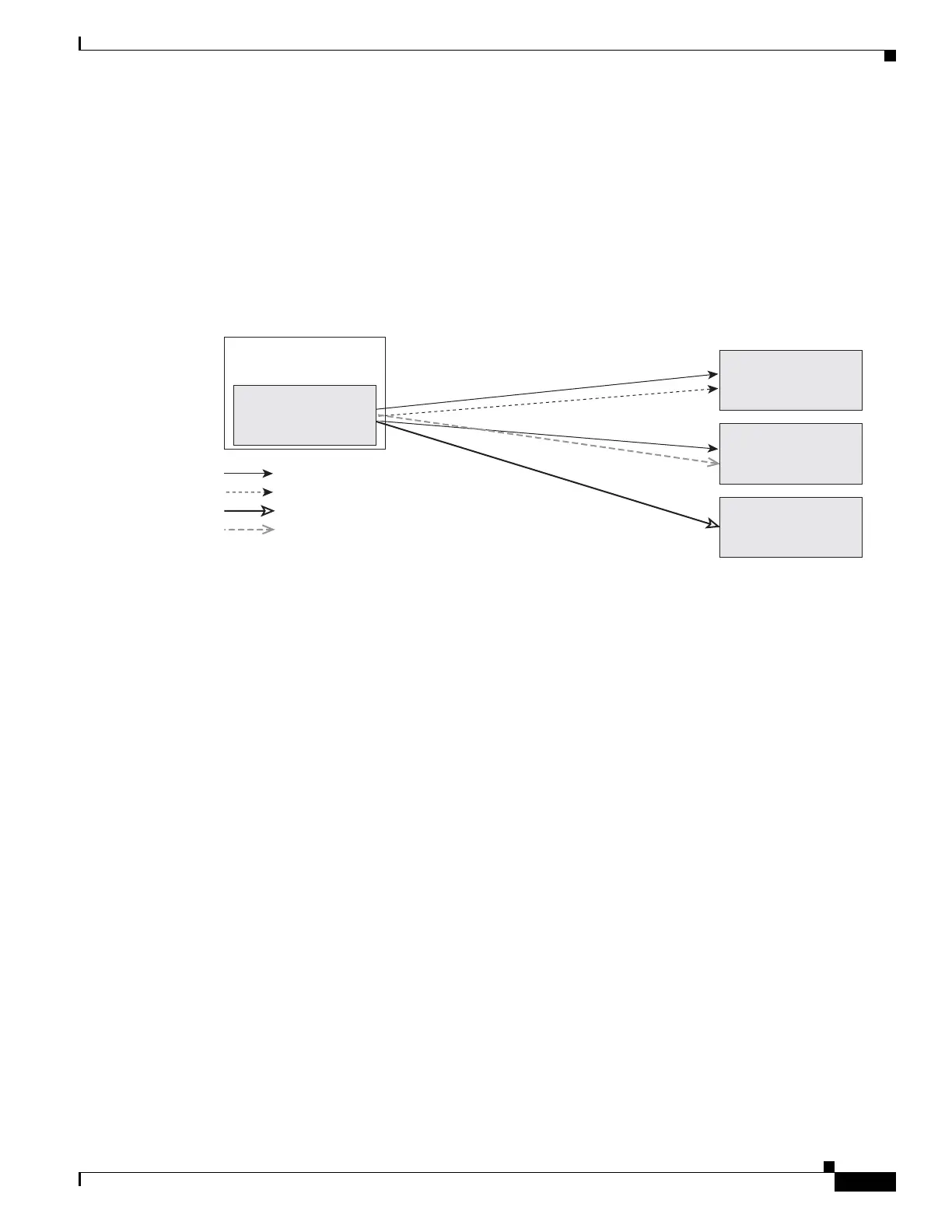

Figure 8-6 Configuring Destinations: Three Categories and Two Protocols
SCE(config)# rdr-formatter forwarding-mode multicast
SCE(config)# rdr-formatter category number 1 name billing
SCE(config)# rdr-formatter category number 2 name prepaid
SCE(config)# rdr-formatter category number 3 name special-prepaid
SCE(config)# rdr-formatter destination 10.1.1.205 port 33000 category name billing
priority 90 category name prepaid priority 80 protocol RdrV1 transport tcp
SCE(config)# rdr-formatter destination 10.10.10.96 port 33000 category name prepaid
priority 90 category name special-prepaid priority 80 protocol RdrV1 transport tcp
SCE(config)# rdr-formatter destination 10.1.1.206 port 33000 category name special-prepaid
priority 90 protocol NetFlowV9 transport udp
"Billing"
"Prepaid"
"Special Prepaid" Netflow
"Special Prepaid" RDRv1
210796
Destination 2
Destination 3
Destination 1
RDR Formatter
SCE platform
