SD module
“Time” Time of logbook entry
"5/11" 5 of 11 entries in this logbook
“Component” Freely selected component name
"Job" Job number and job name
"Period" Welding period
In the case of several jobs within a weld seam, the seam
is divided in several sections (section1, section2 etc.). The
display always shows the total period from weld start to
weld end of one section.

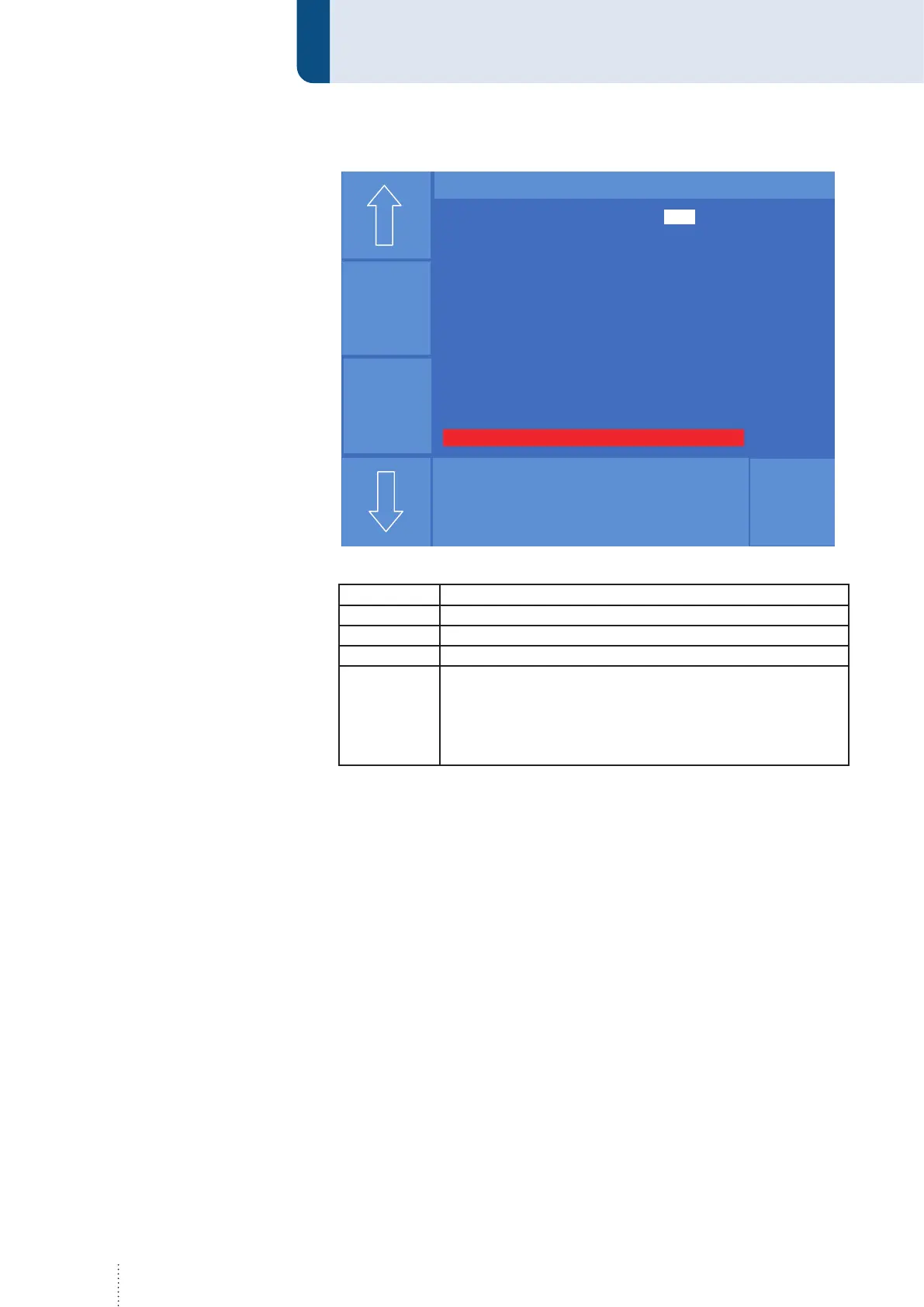

Figure 76. Logbook entry
