Use the “Error details” function to call up a detailed error description, see
Figure 77.
“Moment” Moment of error in the weld seam
“Duration” Error duration
If during welding a limit value of the activated monitoring channel is
exceeded but returns to the tolerance range, a new error message is gener-
ated.
By turning the middle rotary knob you will get to the next error channel.

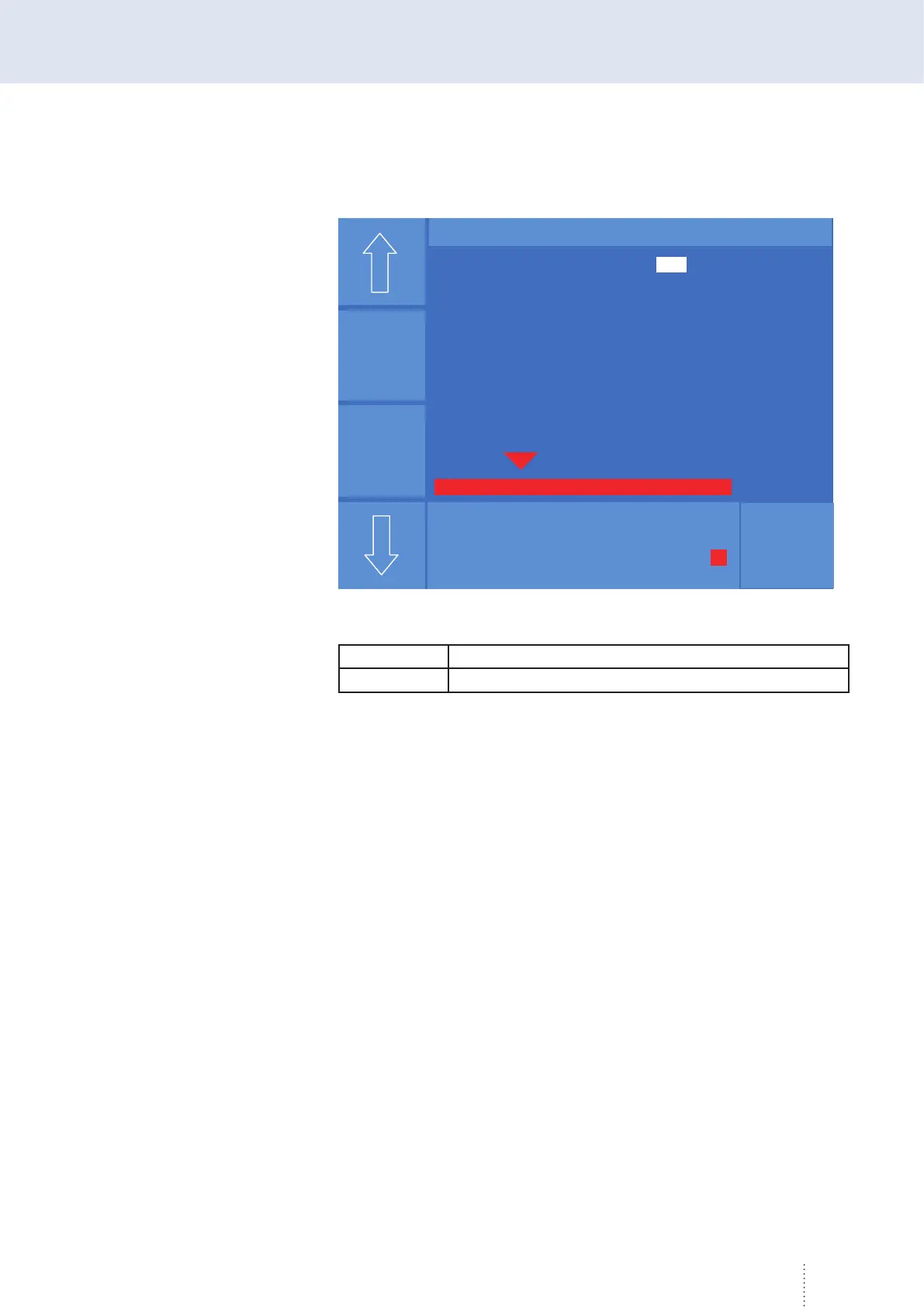

Figure 77. Error details
Normal 4 -Takt
V
0
A
1.2 mm Fe
82% Argon 18% Co
2
0.0
13.12.2010 F E H L E R
Uhrzeit: 10:35:47 1 / 2
Bauteil: Unterbodengruppe Naht: 12
Zeitpkt : 4.8 Sec
Dauer : 1,8 Sec
Drahtvorschub
Grenzwert Max : 12,4 m/min
Grenzwert Min : 10,4 m/min
Logbuch
Auswahl
Istwert : 9,2 m/min
Fehler-
details
SD
Normal 4 -Takt
V
0
A
1.2 mm Fe
82% Argon 18% Co
2
0.0
Normal 4 -Takt
V
0
A
1.2 mm Fe
82% Argon 18% Co
2
0.0
13.12.2010 F E H L E R
Uhrzeit: 10:35:47 1 / 2
Bauteil: Unterbodengruppe Naht: 12
Zeitpkt : 4.8 Sec
Dauer : 1,8 Sec
Drahtvorschub
Grenzwert Max : 12,4 m/min
Grenzwert Min : 10,4 m/min
Logbuch
Auswahl
Istwert : 9,2 m/min
Fehler-
details
SD
