1.8. cvolution slider
The cvolution slider is an extension module for the cvolution hand unit. Up to three sliders can
be attached to the main unit. sliders are commonly used to control iris, interaxial or convergence
motors.

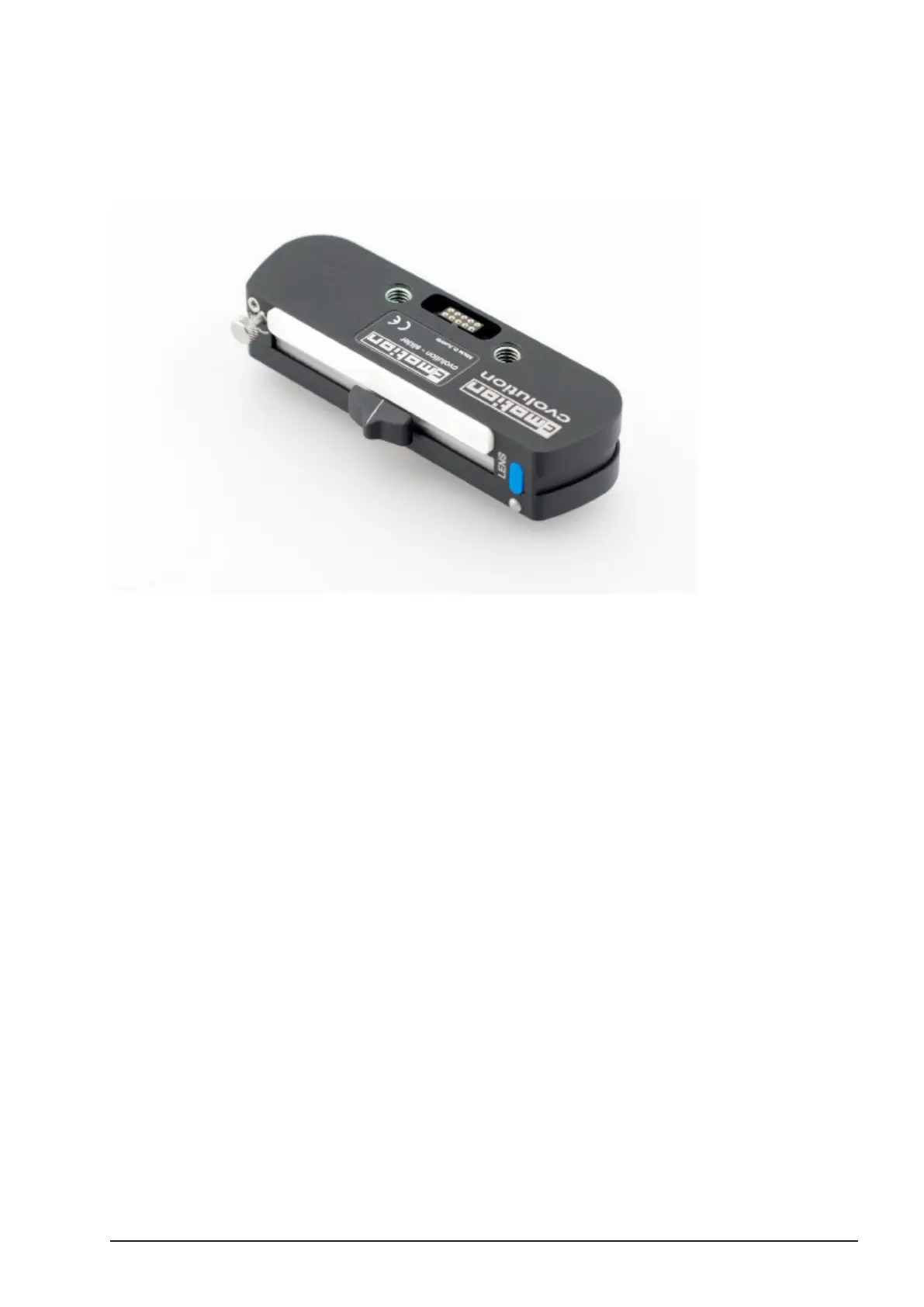

cvolution slider
The sliders feature a locking mechanism and a user swappable marker strip.
1.8.1. LEDs and Buttons of the slider
Refer to sections 1.5.1 on page 14 and 1.5.2 on page 16 for information on the sliders LED
and button.
