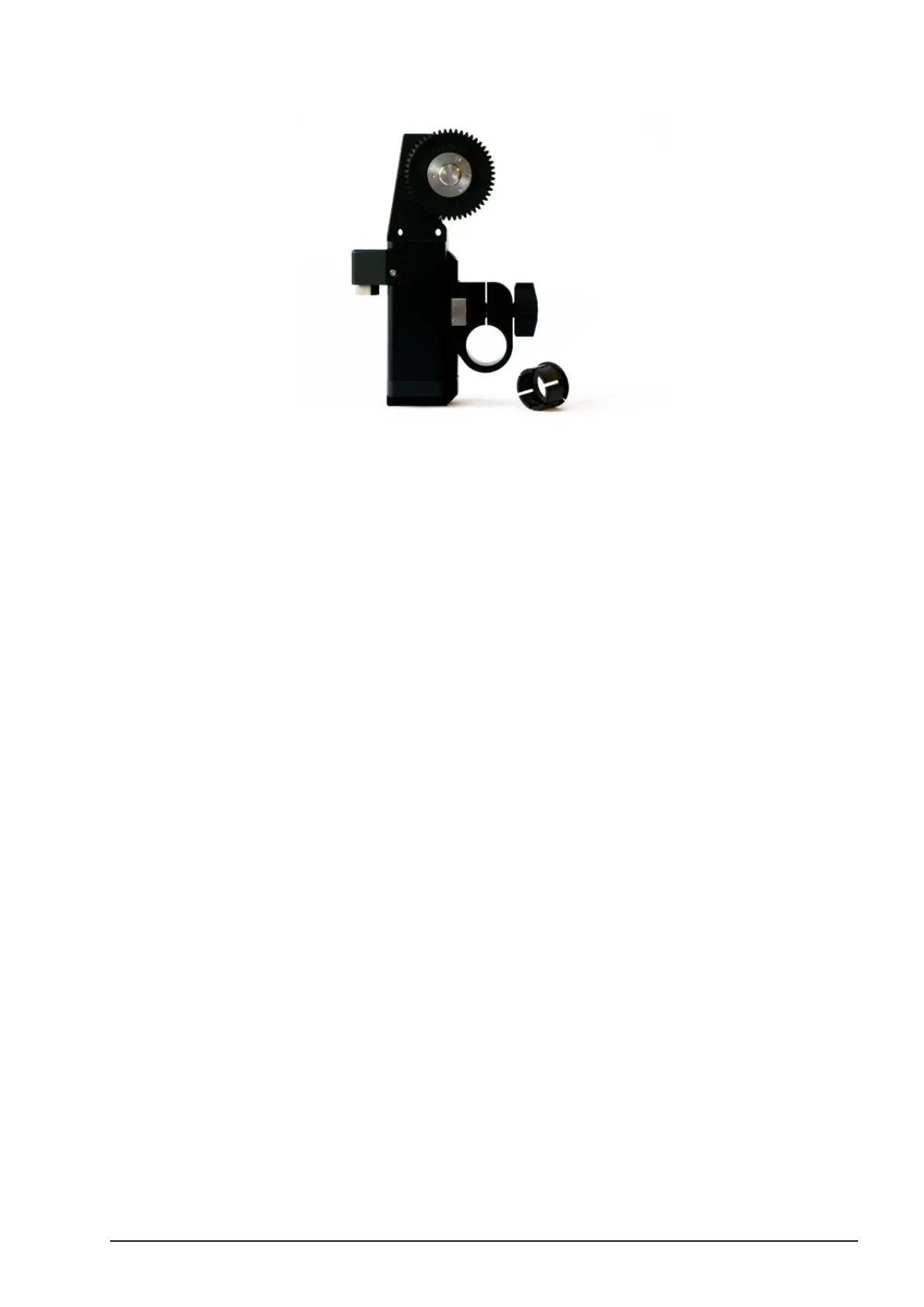

3.2.3. Mounting Motors to Camera Support Rods
■Loosen the thumbscrew and gently slide the motor onto the rod.
■When the motor is in the correct position on the rod, adjust the motor height by
sliding the motor up or down in the clamp if necessary.
■Press the gear rmly against the lens or rig gear and fasten the thumbscrew
securely.
Warning: Make sure cables are not at risk of becoming caught or
tangled during operation or handling.
