4-22 Compaq ProLiant ML370 Setup and Installation Guide
Compaq Confidential Need to Know Required
Writer: Gilbert Saldivar Project: Compaq ProLiant ML370 Setup and Installation Guide Comments:
Part Number: 120137-002 File Name: e-ch4 Installing Hardware Options Last Saved On: 12/10/99 12:22 PM
Installing a Full-Height Device
Install a full-height such as a DLT tape drive in the removable media bay:
1. Unscrew and remove both bay blanks.
2. Slide the tape drive into the fully open bay, as shown in the following
illustration.
3. Replace the screws to secure the drive to the chassis.

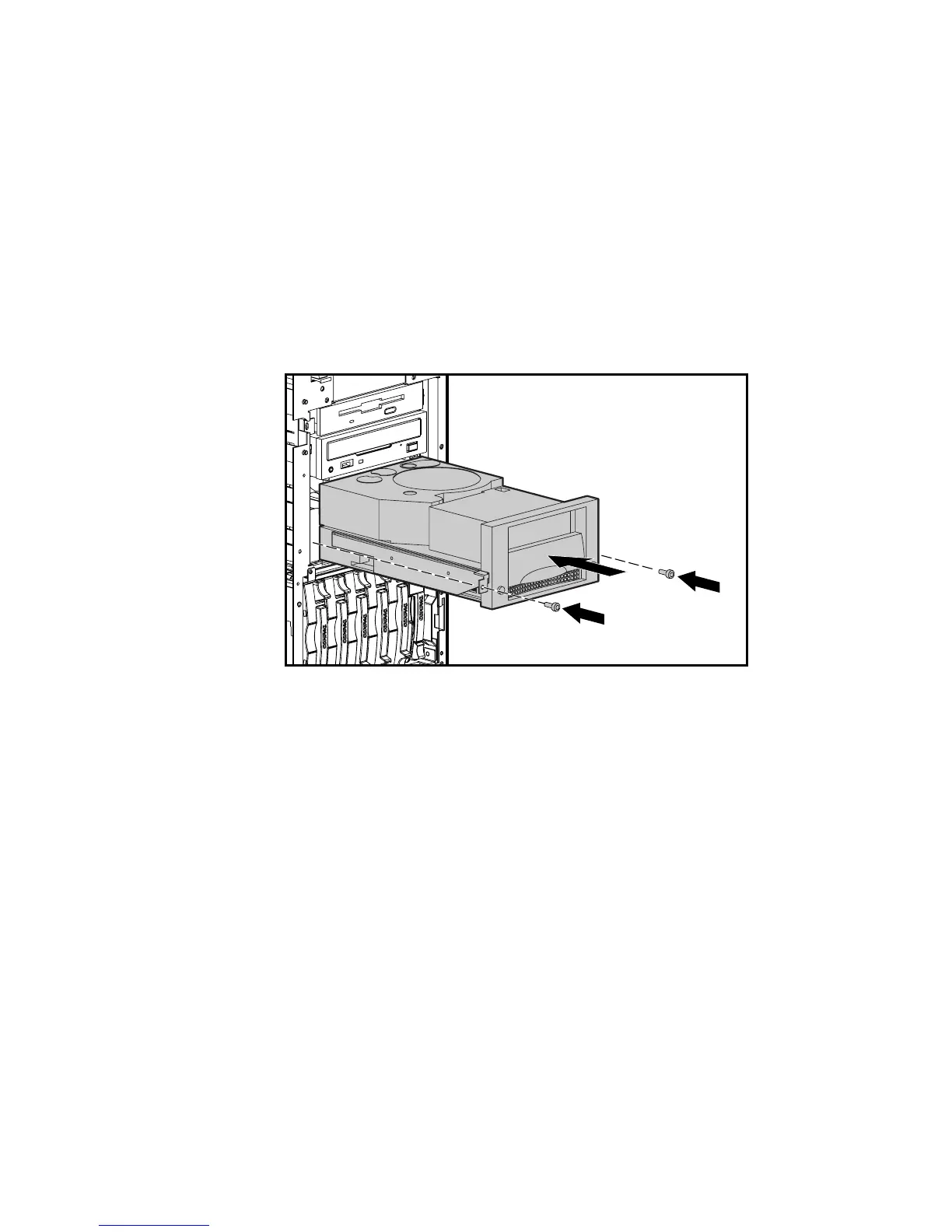

Figure 4-19. Installing a full-height DLT tape drive in the removable media
area
4. Attach one connector of the three-device SCSI cable to the SCSI port on
the rear of the tape drive and the other end of the cable to SCSI port 1.
Refer to Chapter 5, SCSI Cabling Instructions, for additional cabling
information.
5. Attach the power connector to the rear of the tape drive.
6. Run the System Configuration Utility and load the appropriate drivers
for your device.
