Installing Hardware Options 4-23
Compaq Confidential – Need to Know Required
Writer: Gilbert Saldivar Project: Compaq ProLiant ML370 Setup and Installation Guide Comments:
Part Number: 120137-002 File Name: e-ch4 Installing Hardware Options Last Saved On: 12/10/99 12:22 PM
Installing Hard Drives in the Hot-Plug
Drive Cage
To install a hot-plug hard drive, first review the installation documentation that
came with the drive. The following illustrations provide only an overview of a
hard drive installation. The rack model will be slightly different from the tower
model shown below.
1
2
3

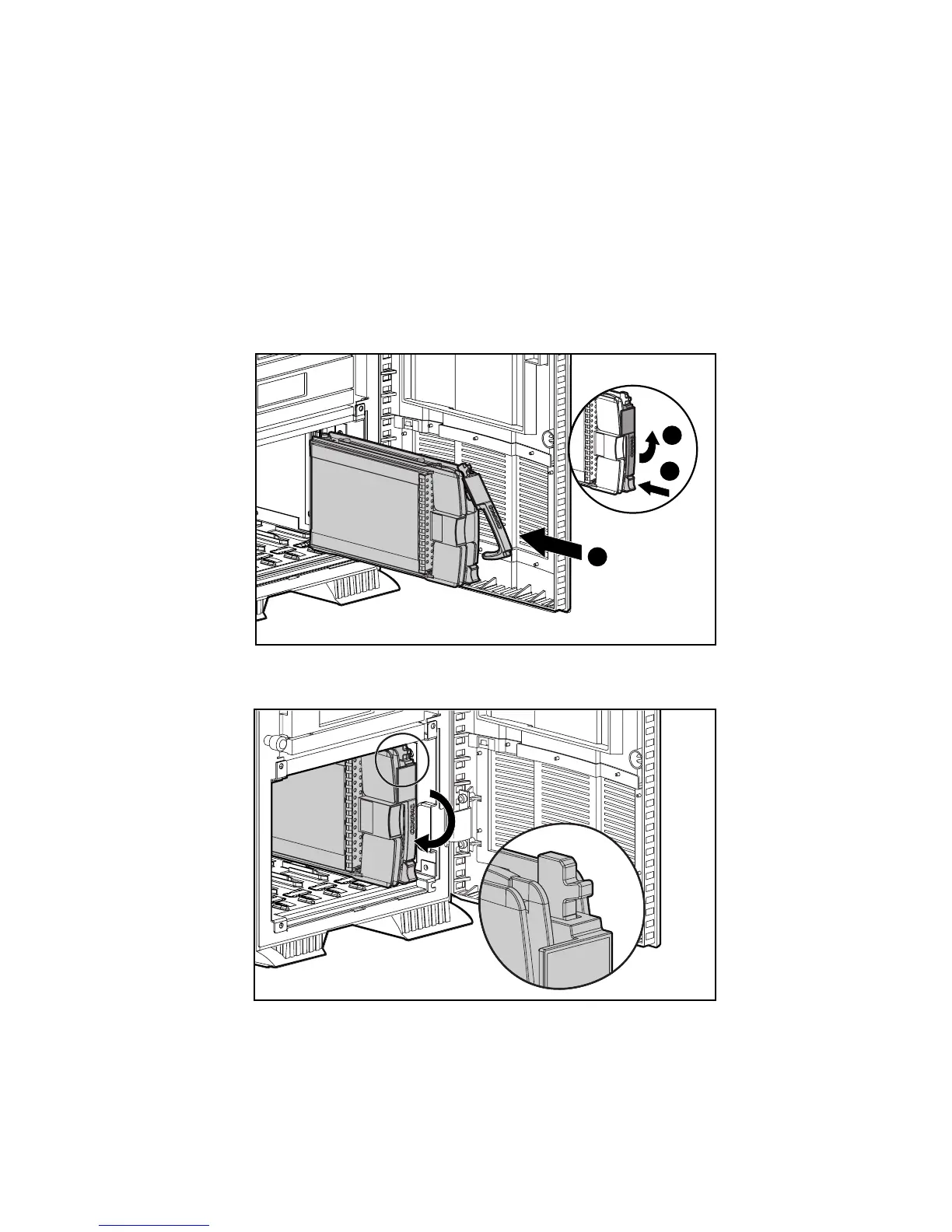

Figure 4-20. Opening ejector levers and inserting the hard drive into the drive
cage
Figure 4-21. Closing ejector levers to secure the hard drive in the drive cage
