SCSI Cabling Instructions 5-3
Compaq Confidential – Need to Know Required
Writer: CDresden Project: Compaq ProLiant ML370 Setup and Installation Guide Comments:
Part Number: 120137-002 File Name: f-ch5 SCSI Cabling Instructions Last Saved On: 12/10/99 12:28 PM
NOTE: Your configuration may vary and devices may be installed in the removable media
area.
Point-to-Point SCSI Cable from SCSI Port 2 to the
Hot-Plug Hard Drive Cage
The point-to-point SCSI cable  shown in Figure 5-1 connects to a hot-plug
SCSI hard drive from the drive cage to SCSI port 2. The point-to-point SCSI
cable is bi-directional so that either end can be connected to SCSI port 2.

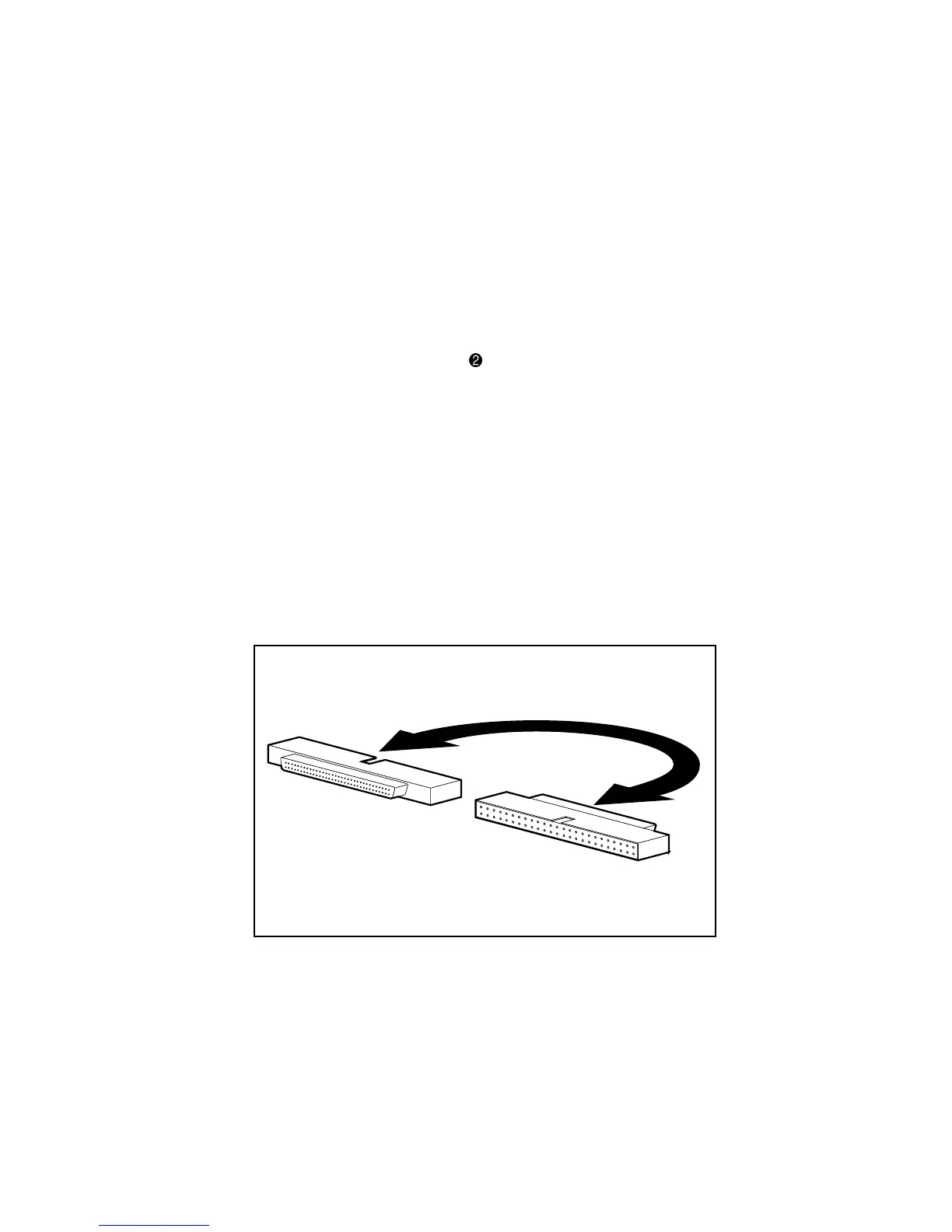

Wide-to-Standard SCSI Cable Adapter
To enable the use of Fast-SCSI-2 devices in the removable media area with the
Integrated Dual Channel Wide Ultra2 SCSI Controller, an adapter is required
to link the SCSI cable with the Fast-SCSI-2 device. This adapter is included in
all Compaq option kits containing narrow SCSI devices. To purchase an
adapter for use with any third-party option, order the Wide-to-Standard SCSI
Cable Adapter Option Kit from your local Compaq authorized reseller or
Compaq authorized service provider.
DAZ1-5.EPS
Figure 5-2. Wide-to-standard SCSI cable adapter
