Running Internal and External Drives
Optional mass storage SCSI devices such as Compaq ProLiant
Storage Systems can be connected to the server by using the external SCSI
connector on the back of the unit. To connect to an external storage device as
shown below, refer to the installation documentation provided with the
external storage device.
1. Disconnect all devices, including the three-device, terminated SCSI
cable, from SCSI port 1.
2. If it is not connected already, connect the hot-plug hard drives to SCSI
port 2
with the point-to-point cable provided with your server, as
shown below. This will be the only internal cabling present with this
cabling configuration.
1
2

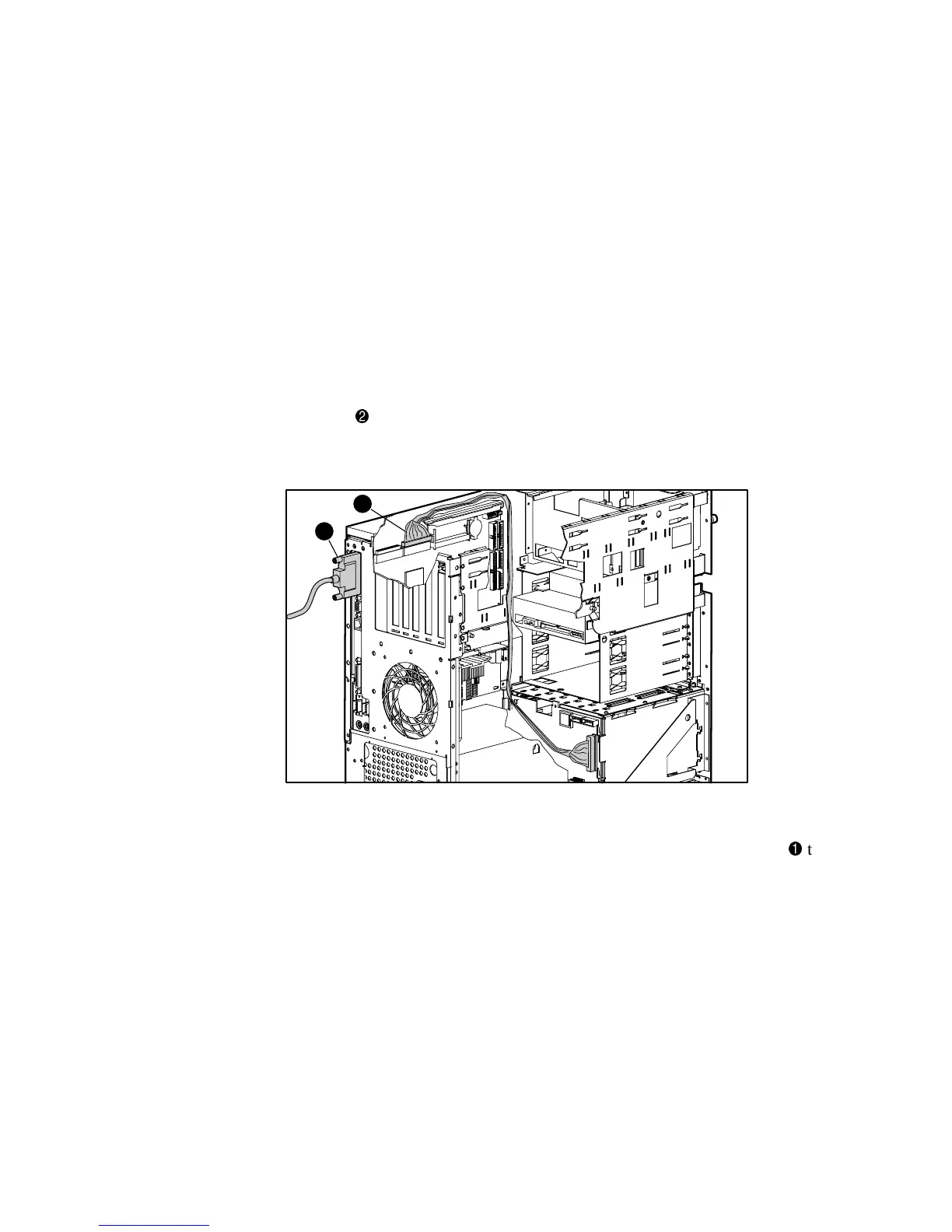

Figure 5-6. Connecting SCSI port 2 to the drive cage
3. Connect the external SCSI connector on the rear panel of the server
to
the external SCSI connector on the rear panel of the storage system.
To Next Page
