4-32 Compaq ProLiant ML370 Setup and Installation Guide
Compaq Confidential – Need to Know Required
Writer: Gilbert Saldivar Project: Compaq ProLiant ML370 Setup and Installation Guide Comments:
Part Number: 120137-002 File Name: e-ch4 Installing Hardware Options Last Saved On: 12/10/99 12:22 PM
1
2

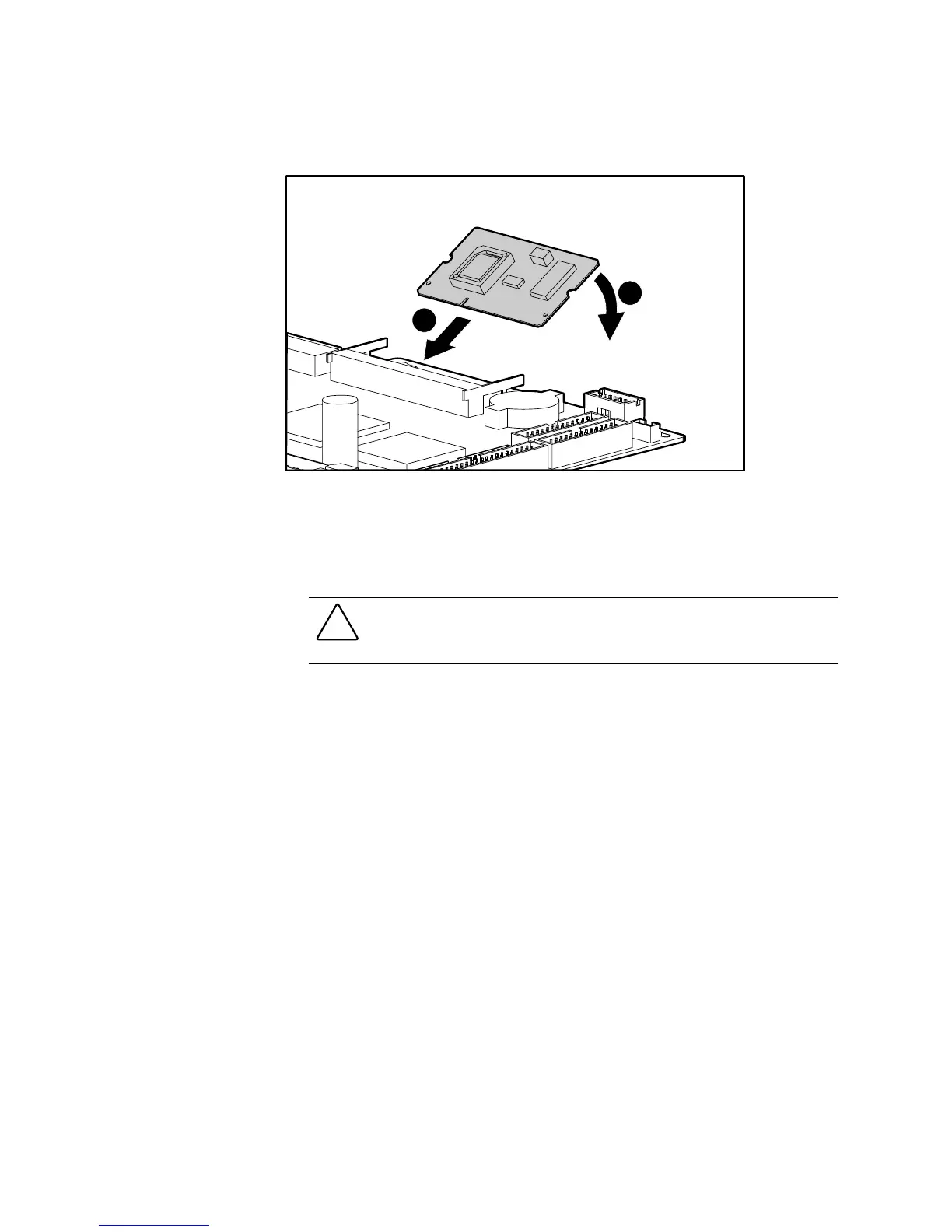

Figure 4-28. Installing the Integrated Smart Array Controller
7. Close the server and reconnect the power cord.
8. Turn on power to the server and allow the system to detect and
configure the controller.
CAUTION: You are required to restore all data stored on the server after
installing the optional Integrated Smart Array Controller. Any information that
was not backed up before installation is now permanently deleted.
9. Restore any data that was backed up from the server before the
controller was installed.
For information on configuring the Integrated Smart Array Controller, refer
either to the documentation that shipped with the option kit or to the Compaq
Integrated Smart Array Controller User Guide.
Board Layouts
Riser Board
The figure and tables below show slot locations and switch settings for the
riser board. This information is also provided on the access panel labels
located inside your server.

Compaq PROLIANT ML370 Specifications

General

Brand	Compaq
Model	PROLIANT ML370
Category	Server
Language	English
