Connecting the Power Cord and
Peripheral Devices
After all internal hardware options have been installed in the server, connect
the power cord and peripheral devices to the connectors located on the rear
panel of the server. Locations of connectors for the power cord and peripheral
devices on the rear panel of the server are shown in the figure below. See
Chapter 4, “Installing Hardware Options,” or see the options kits for detailed
instructions for connecting peripheral devices.
10
2
1
3
4
6
5
7
8
9
11

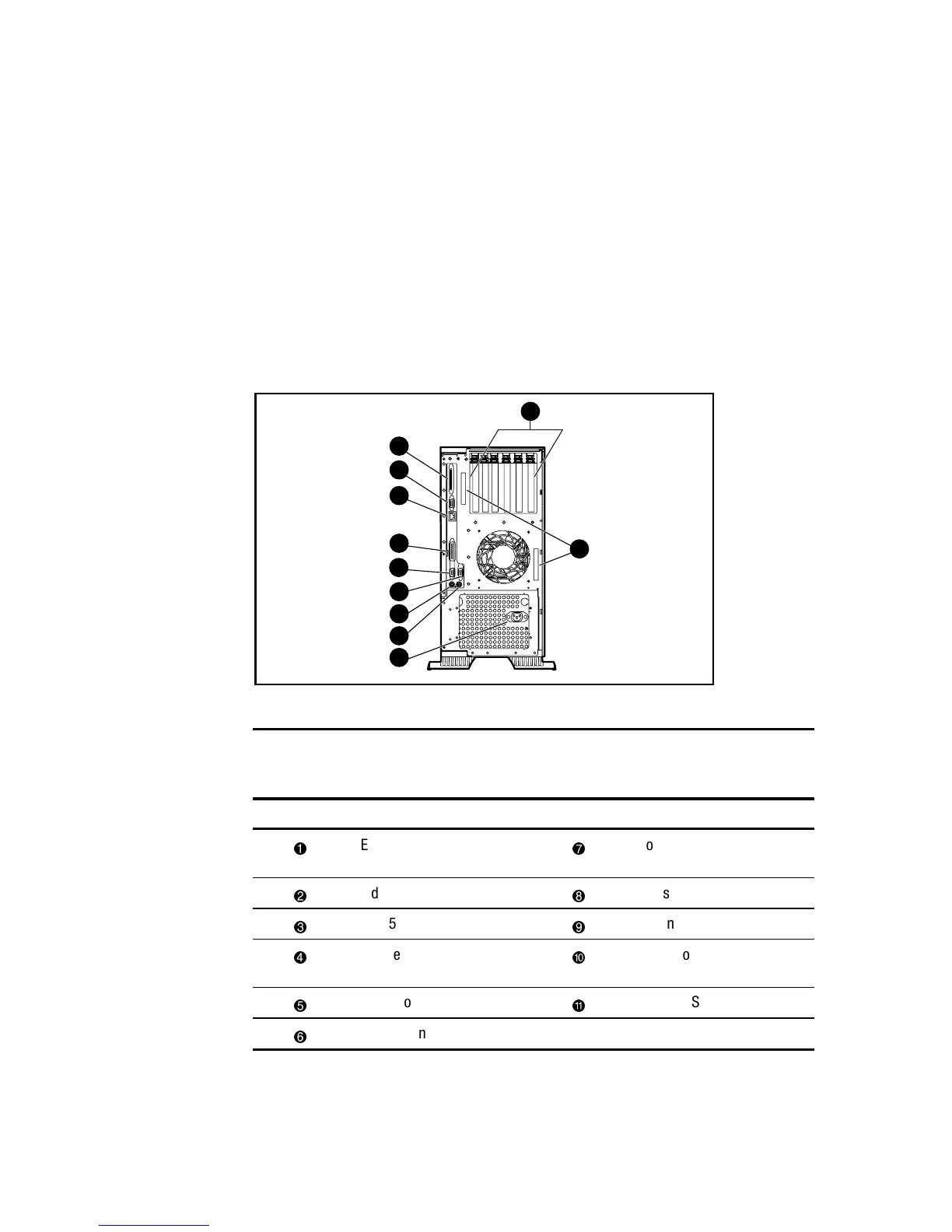

Figure 2-1. Rear panel of the tower server
Table 2-1
Rear Panel Connectors on the Tower Server
Number Connector Number Connector
External SCSI connector
Hot-plug keyboard
connector (purple)
Video connector (blue)
Mouse connector (green)
RJ-45 network connector
External power connector
Parallel connector
(burgundy)
Expansion slots
Serial connector A (teal)
External SCSI access
Serial connector B (teal)
