Attaching Component Rails to the Server
1. Place the tab on a component rail at the front of the server chassis. The
holes in the component rail line up only one way with the chassis.
2. Attach the component rails, one to each side of the server chassis (flat
side to chassis) with five 8-32 x ¼-inch Phillips screws. Do not use
washers with the screws.

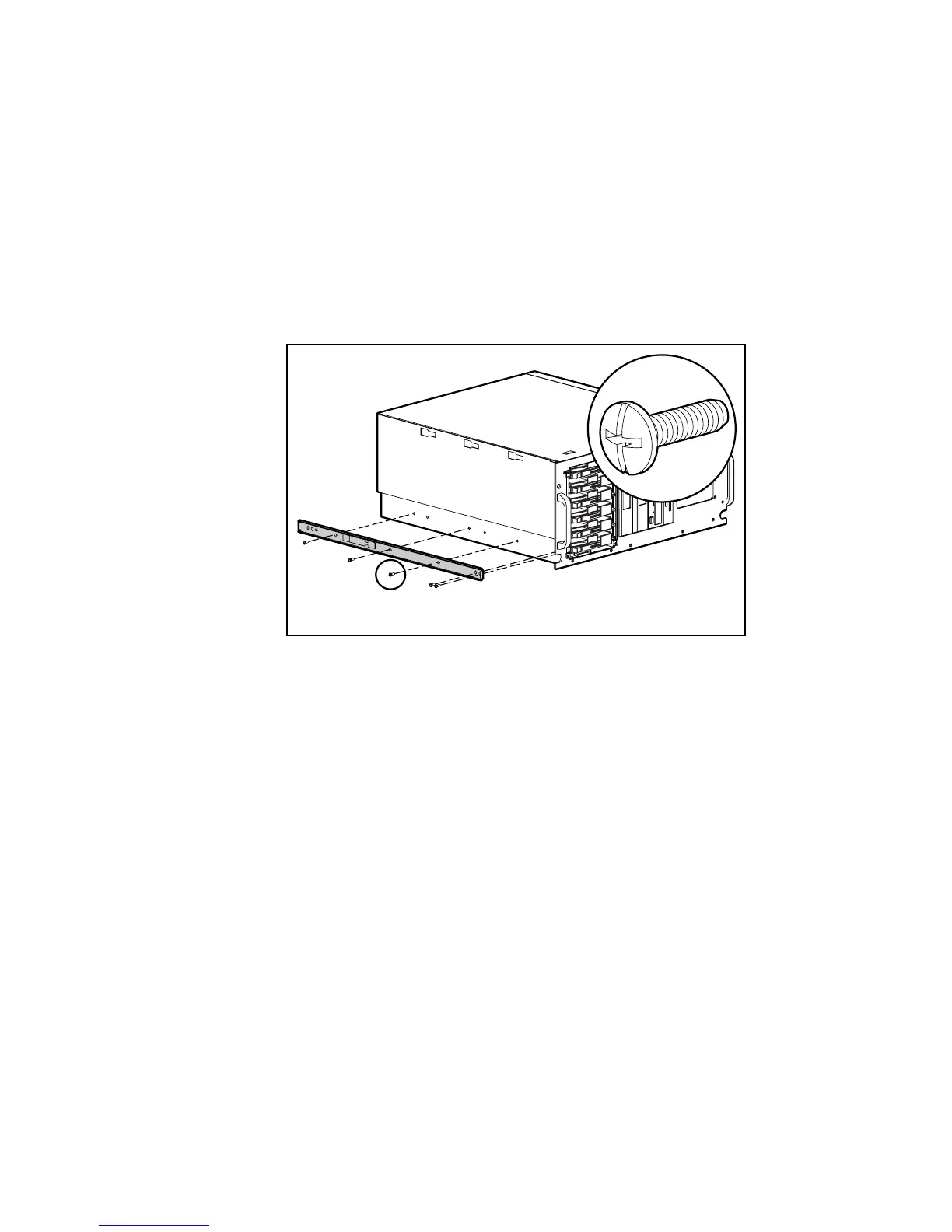

Figure 3-13. Attaching a component rail to the server
Attaching the Cable Management Arm
Bracket
The cable management arm bracket fastens to the top right rear of the rack
server chassis. The bracket provides an attachment point for the cable
management arm from the server to the rear frame of the rack.
Attach the cable management arm bracket to the back of the server with two
6-32 x ¼-inch Phillips screws.
