Installing the Rack Model ProLiant ML370 3-19
Compaq Confidential – Need to Know Required
Writer: Gilbert Saldivar Project: Compaq ProLiant ML370 Setup and Installation Guide Comments:
Part Number: 120137-002 File Name: d-ch3 Installing the Rack Model Last Saved On: 12/13/99 3:43 PM
CZR4-011.eps

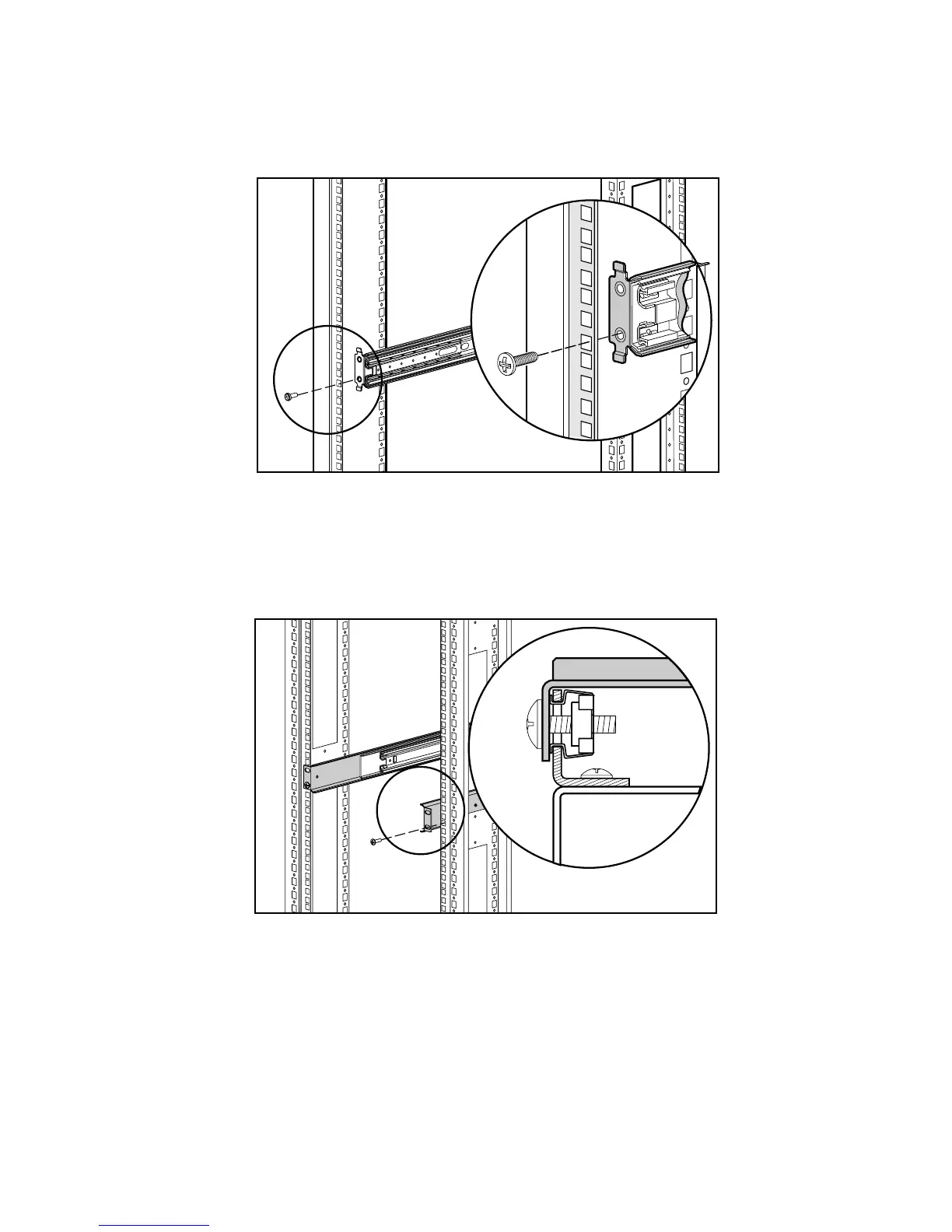

Figure 3-11. Attaching mounting bracket assembly to the front of the rack
2. Carefully align the mounting bracket assembly with the rear rack frame.
3. Secure the back end of the mounting bracket assembly to the back
corner brace of the rack with one M6 x 1.0-12L Phillips screw through
the bottom hole of the bracket and the cage nut.
Figure 3-12. Installing the cage nut on the back of mounting bracket
assembly with top view shown in inset
4. Attach both mounting bracket assemblies to the rack and prepare the
server for mounting in the rack.
