SCSI Cabling Instructions 5-9
Compaq Confidential – Need to Know Required
Writer: CDresden Project: Compaq ProLiant ML370 Setup and Installation Guide Comments:
Part Number: 120137-002 File Name: f-ch5 SCSI Cabling Instructions Last Saved On: 12/10/99 12:28 PM
Connecting the Controller Board to Removable
Media Devices
Controller boards can be connected to removable media devices directly with
the three-device, terminated SCSI cable provided with your server. The figure
below shows a controller cabled to a device in the removable media area.
Connect the controller to the removable media area:
1. Locate the three-device, terminated SCSI cable. No additional cables are
required.
2. Connect the controller end of the three-device SCSI cable to a SCSI
connector on the controller.
3. Connect the other end of SCSI cable to a tape drive or other removable
media device.

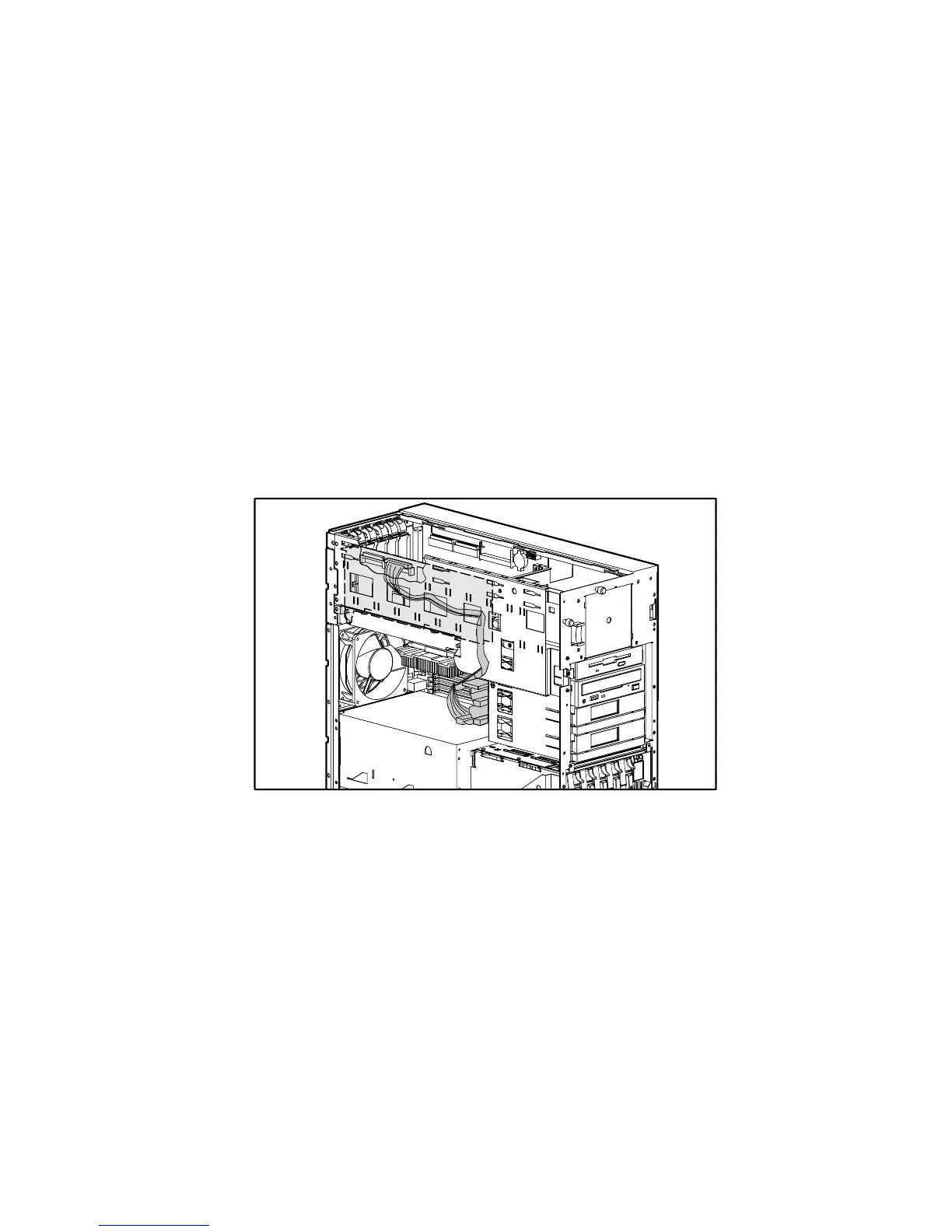

Figure 5-5. Connecting an array controller to a device in the removable media
area
