4-12 Compaq ProLiant ML370 Setup and Installation Guide
Compaq Confidential – Need to Know Required
Writer: Gilbert Saldivar Project: Compaq ProLiant ML370 Setup and Installation Guide Comments:
Part Number: 120137-002 File Name: e-ch4 Installing Hardware Options Last Saved On: 12/10/99 12:22 PM
Removing the Riser Board Shipping
Bracket
Some ProLiant ML370 servers are packaged with a shipping bracket for
greater stability in the area of the riser board. Before installing an expansion
board, remove the shipping bracket:
1. If your server contains a riser board shipping bracket, press in on the
tab
on the back of the shipping bracket to release it, as shown in the
illustration below.
2. Slide the bracket toward the system board and lift out, away from the
assembly
.
1
2

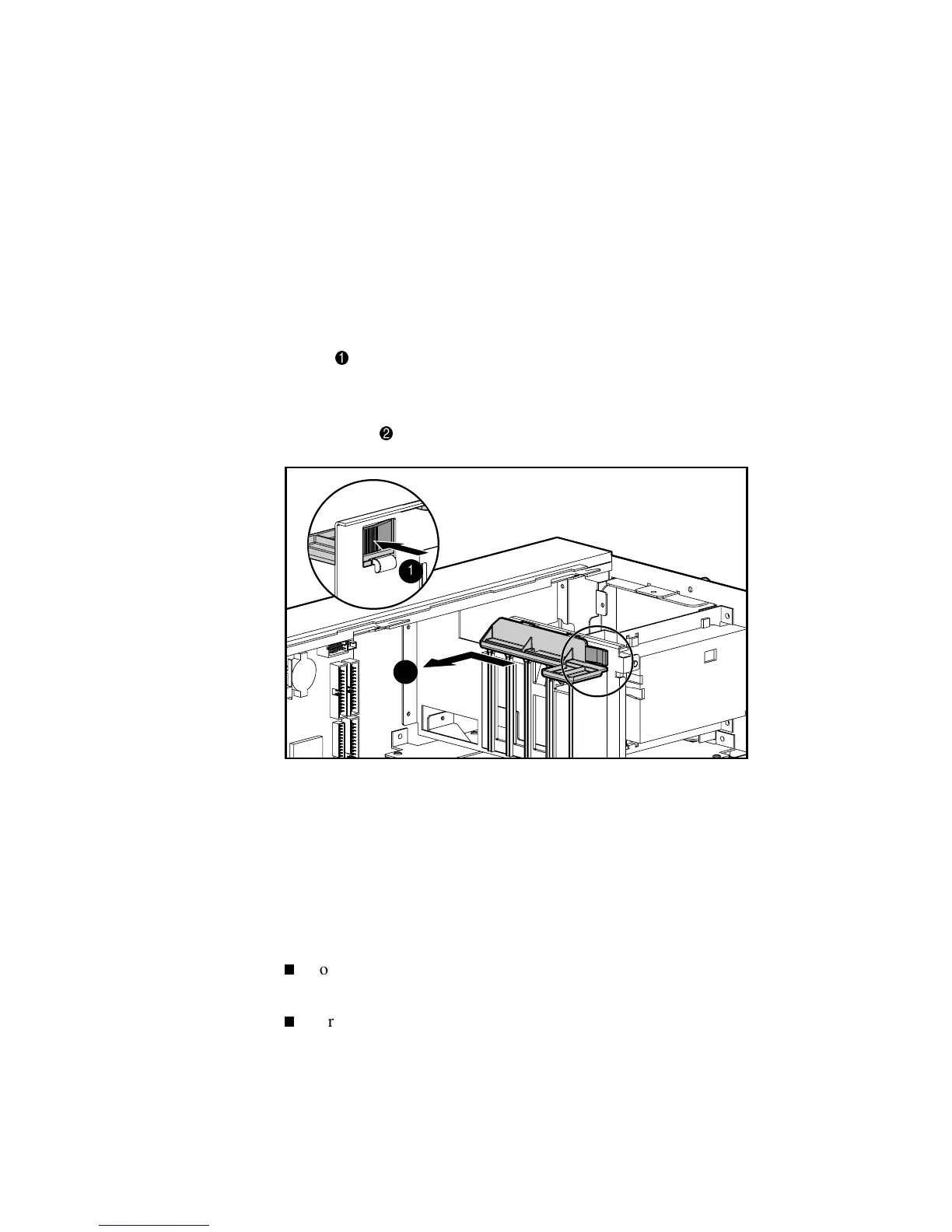

Figure 4-10. Removing the riser board shipping bracket
NOTE: The shipping bracket may not be included on all servers.
Installing an Expansion Board
To install an expansion board, such as a drive array controller or video board,
refer to one of the following installation sources:
For a text and illustration procedure, refer to the installation
documentation that came with the option kit.
For a text overview of the procedure, refer to the procedure below.
