Connecting the Power Cord and
Peripheral Devices
You are now ready to connect the power cord and peripheral devices to the
connectors located on the rear panel of the server. Icons on the back of the
server identify the function of each connector.
WARNING: To reduce the risk of electrical shock or fire, do not plug
telecommunications/telephone connectors into the NIC receptacles.
2
11
3 4 5
6 7 8 9 10
1

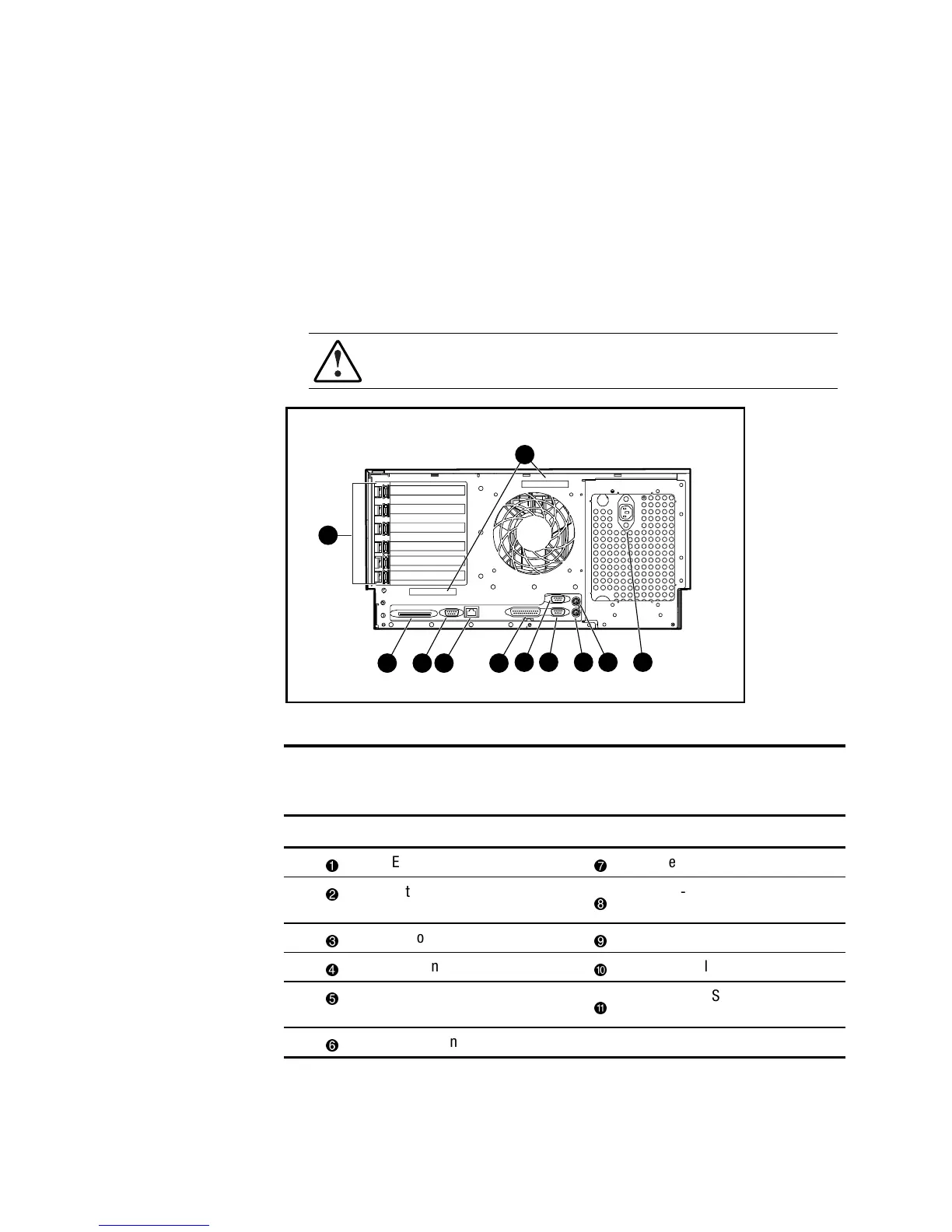

Figure 3-22. Rear panel of the ProLiant ML370 rack server
Table 3-2
Rear Panel Connectors on the ProLiant ML370 Rack Server
Number Connector Number Connector

Expansion slots

Serial connector A (teal)

External SCSI connector

Hot-plug keyboard connector
(purple)

Video connector (blue)

Mouse connector (green)

RJ-45 network connector

External power connector

Parallel connector
(burgundy)

External SCSI access

Serial connector B (teal)
