Rack Model Server

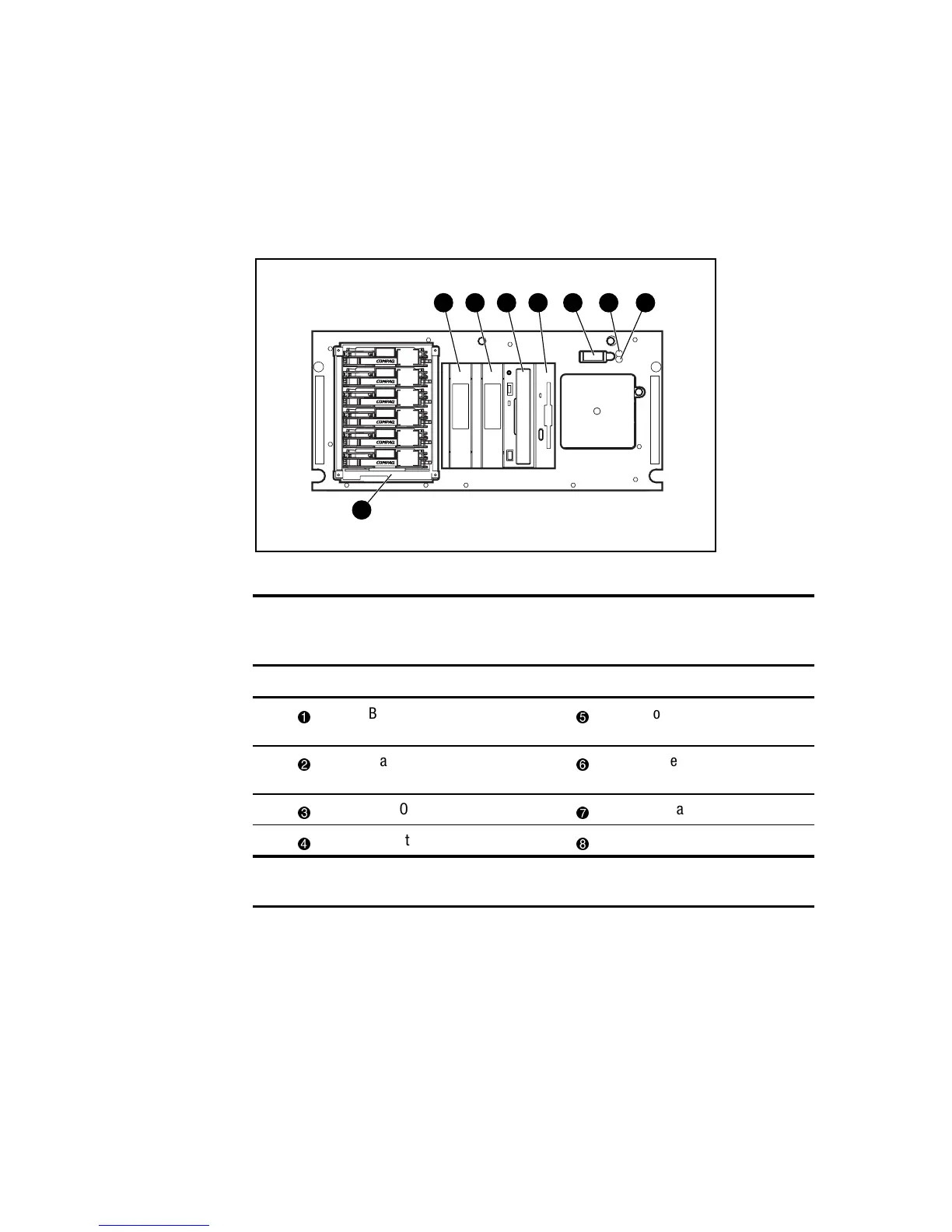

The figure below shows the front panel components of the rack model server.
1 2 4 5 6 7
8
5
4
3
2
1
0
3
Figure 1-4 Identifying front panel components of the rack model server
Table 1-2
Front Panel Components for the Rack Model Server
Number Component Number Component

Blank removable media
bay

Power On/Standby switch

Blank removable media
bay

Power On/Standby
indicator

CD-ROM drive

SCSI activity indicator

Diskette drive

Six (6) hot-plug drive bays
NOTE: The type of loading mechanism on the CD-ROM drive installed with your server may
differ from the one shown in the illustration above.
