Locating Expansion Board Slots
The server has six PCI expansion slots located directly beneath the small
access panel:
 Two 32-bit PCI slots (1 and 2)
 Four 64-bit PCI slots (3 through 6)
Expansion boards can be installed in the locations shown in the figure below.
NOTE: The rack model slot configuration is oriented differently than the tower model
shown below.
123 4 5 6

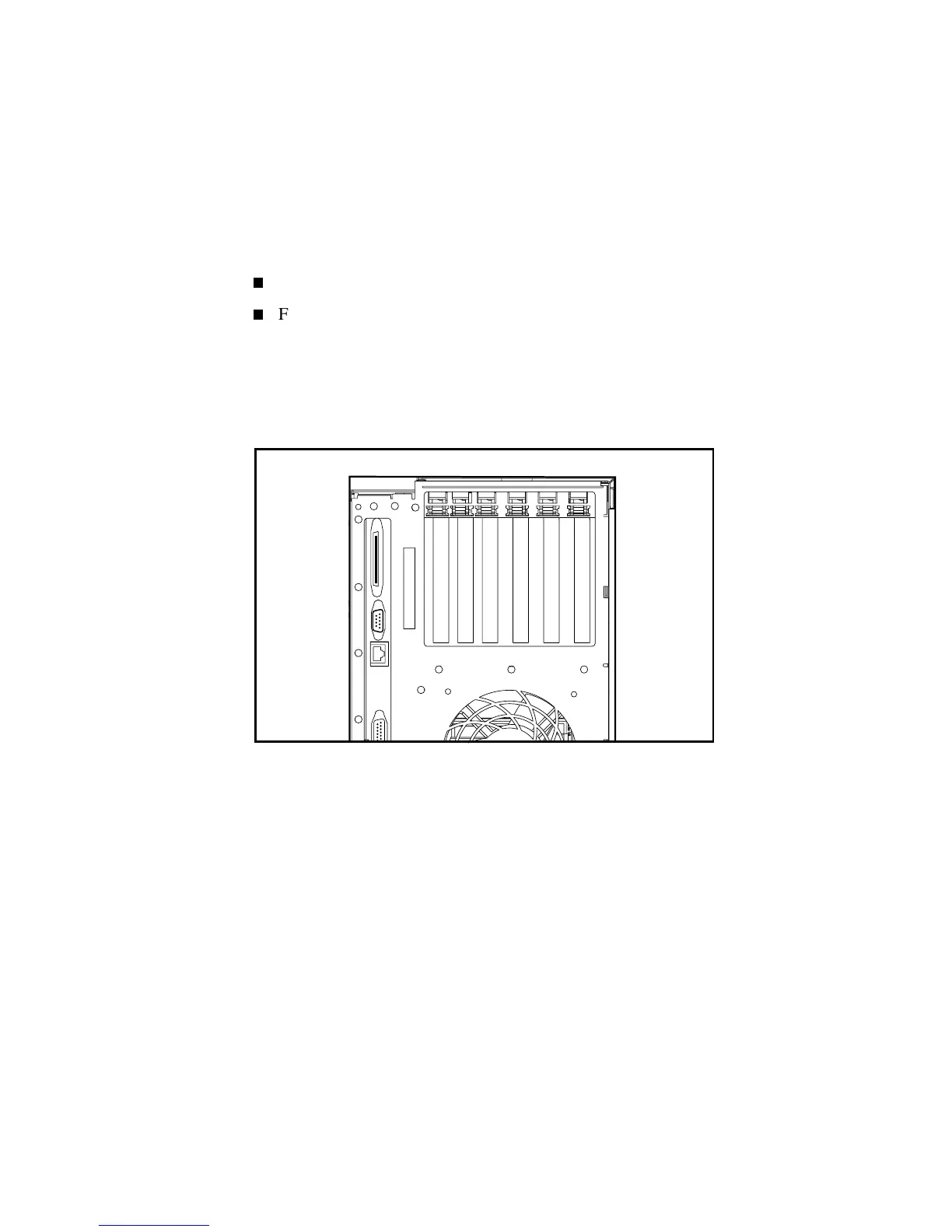

Figure 4-9. Locating expansion slots
