Front Panel Components
Tower Model Server
The figure below shows front panel components of the tower model server.
5 4 3 2
1 0
5
6
8
4
2
3
1
9
7

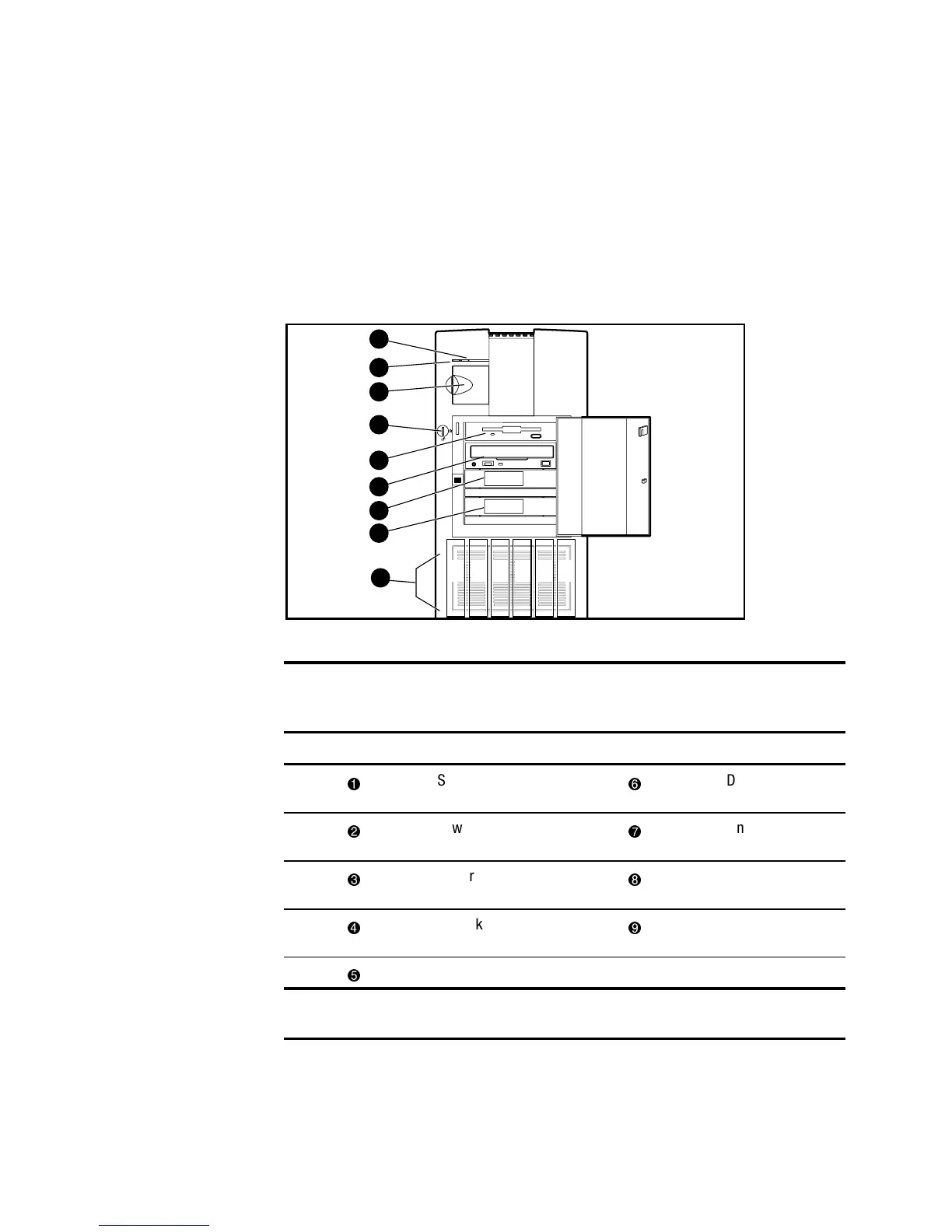

Figure 1-3. Identifying front panel components of the tower model server
Table 1-1
Front Panel Components for the Tower Model Server
Number Component Number Component

SCSI activity
indicator

CD-ROM drive

Power On/Standby
indicator

Blank removable
media bay

Power On/Standby
switch

Blank removable
media bay

Keylock for front
bezel

Six (6) hot-plug
drive bays

Diskette drive
NOTE: The type of loading mechanism on the CD-ROM drive installed with your server may
differ from the one shown in illustrations.
