5-2 Compaq ProLiant ML370 Setup and Installation Guide
Compaq Confidential – Need to Know Required
Writer: CDresden Project: Compaq ProLiant ML370 Setup and Installation Guide Comments:
Part Number: 120137-002 File Name: f-ch5 SCSI Cabling Instructions Last Saved On: 12/10/99 12:28 PM
SCSI Cabling Equipment
ProLiant ML370 servers are shipped with two preinstalled SCSI cables to
connect hard drives and removable media devices to an Integrated Dual
Channel Wide Ultra2 SCSI Controller port on the system board. The default
cabling configuration below shows a three-device, terminated SCSI cable
connecting SCSI port 1 to the removable media area
and a point-to-point
SCSI cable connecting SCSI port 2 to the hot-plug drive cage
.
Cables for any configuration involving standard or optional equipment are
provided with the server or with the appropriate option kit.
1
2
2
1

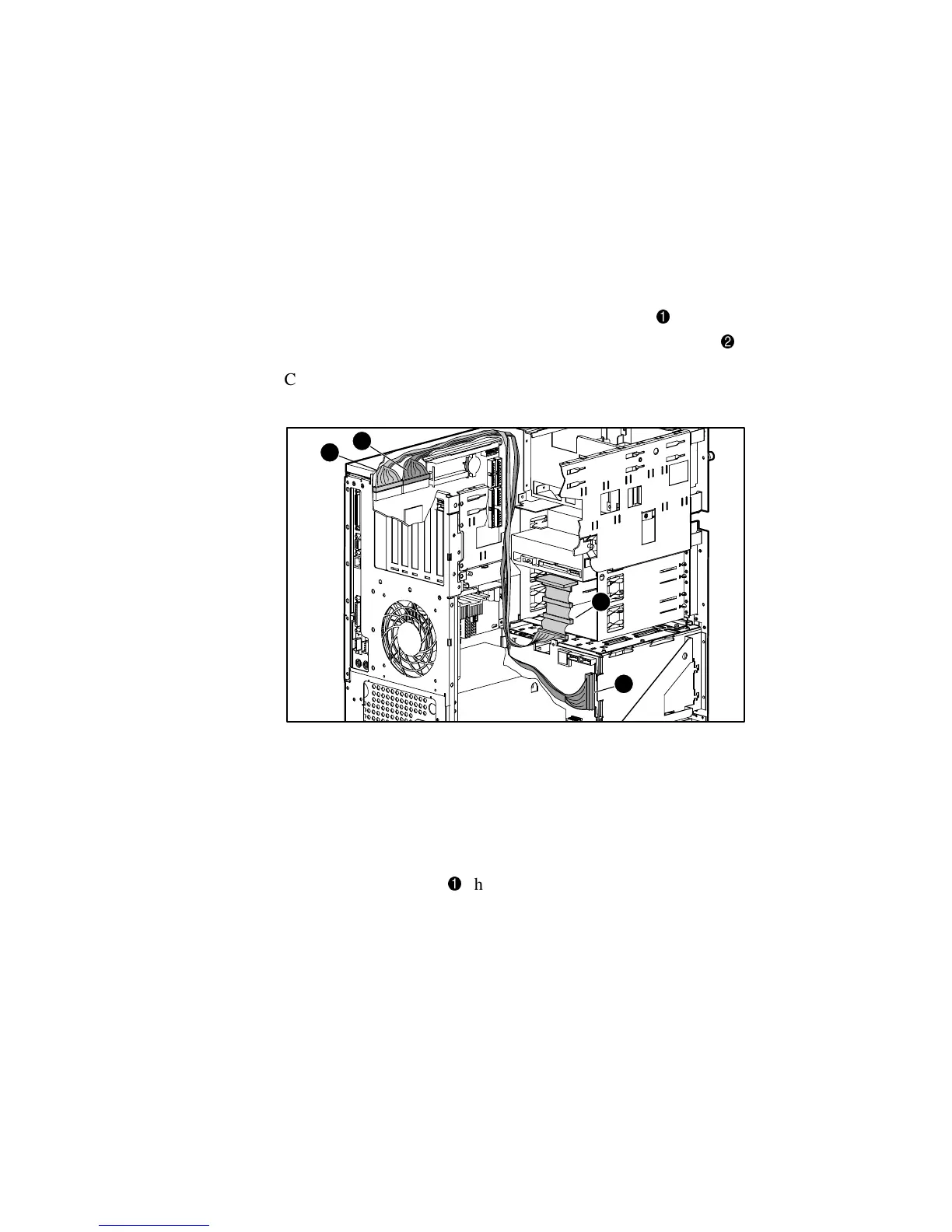

Figure 5-1. Default cabling configuration
Three-Device, Terminated SCSI Cable from SCSI
Port 1 to the Removable Media Area
The three-device cable
shown above connects up to three SCSI devices,
which are installed in the removable media area. One end of the SCSI cable is
connected to SCSI port 1 of the server, the other end of the cable is bundled
inside the vacant bays of the removable media area and is not connected to any
SCSI device.
When you install SCSI devices in the removable media area, connect the
devices to this SCSI cable.
