Installing the Rack Model ProLiant ML370 3-25
Compaq Confidential – Need to Know Required
Writer: Gilbert Saldivar Project: Compaq ProLiant ML370 Setup and Installation Guide Comments:
Part Number: 120137-002 File Name: d-ch3 Installing the Rack Model Last Saved On: 12/13/99 3:43 PM
IMPORTANT: When servicing the server, fully extend the component until the latches
lock. To return the server to the rack, press the latches and slide the server into the rack.
Attaching the Cable Management Arm
A double-hinged cable management arm and fasteners are provided with each
server. The cable management arm bracket connects the server cable
management arm and the rear frame of the rack. All cables to and from the
server are tied to this arm. The two hinges allow the cable management arm
and attached cables to swing out of the way when you need to access the back
of the server.
1. For easier handling, first slide the server into the rack and attach the
cable management arm to the cable management arm bracket.
NOTE: If you attach the arm before loading the server in the rack, the arm may swing
around and interfere with the loading process.
2. After you have loaded the server into the rack, use two M6 x 1.0-12L
Phillips screws to attach one end of the cable management arm to the
server's cable management arm bracket.
3. Align the arm with the bracket as shown in the figure below.

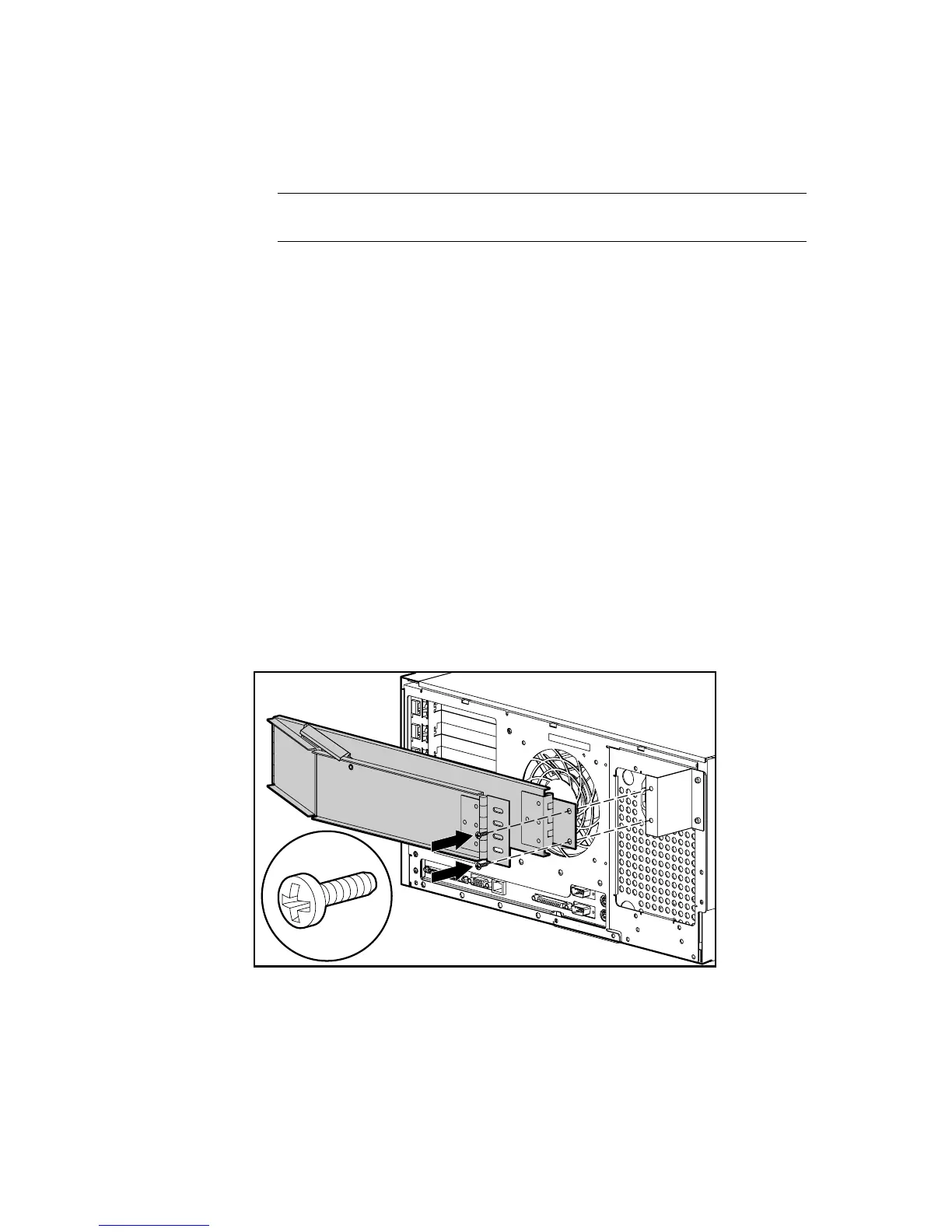

Figure 3-19. Attaching the cable management arm to the cable management
arm bracket
4. Align the other end of the cable management arm on the outside of the
rear brace of the rack.
