3-26 Compaq ProLiant ML370 Setup and Installation Guide
Compaq Confidential – Need to Know Required
Writer: Gilbert Saldivar Project: Compaq ProLiant ML370 Setup and Installation Guide Comments:
Part Number: 120137-002 File Name: d-ch3 Installing the Rack Model Last Saved On: 12/13/99 3:43 PM
5. Align the screw-retaining plate on the inside of the rack.
6. Attach the cable management arm to the rack with two 10-32 x 5/8-inch
Phillips washer-face, hex-head screws.

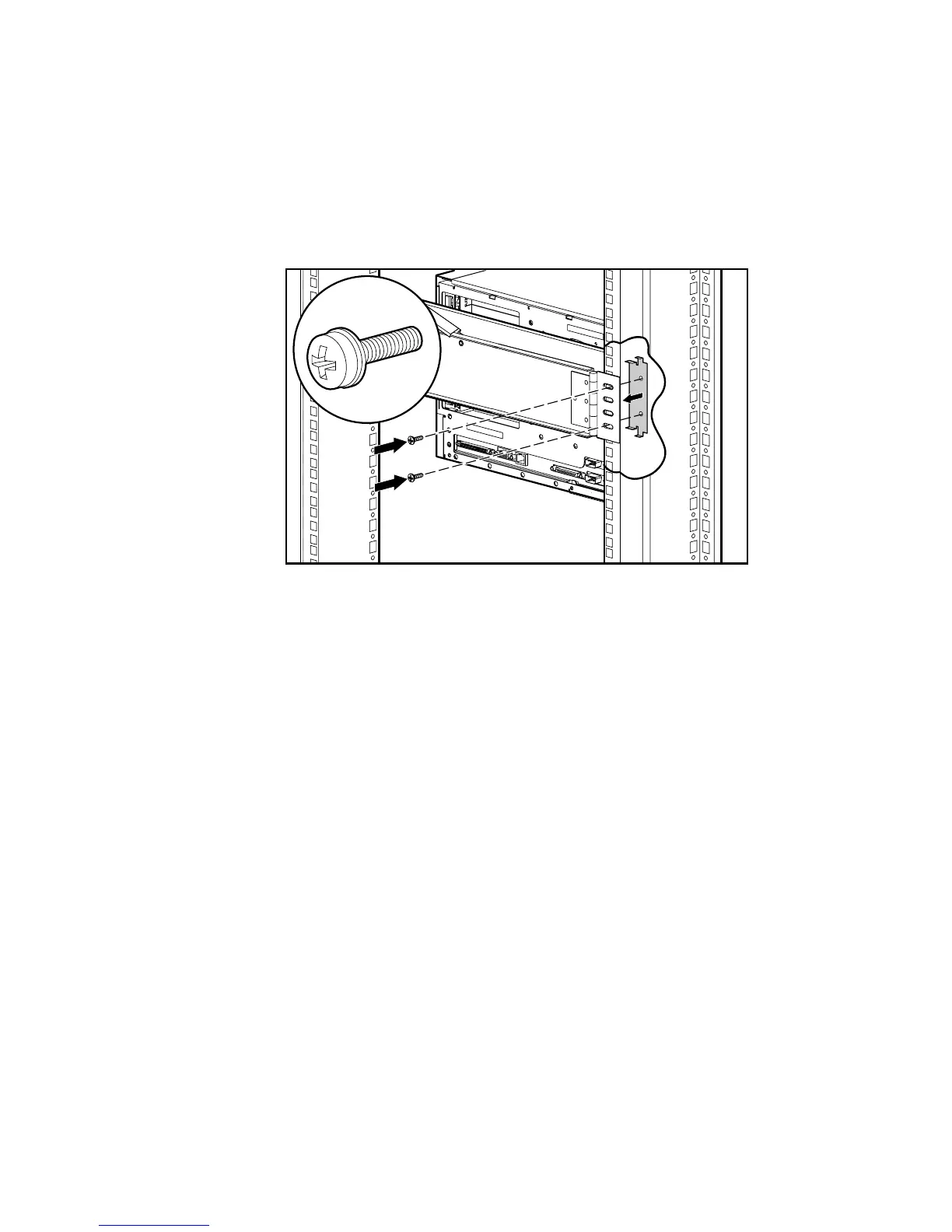

Figure 3-20. Attaching the cable management arm to the rear brace
