Installing the Rack Model ProLiant ML370 3-27
Compaq Confidential – Need to Know Required
Writer: Gilbert Saldivar Project: Compaq ProLiant ML370 Setup and Installation Guide Comments:
Part Number: 120137-002 File Name: d-ch3 Installing the Rack Model Last Saved On: 12/13/99 3:43 PM
Attaching the Cable Support
The optional cable support connects to both sides of the rear frame of the rack.
All cables to and from the server are tied to this support, which allows the
server cables to stretch from the right rear of the server across to the cable
channel on the other side of the rack. All other cables are all bundled in the
cable channel on the opposite side of the rack.
The cable support is needed only if you intend to route cables across the rack
to a cable channel. Use four M6 x 1.0-12L Phillips screws to attach the cable
support to both rear braces of the rack.

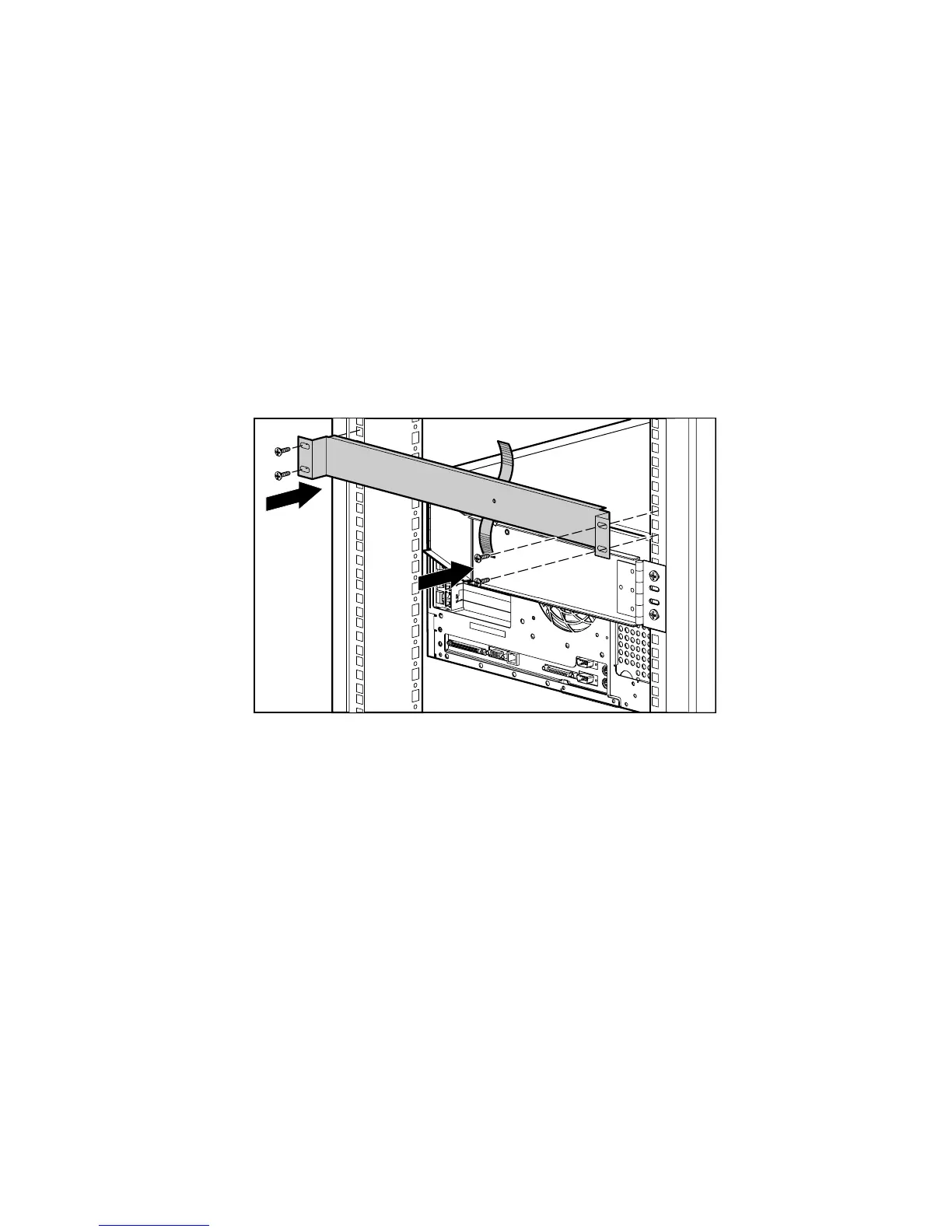

Figure 3-21. Attaching the cable support to the rack
