Rack Model
Remove the small access panel:
1. Loosen the front panel thumbscrews  to release the server from the
rack as shown in the figure below.
2
3
1
1

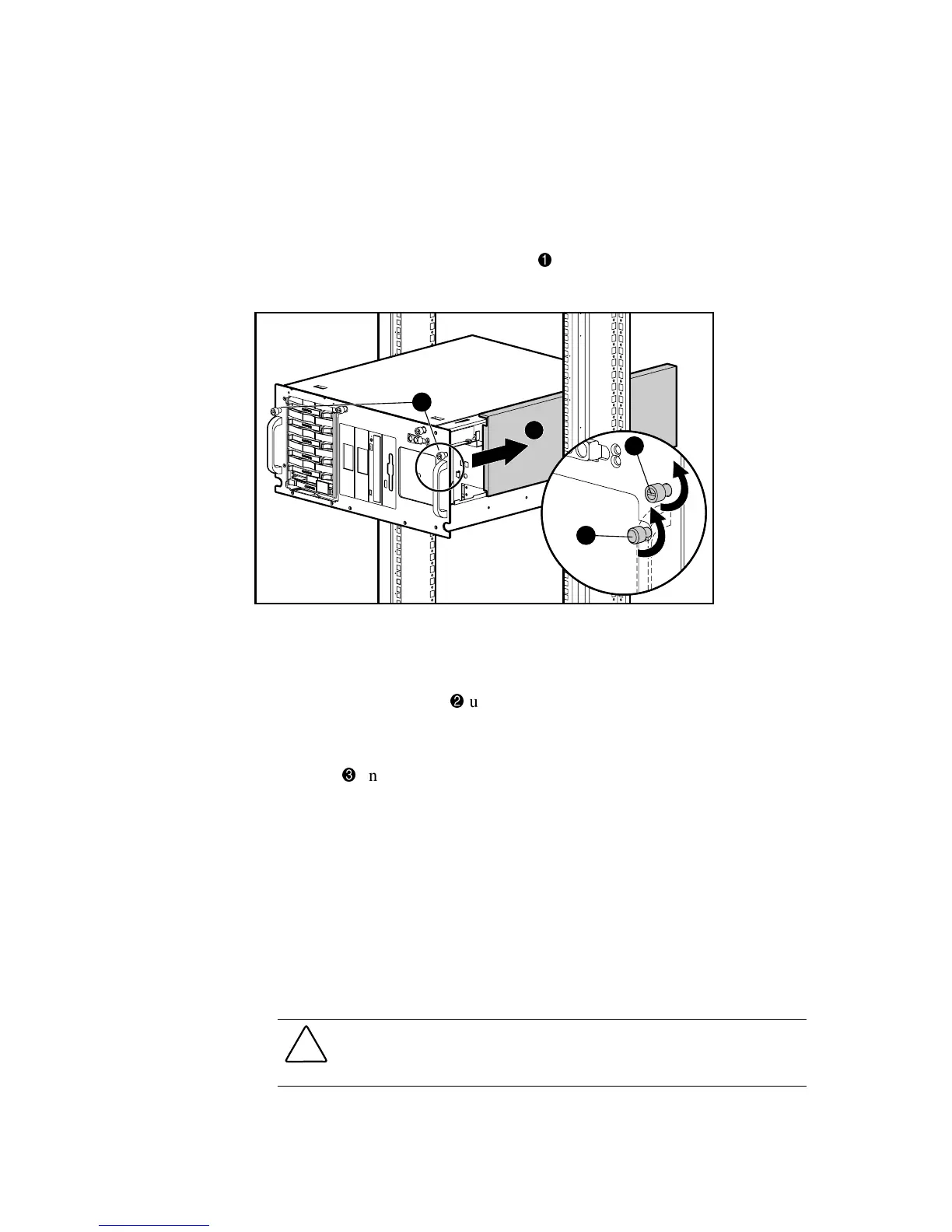

Figure 4-5. Removing the small access panel (rack server)
2. If the server is in the rack, pull the server out from the rack to the locked
position.
3. Loosen the thumbscrew  under the server handle to release the small
access panel.
4. Slide the small access panel toward the rear of the unit about ½ inch
(1.5 cm)
 and move the panel off to the side of the server.
5. Slide out and remove the small access panel.
6. Turn the small access panel over to locate the riser board configuration
label. This label provides instructions for removing expansion slot
blanks and installing the riser or other expansion boards.
7. Set the panel to the side and use the label to locate components inside
the chassis.
Removing the Large Access Panel
CAUTION: Do not operate the server without the access panels in place. These
panels are an integral part of the cooling system and removing them while the
system is running may adversely affect data integrity.
