4-6 Compaq ProLiant ML370 Setup and Installation Guide
Compaq Confidential – Need to Know Required
Writer: Gilbert Saldivar Project: Compaq ProLiant ML370 Setup and Installation Guide Comments:
Part Number: 120137-002 File Name: e-ch4 Installing Hardware Options Last Saved On: 12/10/99 12:22 PM
4. Loosen the top thumbscrew.
5. Slide the small access panel toward the rear of the unit about 0.5-inch
(1.5 cm), and move the panel off to the side of the server.
6. Lift and remove the panel.

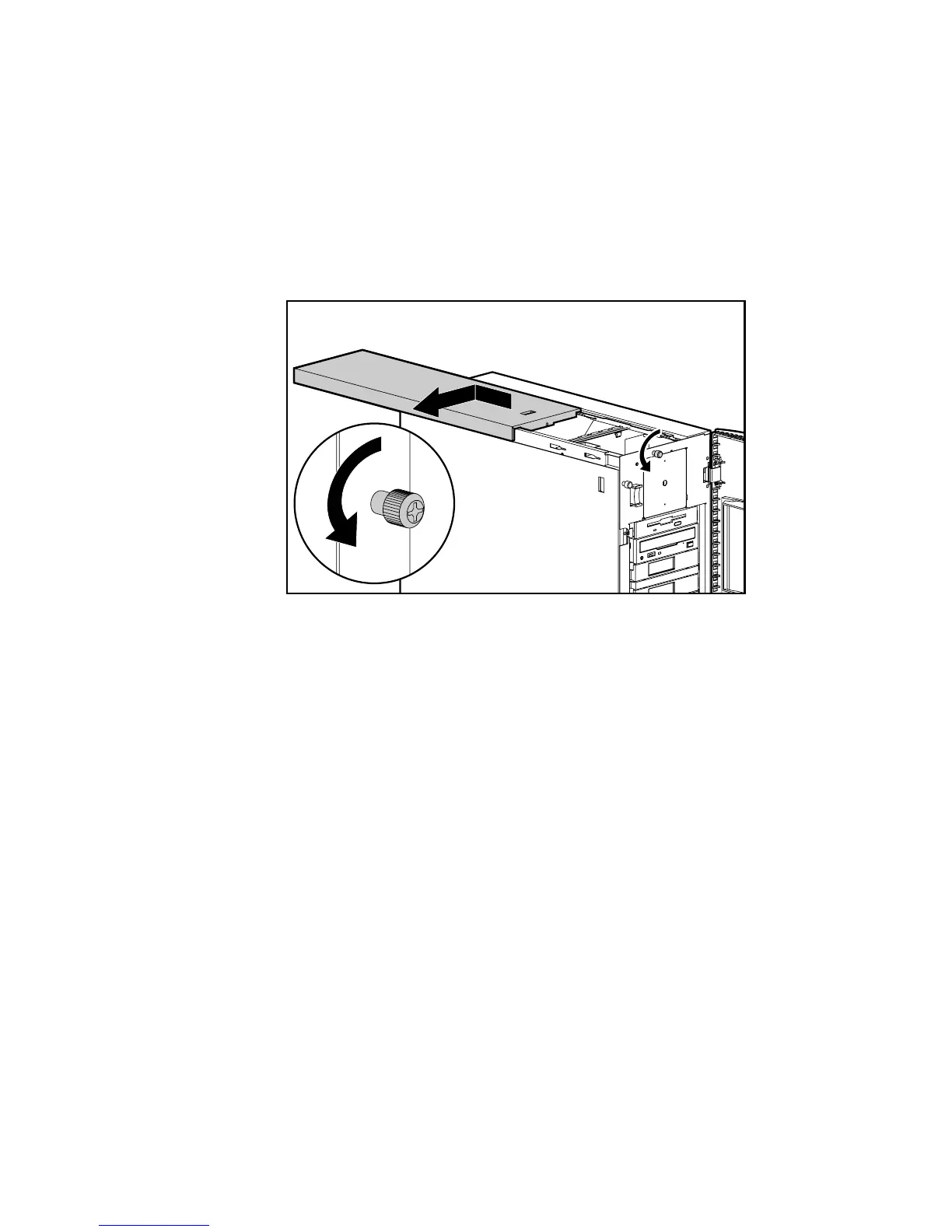

Figure 4-4. Removing the small access panel (tower server)
7. Turn the small access panel over to locate the riser board configuration
label. This label provides instructions on removing expansion slot
blanks and installing expansion boards.
8. Set the panel to the side and use the label to locate components inside
the chassis.
