Compaq PROLIANT ML370 User Manual

5-8 Compaq ProLiant ML370 Setup and Installation Guide
Compaq Confidential – Need to Know Required
Writer: CDresden Project: Compaq ProLiant ML370 Setup and Installation Guide Comments:
Part Number: 120137-002 File Name: f-ch5 SCSI Cabling Instructions Last Saved On: 12/10/99 12:28 PM
Connect the array controller to the hard drive cage as shown in the figure
below:
1. Disconnect the point-to-point SCSI cable from SCSI port 2.
2. Connect the controller end of the point-to-point SCSI cable to a SCSI
connector
 on the controller board.
3. Connect the other end of the point-to-point SCSI cable to the backplane
of the hot-plug drive
 .
1
2

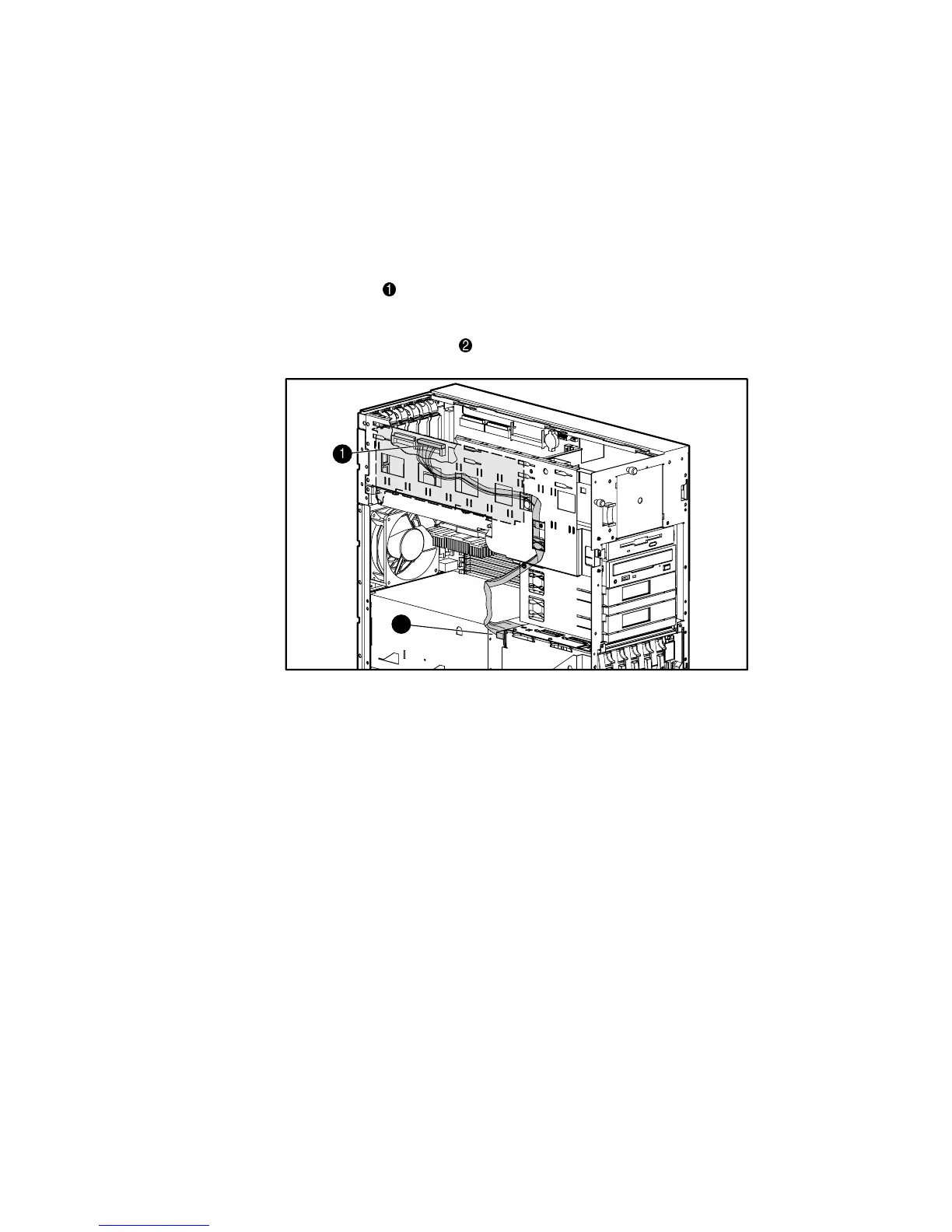

Figure 5-4. Connecting a controller board to the hot-plug drive cage

Compaq PROLIANT ML370 Specifications

General

Brand	Compaq
Model	PROLIANT ML370
Category	Server
Language	English
