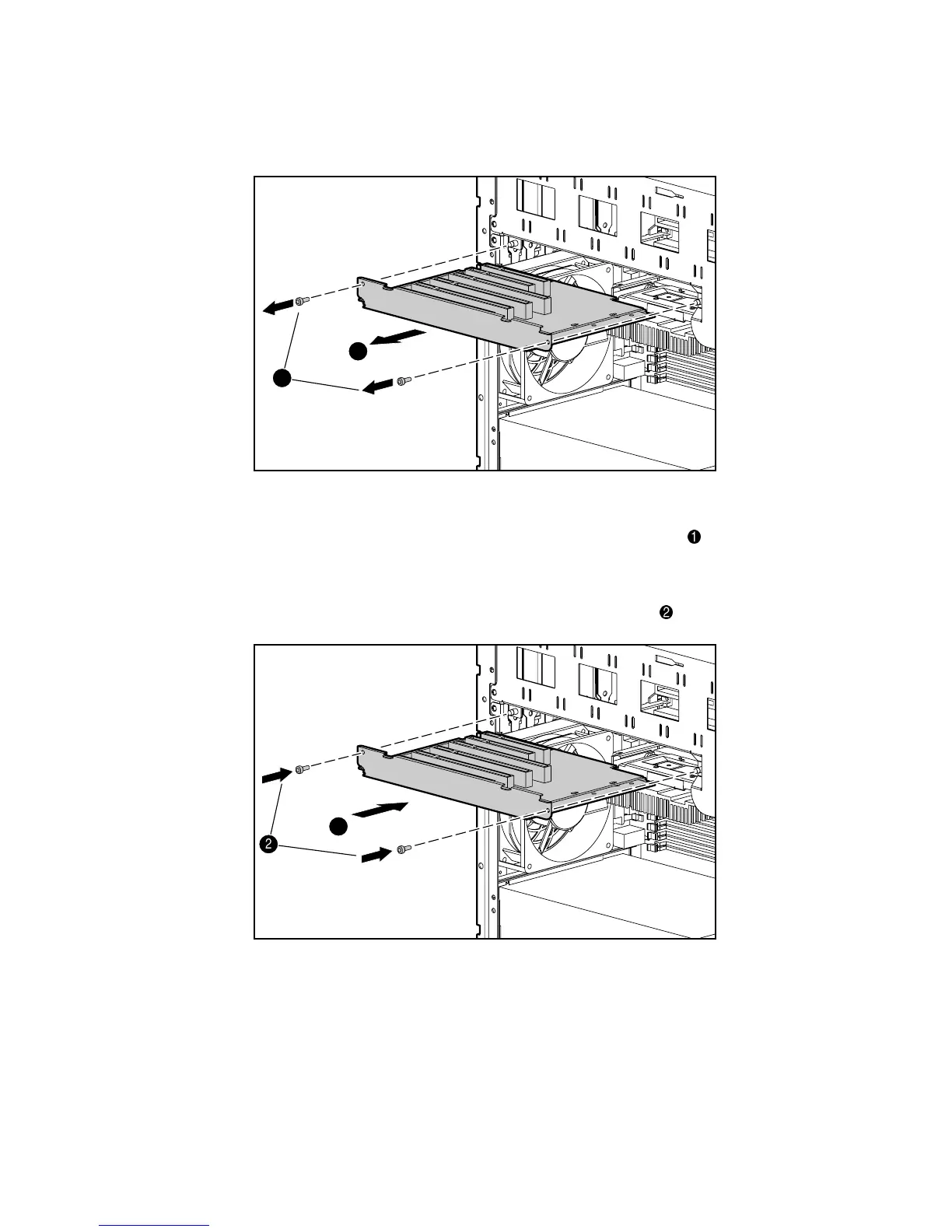

Figure 4-25. Removing the riser board and brace assembly
7. Install the new riser board and riser board brace assembly  by aligning
the contact end of the riser board with the riser board slot on the system
board and pressing until the board fits snugly in the slot.
8. Replace and tighten the screws on the brace assembly  .
2
1
Figure 4-26. Installing the riser board and riser board brace
9. Replace all expansion boards.
10. Replace the server access cover.
