xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
106

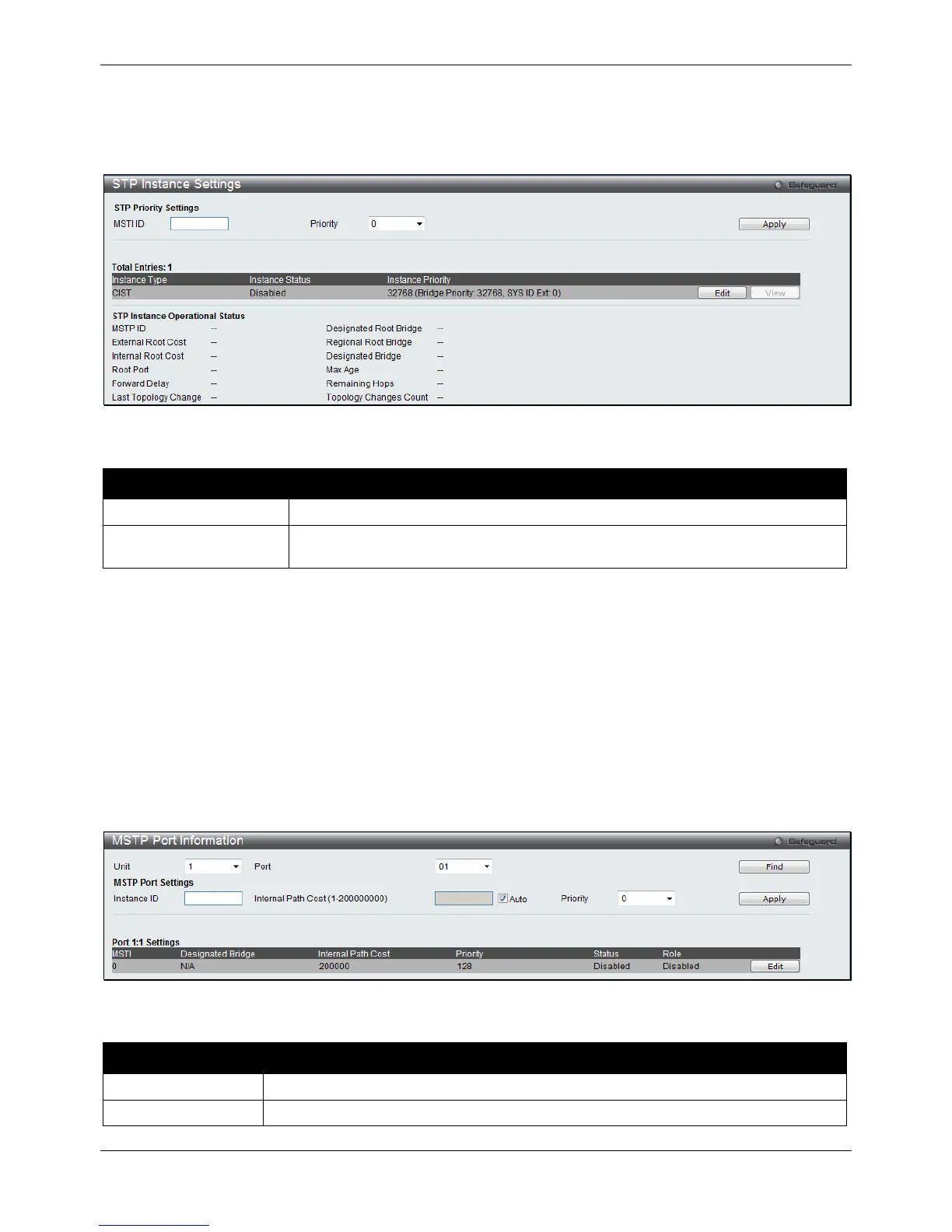

STP Instance Settings
This window displays MSTIs currently set on the Switch and allows users to change the Priority of the MSTIs.
To view the following window, click L2 Features > Spanning Tree > STP Instance Settings, as shown below:
Figure 4-38STP Instance Settings window
The fields that can be configured are described below:
Parameter Description
Click the Apply button to accept the changes made.
Click the Edit button to re-configure the specific entry.
Click the View button to display the information of the specific entry.
MSTP Port Information
This window displays the current MSTI configuration information and can be used to update the port configuration
for an MSTI ID. If a loop occurs, the MSTP function will use the port priority to select an interface to put into the
forwarding state. Set a higher priority value for interfaces to be selected for forwarding first. In instances where the
priority value is identical, the MSTP function will implement the lowest MAC address into the forwarding state and
other interfaces will be blocked. Remember that lower priority values mean higher priorities for forwarding packets.
To view the following window, click L2 Features > Spanning Tree > MSTP Port Information, as shown below:
Figure 4-39 MSTP Port Information window
The fields that can be configured are described below:
Parameter Description
