Multicast Filtering
IPv4 Multicast Filtering
IPv4 Multicast Profile Settings
Users can add a profile to which multicast address(s) reports are to be received on specified ports on the Switch.
This function will therefore limit the number of reports received and the number of multicast groups configured on
the Switch. The user may set an IPv4 Multicast address or range of IPv4 Multicast addresses to accept reports
(Permit) or deny reports (Deny) coming into the specified switch ports.
To view the following window, click L2 Features > Multicast Filtering > IPv4 Multicast Filtering > IPv4 Multicast
Profile Settings, as shown below:

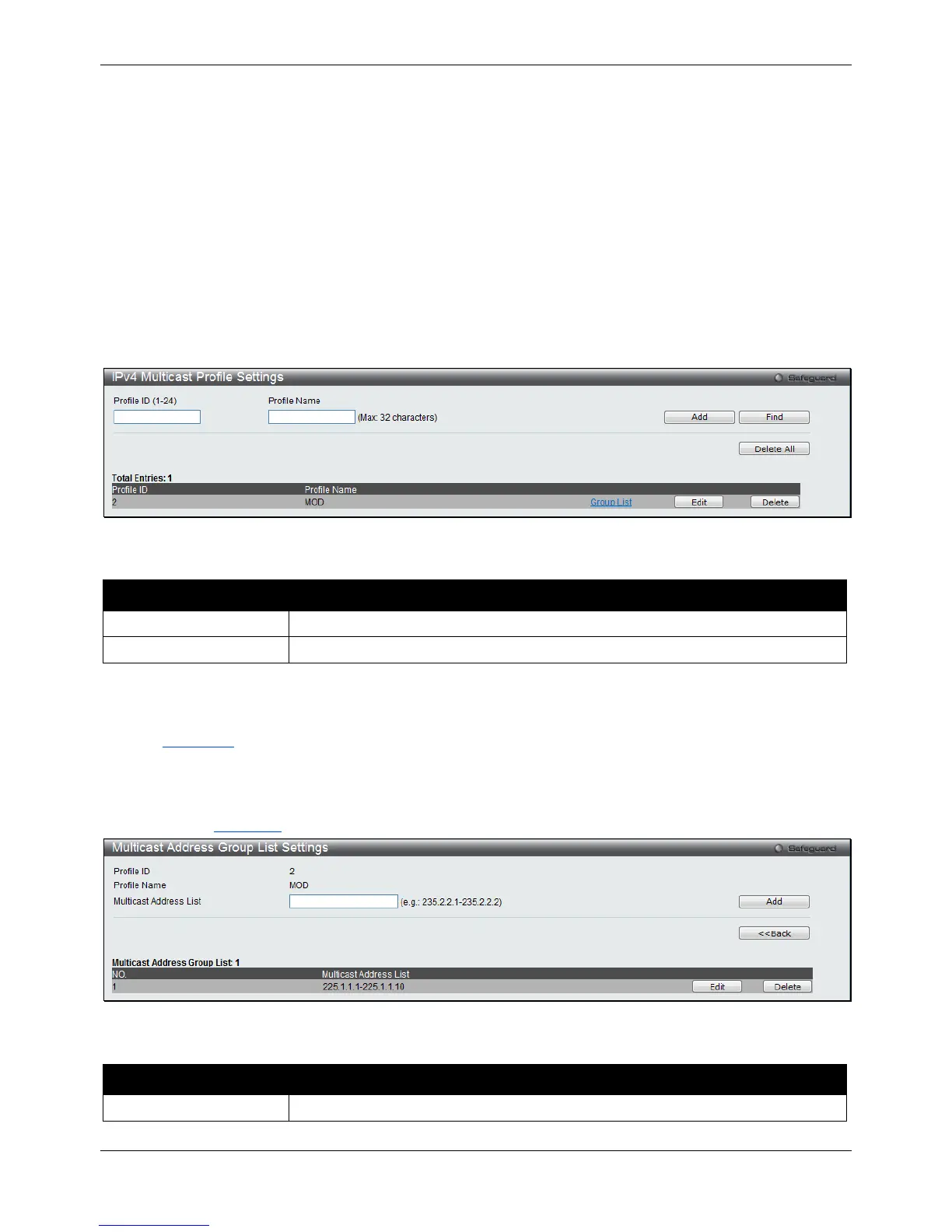

Figure 4-98 IPv4 Multicast Profile Settings window
The fields that can be configured are described below:
Parameter Description
Enter a Profile ID between 1 and 24.
Enter a name for the IP Multicast Profile.
Click the Add button to add a new entry based on the information entered.
Click the Find button to locate a specific entry based on the information entered.
Click the Delete All button to remove all the entries listed.
Click the Group List link to configure the multicast address group list settings for the specific entry.
Click the Edit button to re-configure the specific entry.
Click the Delete button to remove the specific entry.
After clicking the Group List link, the following window will appear:
Figure 4-99 Multicast Address Group List Settings window
The fields that can be configured are described below:
Parameter Description
Enter the multicast address list.
Click the Add button to add a new entry based on the information entered.
