D-Link xStack DGS-3120 Series Reference Guide

xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
219

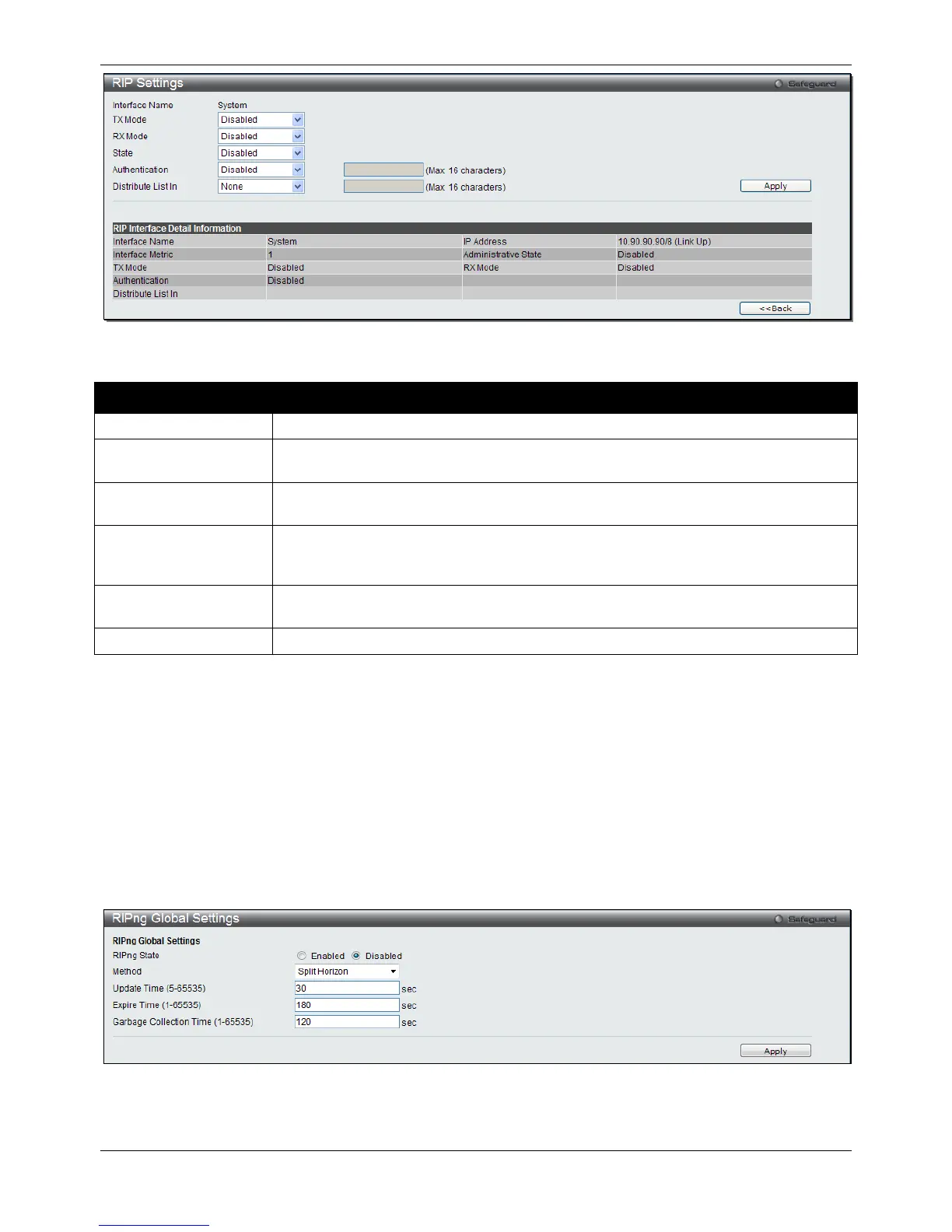

Figure 5-89 RIP Settings – Edit window
The fields that can be configured are described below:
Parameter Description
Interface Name
Specifies the IP interface name used for this configuration.
TX Mode Specifies the RIP transmission mode. Options to choose from are v1 Only, v1
Compatible and v2 Only. Select Disable to disable this option.
RX Mode Specifies the RIP receive mode Options to choose from are v1 Only, v2 Only and v1
or v2. Select Disable to disable this option.
State
Specifies that the RIP state will be enabled or disabled. If the state is disabled, then RIP
packets will not be either transmitted or received by the interface. The network
configured on this interface will not be in the RIP database.
Authentication
Specifies to set the state of authentication. When the authentication state is enabled,
enter the password used in the space provided.
Distribute List In
Specify the inbound route filter on RIP interface.
Click the Apply button to accept the changes made.
Click on the <<Back button to return to the previous window.
RIPng
RIPng Global Settings
This window is used to configure the RIPng global settings.
To view the following window, click L3 Features > RIP > RIPng > RIPng Global Settings, as shown below:
Figure 5-90 RIPng Global Settings window
The fields that can be configured are described below:

D-Link xStack DGS-3120 Series Specifications

General

MAC Address Table	16K entries
Ports	10/100/1000BASE-T ports
VLANs	4094
Jumbo Frame	Up to 9KB
Power Supply	Internal power supply (depending on model)
Power over Ethernet (PoE)	No
Layer 3 Features	RIP
Quality of Service (QoS)	8 queues per port, DiffServ
Security Features	ACLs
Management	Web-based, CLI, SNMP
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
SFP Ports	Combo 10/100/1000BASE-T/SFP ports and/or dedicated SFP/SFP+ ports (depending on model)
