To view the following window, click L2 Features > L2 Multicast Control > MLD Snooping > MLD Snooping
Forwarding Table, as shown below:

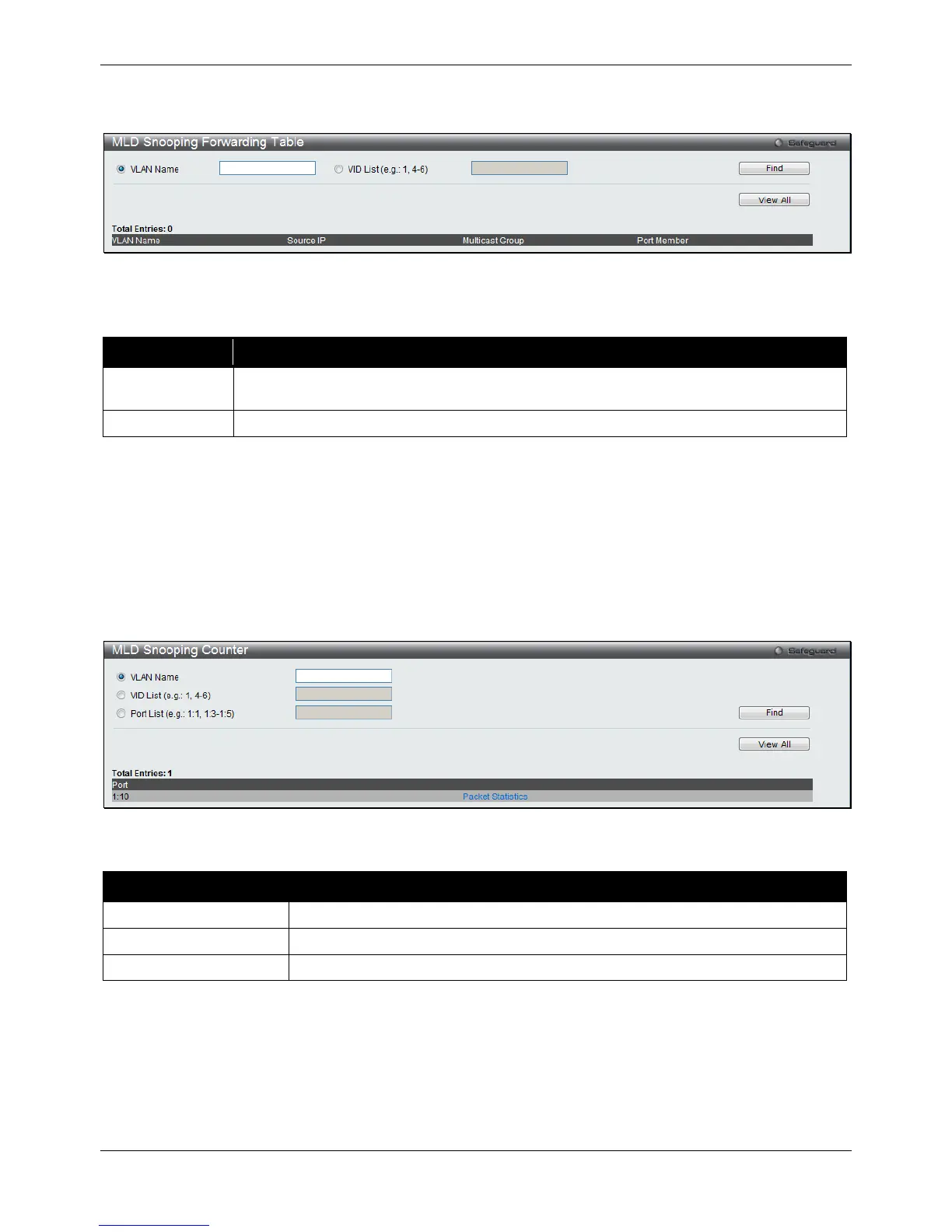

Figure 4-85 MLD Snooping Forwarding Table window
The fields that can be configured are described below:
Parameter Description
VLAN Name
The name of the VLAN for which you want to view MLD snooping forwarding table
The ID of the VLAN for which you want to view MLD snooping forwarding table information.
Click the Find button to locate a specific entry based on the information entered.
Click the View All button to display all the existing entries.
MLD Snooping Counter
This window displays the statistics counter for MLD protocol packets that are received by the switch since MLD
Snooping is enabled.
To view the following window, click L2 Features > L2 Multicast Control > MLD Snooping > MLD Snooping
Counter, as shown below:
Figure 4-86 MLD Snooping Counter window
The fields that can be configured are described below:
Parameter Description
Specify a VLAN name to be displayed.
Specify a list of VLANs to be displayed.
Specify a list of ports to be displayed.
Click the Find button to locate a specific entry based on the information entered.
Click the View All button to display all the existing entries.
Click the Packet Statistics link to view the MLD Snooping Counter Settings for the specific entry.
After clicking the Packet Statistics link, the following window will appear:
