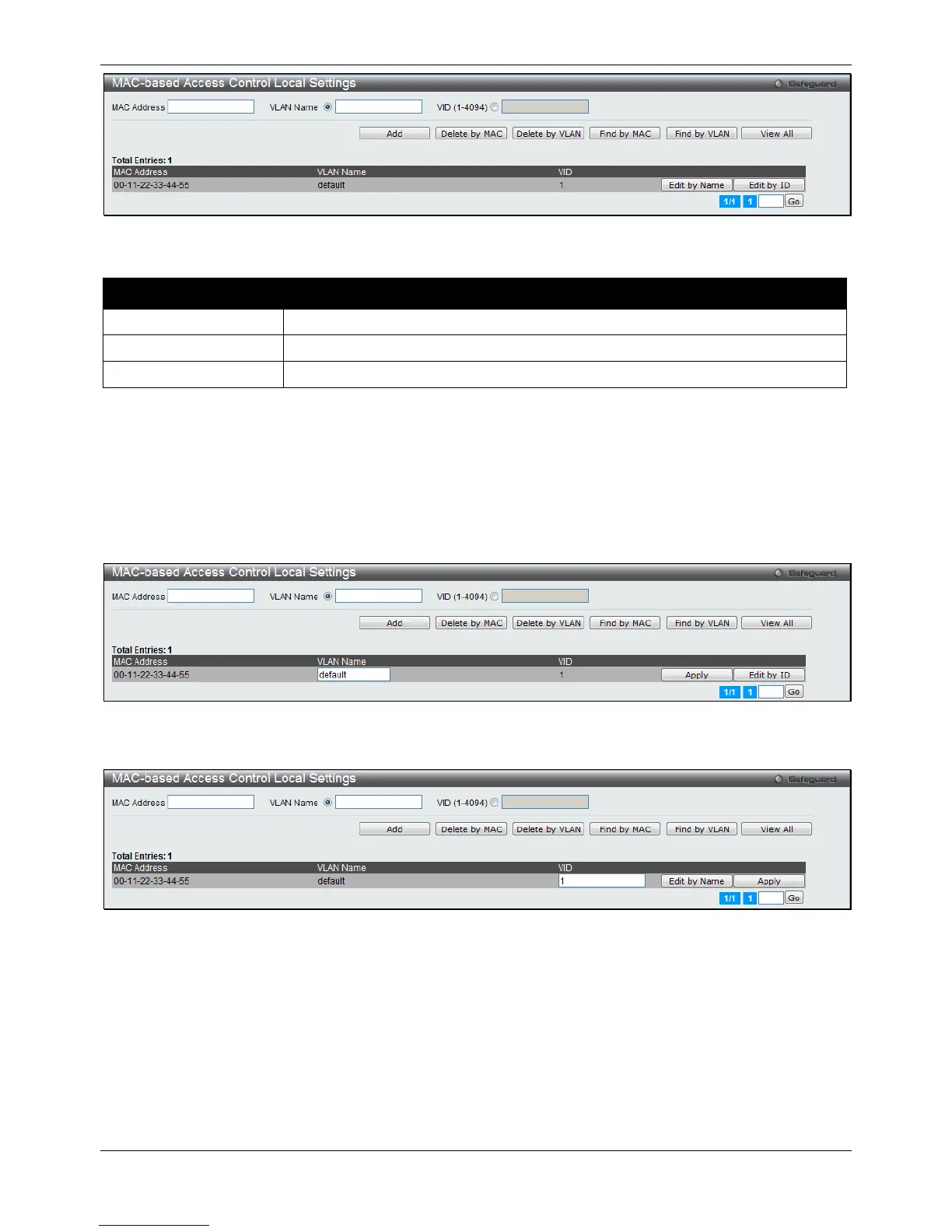

Figure 8-36 MAC-based Access Control Local Settings window
The fields that can be configured are described below:
Parameter Description
MAC address
Enter the MAC address that will be added to the local authentication list here.
VLAN Name
Enter the VLAN name of the corresponding MAC address here.
VID (1-4094)
Enter the VLAN ID of the corresponding MAC address here.
Click the Add button to add a new entry based on the information entered.
Click the Delete by MAC button to remove the specific entry based on the MAC address entered.
Click the Delete by VLAN button to remove the specific entry based on the VLAN name or ID entered.
Click the Find by MAC button to locate a specific entry based on the MAC address entered.
Click the Find by VLAN button to locate a specific entry based on the VLAN name or ID entered.
Click the View All button to display all the existing entries.
To change the selected MAC address’ VLAN Name, the user can click the Edit by Name button.
Figure 8-37 MAC-based Access Control Local Settings – Edit by Name window
To change the selected MAC address’ VID value, the user can click the Edit by ID button.
Figure 8-38 MAC-based Access Control Local Settings – Edit by ID window
Click the Apply button to accept the changes made.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
MAC-based Access Control Authentication State
Users can display MAC-based access control Authentication State information.
To view this window, click Security > MAC-based Access Control (MAC) > MAC-based Access Control
Authentication State as shown below:
