Multicast Static FDB Settings
Users can set up static multicast forwarding on the Switch.
To view the following window, click L2 Features > FDB > Static FDB Settings > Multicast Static FDB Settings,
as shown below:

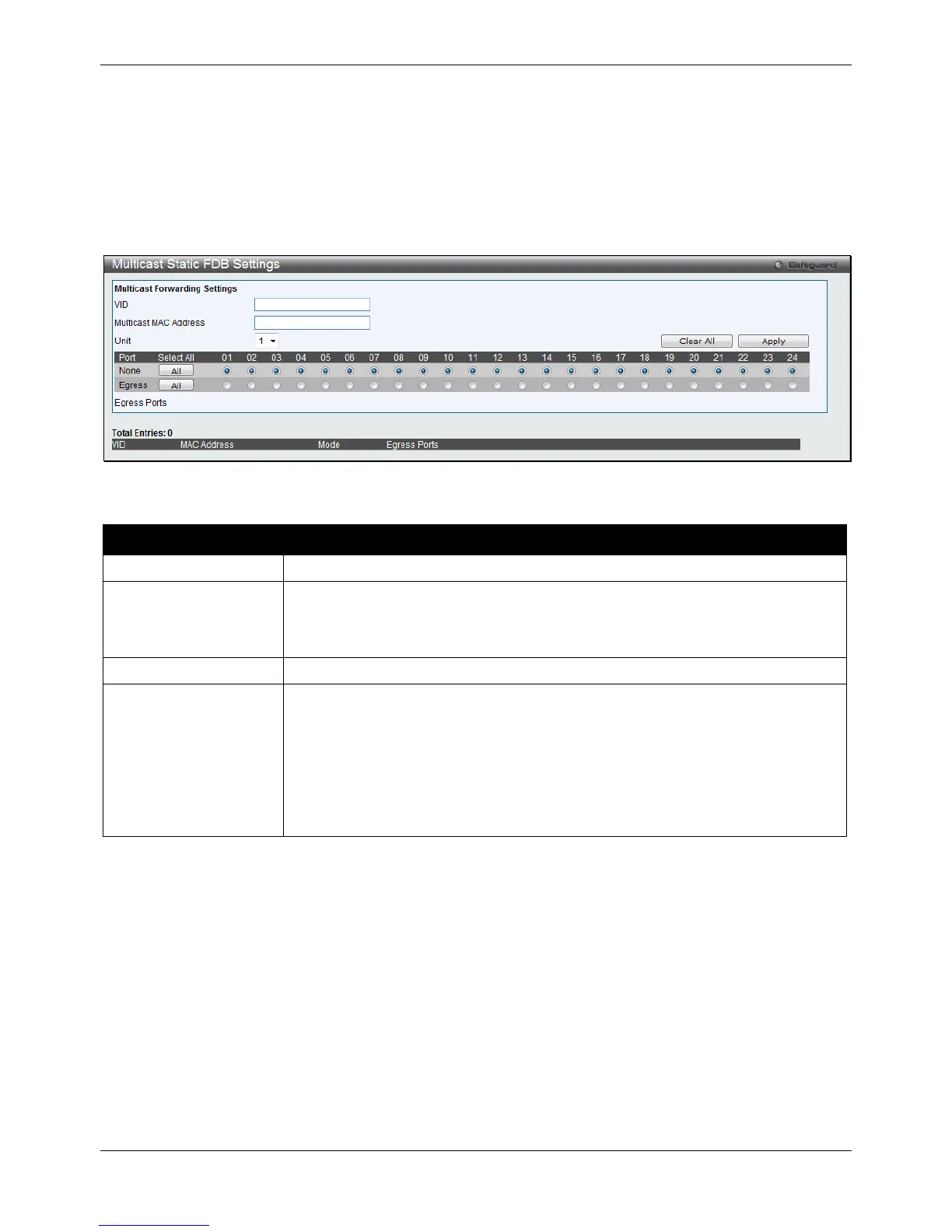

Figure 4-44 Multicast Static FDB Settings window
The fields that can be configured are described below:
Parameter Description
VID
The VLAN ID of the VLAN the corresponding MAC address belongs to.
Multicast MAC Address
Enter the multicast MAC address to be added to the static forwarding table.
Addresses in the range of 01-80-C2-XX-XX-XX are reserved for BPDU, 01-00-5E-
XX-XX-XX are reserved for IPv4 multicast MAC address, and 33-33-XX-XX-XX are
reserved for IPv6 multicast MAC address.
Unit
Select the unit you want to configure. (EI and SI Mode Only)
Port
Allows the selection of ports that will be members of the static multicast group and
ports that are either forbidden from joining dynamically, or that can join the multicast
group dynamically, using GMRP. The options are:
None - No restrictions on the port dynamically joining the multicast group. When
None is chosen, the port will not be a member of the Static Multicast Group. Click
the All button to select all the ports.
Egress - The port is a static member of the multicast group. Click the All button to
select all the ports.
Click the Clear All button to clear out all the information entered.
Click the Apply button to accept the changes made.
MAC Notification Settings
MAC Notification is used to monitor MAC addresses learned and entered into the forwarding database. This
window allows you to globally set MAC notification on the Switch. Users can set MAC notification for individual
ports on the Switch.
To view the following window, click L2 Features > FDB > MAC Notification Settings, as shown below:
