D-Link xStack DGS-3120 Series Reference Guide

xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
88
Parameter Description
Secondary VLAN Type Use the drop-down menu to select secondary VLAN type between Isolated or
Community.
Secondary VLAN Name
Enter a secondary VLAN name.
Secondary VLAN List
Enter a list of secondary VLAN ID.
Click the Add button to add a new entry based on the information entered.
Click the View Private VLAN List link to view all the private VLAN.
Click the Delete button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

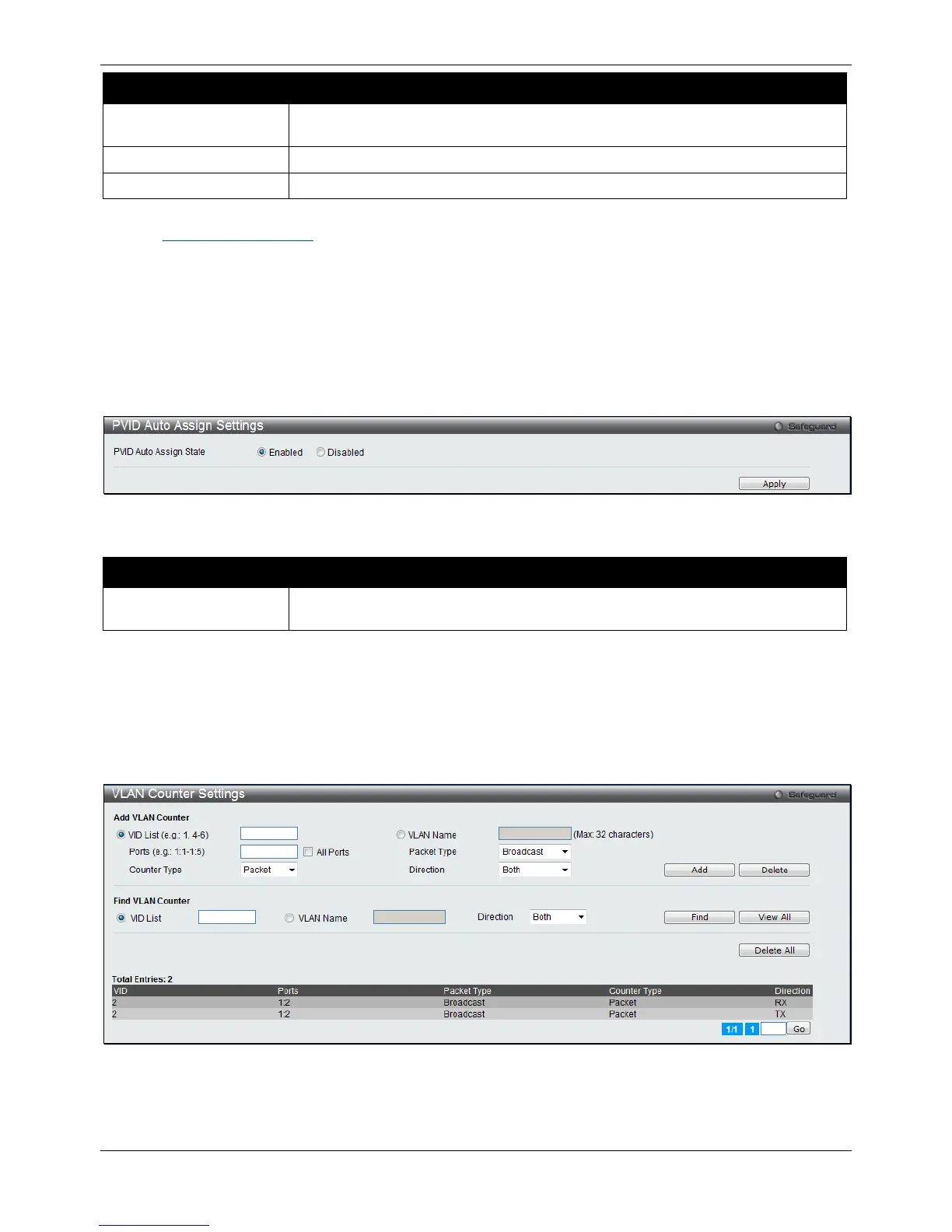

PVID Auto Assign Settings
This window is used to configure the PVID auto assign status.
To view the following window, click L2 Features > VLAN > PVID Auto Assign Settings, as shown below:
Figure 4-16 PVID Auto Assign Settings window
The fields that can be configured are described below:
Parameter Description
PVID Auto Assign State
Click to enable or disable the PVID auto assign state. The default setting is
enabled.
Click the Apply button to accept the changes made.
VLAN Counter Settings (RI and EI Mode Only)
This window is used to view and configure the control entry for VLAN traffic flow statistics.
To view the following window, click L2 Features > VLAN > VLAN Counter Settings, as shown below:
Figure 4-17 VLAN Counter Settings window
The fields that can be configured are described below:

D-Link xStack DGS-3120 Series Specifications

General

MAC Address Table	16K entries
Ports	10/100/1000BASE-T ports
VLANs	4094
Jumbo Frame	Up to 9KB
Power Supply	Internal power supply (depending on model)
Power over Ethernet (PoE)	No
Layer 3 Features	RIP
Quality of Service (QoS)	8 queues per port, DiffServ
Security Features	ACLs
Management	Web-based, CLI, SNMP
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
SFP Ports	Combo 10/100/1000BASE-T/SFP ports and/or dedicated SFP/SFP+ ports (depending on model)
