IPv4 Default Route Settings (SI Mode Only)
Entries into the Switch’s forwarding table can be made using both an IP address subnet mask and a gateway.
To view the following window, click L3 Features > IPv4 Default Route Settings, as shown below:

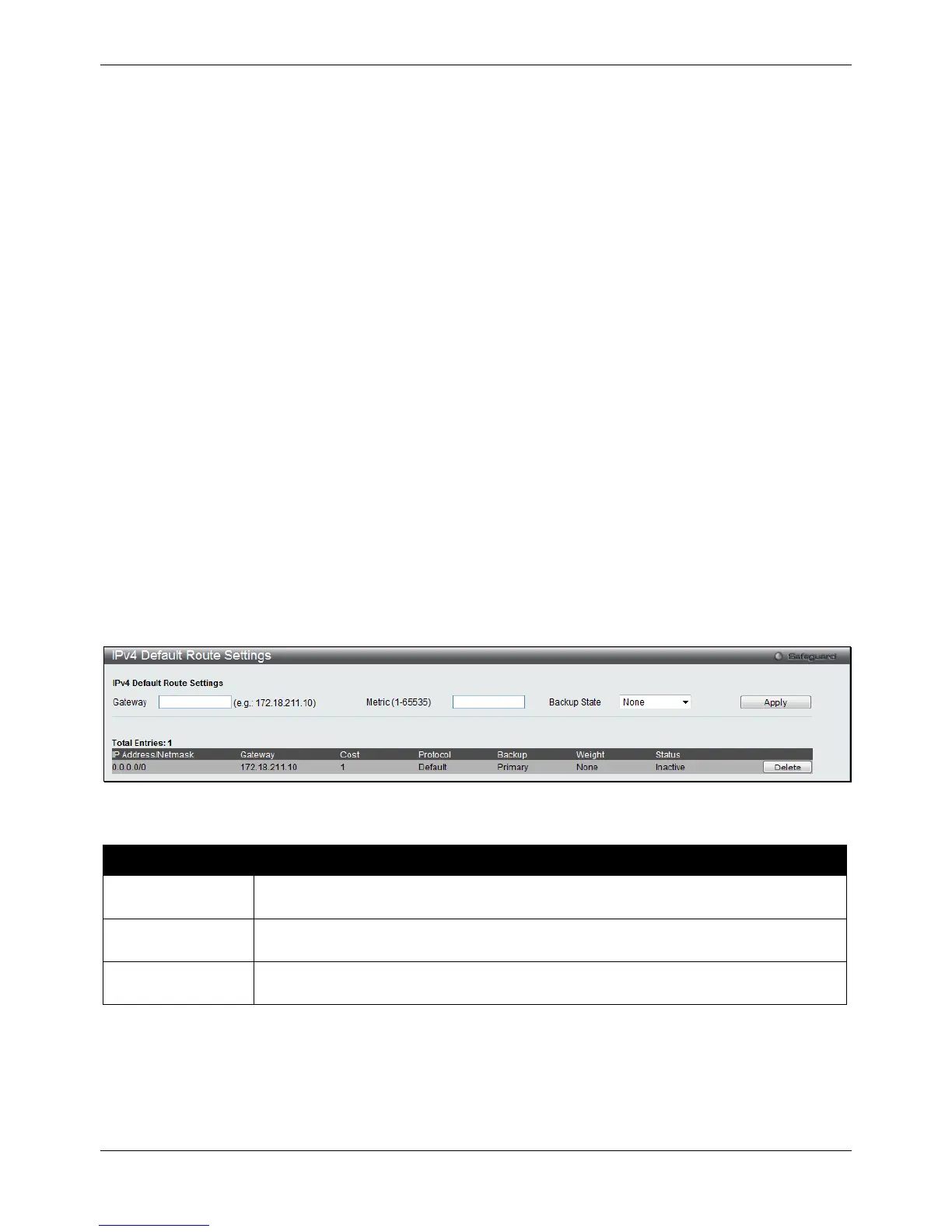

Figure 5-1 IPv4 Default Route Settings window
The fields that can be configured are described below:
Parameter Description
Gateway
This field allows the entry of a Gateway IP Address to be applied to the corresponding
gateway of the IP address.
Metric (1-65535)
Represents the metric value of the IP interface entered into the table. This field may read
a number between 1 and 65535.
Backup State
Specify the backup state of the default route created. Options to choose from are
Primary and Backup.
Click the Apply button to accept the changes made.
Click the Delete button to delete the corresponding entry.
