D-Link xStack DGS-3120 Series Reference Guide

xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
436

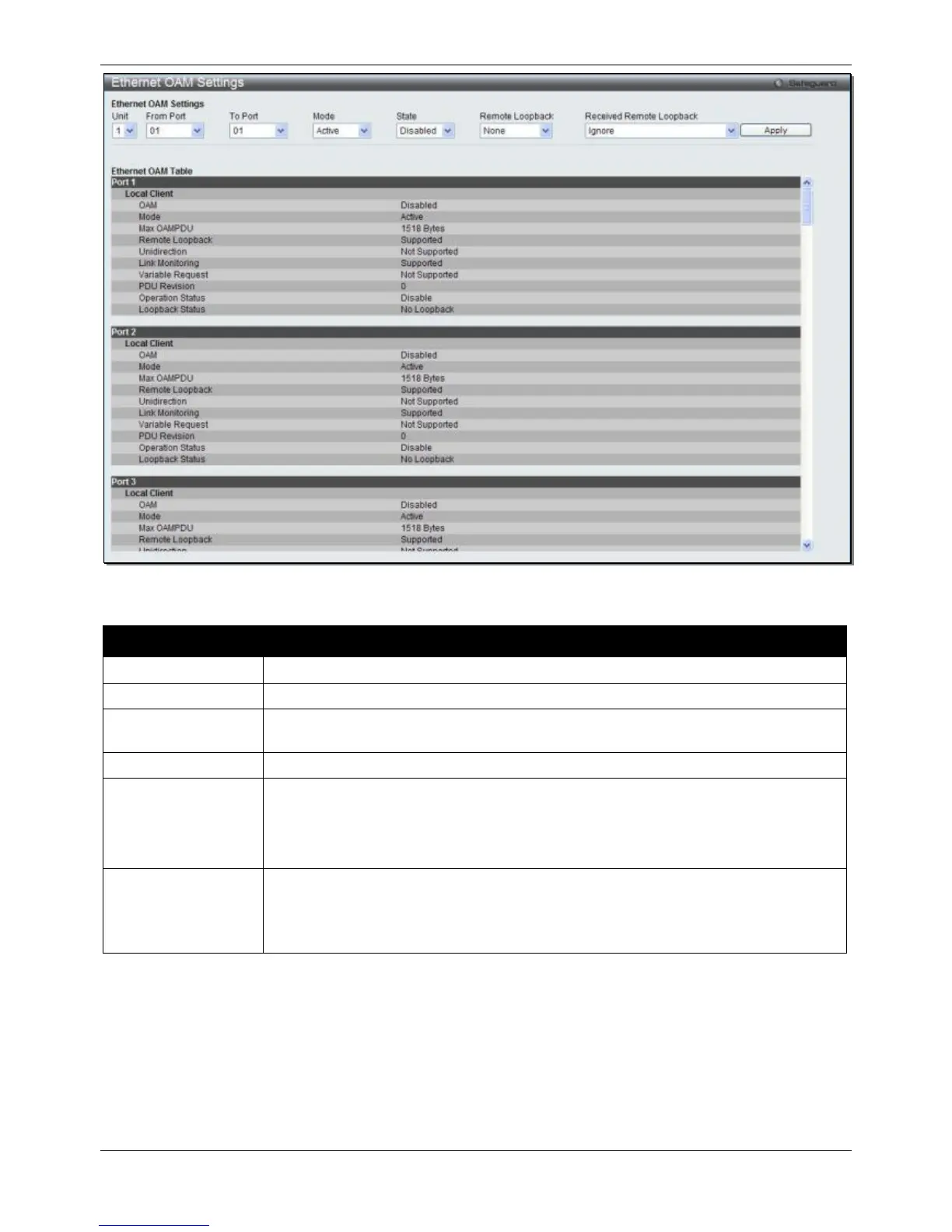

Figure 10-17 Ethernet OAM Settings window
The fields that can be configured are described below:
Parameter Description
Unit
Select the unit you want to configure. (EI Mode Only)
From Port / To Port
Select a range of ports you wish to configure.
Mode Use the drop-down menu to select to operate in either Active or Passive. The default
mode is Active.
State
Use the drop-down menu to enable or disable the OAM function.
Remote Loopback
Use the drop-down menu to select Ethernet OAM remote loopback.
None – Select to disable the remote loopback.
Start – Select to request the peer to change to the remote loopback mode.
Stop - Select to request the peer to change to the normal operation mode.
Received Remote
Loopback
Use the drop-down menu to configure the client to process or to ignore the received
Ethernet OAM remote loopback command.
Process – Select to process the received Ethernet OAM remote loopback command.
Ignore - Select to ignore the received Ethernet OAM remote loopback command.
Click the Apply button to accept the changes made.
Ethernet OAM Configuration Settings
This window is used to configure Ethernet OAM configuration settings.
To view this window, click OAM > Ethernet OAM > Ethernet OAM Configuration Settings, as shown below:

D-Link xStack DGS-3120 Series Specifications

General

MAC Address Table	16K entries
Ports	10/100/1000BASE-T ports
VLANs	4094
Jumbo Frame	Up to 9KB
Power Supply	Internal power supply (depending on model)
Power over Ethernet (PoE)	No
Layer 3 Features	RIP
Quality of Service (QoS)	8 queues per port, DiffServ
Security Features	ACLs
Management	Web-based, CLI, SNMP
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
SFP Ports	Combo 10/100/1000BASE-T/SFP ports and/or dedicated SFP/SFP+ ports (depending on model)
