MA Index
Select and enter the Maintenance Association index used.
Click the Find button to locate a specific entry based on the information entered.
CFM MP Table
To view this window, click OAM > CFM > CFM MP Table, as shown below:

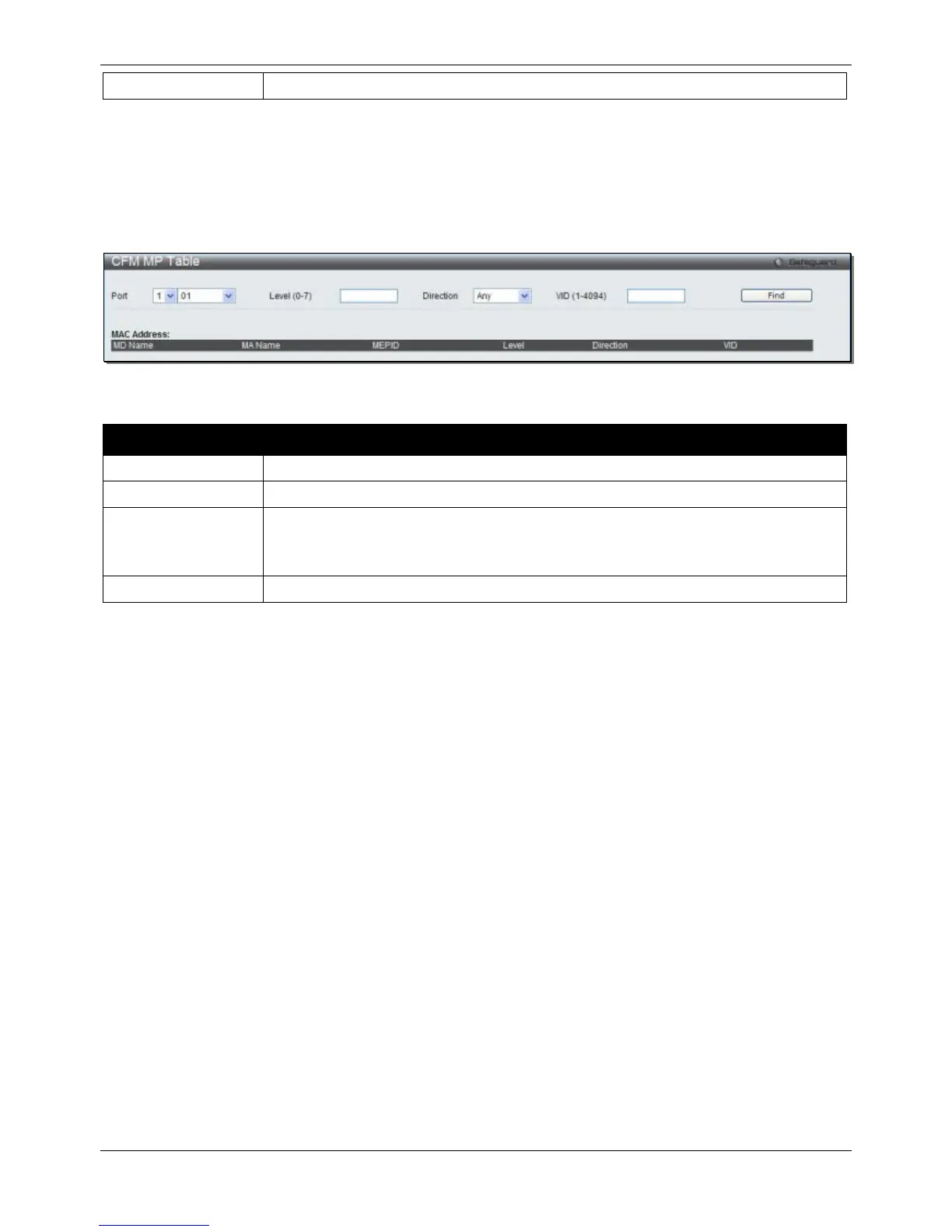

Figure 10-16 CFM MP Table Window
The fields that can be configured are described below:
Parameter Description
Port
Use the drop-down menu to select the unit ID and the port number to view.
Level (0-7)
Enter the level to view.
Direction
Use the drop-down menu to select the direction to view.
Inward - Inward facing (up) MP.
Outward - Outward facing (down) MP.
VID (1-4094)
Enter the VID to view.
Click the Find button to locate a specific entry based on the information entered.
Ethernet OAM (RI and EI Mode Only)
Ethernet OAM Settings
This window is used to configure the Ethernet OAM settings.
To view this window, click OAM > Ethernet OAM > Ethernet OAM Settings, as shown below:
